About the Devboard PCB

Devboard is an open source RP2040/RP2350 PCB design by Coder1203, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 35 components from 17 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS and MCP1700X-330XXTT. By type, the board carries 17 capacitors, 8 resistors, 4 connectors, 3 ICs, 2 switches and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Custom Devboard for Hackclub

A small RP2040 devboard I made before trying to build an e-ink reader.

I wanted to create an e-ink reader, but turns out it's pretty hard, so I'll start with a devboard. I just built a Macropad few days ago so I thought how hard can it be. Oh boy, I was wrong.

I was following the blueprint guide, and was overwhelmed, so it took me a lot of time to understand everything. Whenever I didn't know something I googled it. I just wanted a good foundation so that I can build the E-ink reader next on my own.

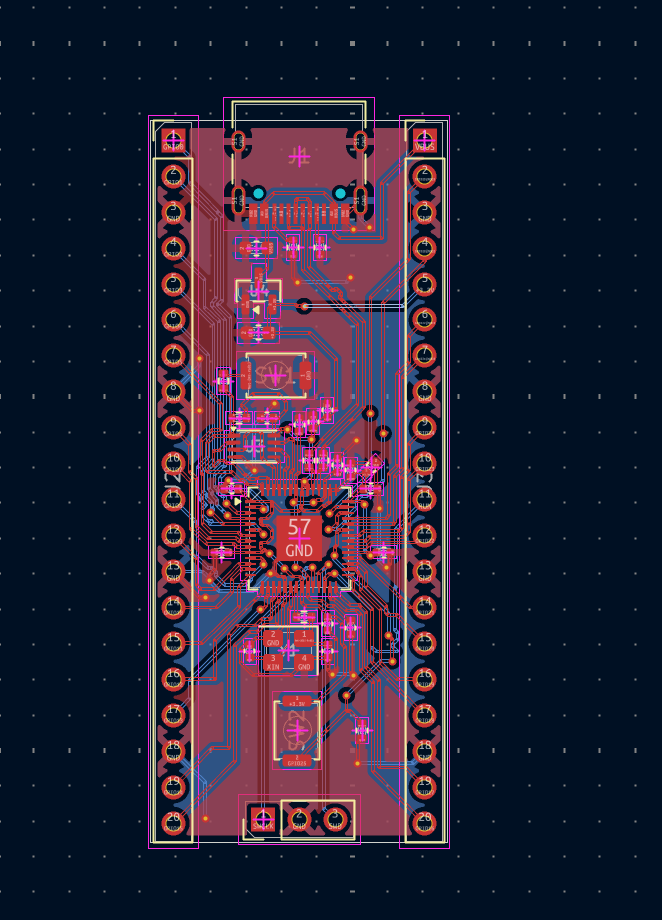

Devboard, from the project README — From the project README

Main components on the Devboard

RP2040 W25Q128JVS MCP1700X-330XXTT

Devboard bill of materials (BOM)

35 components, 17 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	W25Q128JVS	Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm	U3
1	MCP1700X-330XXTT MCP1700x-330xxTT	SOT-23	U4
1	12MHZ 12MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	USB_C_RECEPTACLE_USB2.0_14P USB_C_Receptacle_USB2.0_14P	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
2	CONN_01X20 Conn_01x20	PinHeader_1x20_P2.54mm_Vertical	J2, J3
1	CONN_01X03 Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J4
2	SW_Push	SW_Push_SPST_NO_Alps_SKRK	SW1, SW2
2	1UF 1uF	C_0402_1005Metric	C1, C10
8	0.1uF	C_0402_1005Metric	C2, C3, C4, C5, C6, C7, C8, C9
3	0.1UF 0.1uF	C_0402_1005Metric	C11, C12, C17
2	10UF 10uF	C_0603_1608Metric	C13, C14
2	33PF 33pF	C_0402_1005Metric	C15, C16
2	5.1K	R_0402_1005Metric	R1, R2
2	27	R_0402_1005Metric	R3, R4
2	1K	R_0402_1005Metric	R5, R7
2	10K	R_0402_1005Metric	R6, R8

Devboard design files

The KiCad project lives in the Coder1203/Devboard repository on GitHub; these links point at the commit this page was built from.

Devboard: common questions

What microcontroller does the Devboard use?

The Devboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Devboard PCB?

The Devboard measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Devboard?

35 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Devboard design files?

From the Coder1203/Devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Devboard design in my own project?

The repository has no license, so all rights stay with Coder1203. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
