About the XOSERA RCBUS PCB
XOSERA RCBUS is an open source PCB design by codesmythe, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 101.6 × 55.9 mm, with 48 components from 26 distinct parts.
Other key parts include the 74LS08, SN74LVC245, 74LS02, 74LS74 and 74LS138. By type, the board carries 17 resistors, 12 capacitors, 10 connectors, 7 ICs, 1 transistor and 1 diode.
It belongs with the retro computing designs in this gallery.
From the project

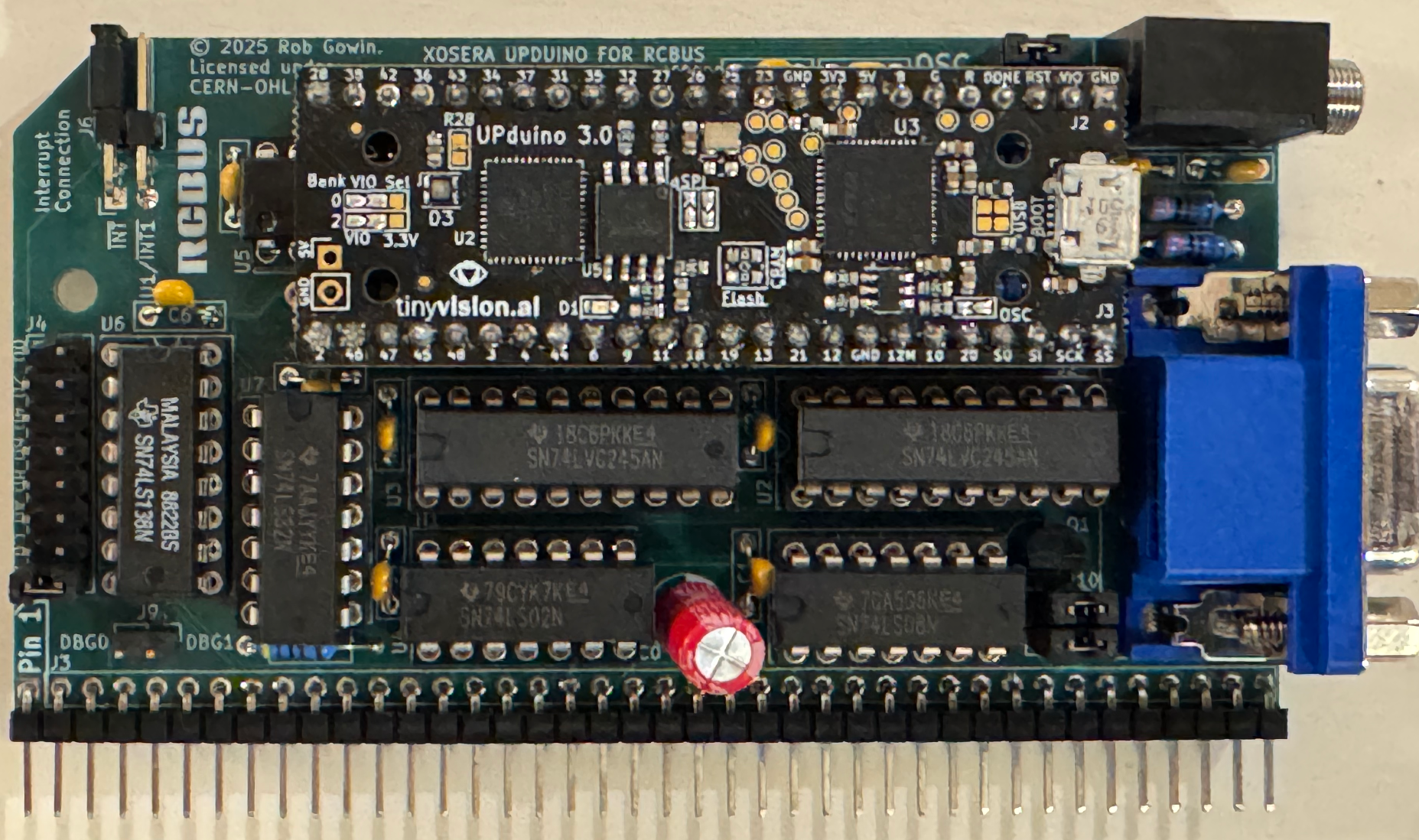

A 40-pin RCBus module to host the Xosera FPGA-based retro graphics adapter
Xosera is an FPGA based "retro" graphics adapter created by @Xark. Check out the link to see all of its features (which are summarized in the image below). Xosera was originally designed for the rosco_m68k single board computer and the bus interface for that board. But, Xosera features a simple 8-bit data bus with a few control signals. So, this project is a "port" of Xosera to the RCBus bus interface.

Main components on the XOSERA RCBUS
XOSERA RCBUS bill of materials (BOM)
48 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS08 | DIP-14_W7.62mm_Socket_LongPads | U1 |
| 2 | SN74LVC245 | DIP-20_W7.62mm_Socket_LongPads | U2, U3 |
| 1 | 74LS02 | DIP-14_W7.62mm_Socket_LongPads | U4 |
| 1 | 74LS74 | DIP-14_W7.62mm_Socket_LongPads | U5 |
| 1 | 74LS138 | DIP-16_W7.62mm_Socket_LongPads | U6 |
| 1 | 74LS32 | DIP-14_W7.62mm_Socket_LongPads | U7 |
| 1 | 2N7000 | TO-92_HandSolder | Q1 |
| 2 | Conn_01x24_Socket | PinSocket_1x24_P2.54mm_Vertical | J1, J2 |
| 1 | Conn_01x40_Pin | PinHeader_1x40_P2.54mm_Vertical | J3 |
| 1 | Conn_02x08_Odd_Even | PinHeader_2x08_P2.54mm_Vertical | J4 |
| 1 | DE15_Receptacle_HighDensity_MountingHoles | DSUB-15-Female_Right_Angle_VGA | J5 |
| 1 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Horizontal | J6 |
| 2 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J8, J9 |
| 1 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical | J10 |
| 1 | AudioJack3 | Jack_3.5mm_CUI_SJ1-3533NG_Horizontal | J11 |
| 1 | 1N5817 | D_DO-41_SOD81_P10.16mm_Horizontal | D1 |
| 1 | 47uF | CP_Radial_D6.3mm_P2.50mm | C0 |
| 9 | 0.1uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C1, C2, C3, C4, C5, C6, C7, C8 +1 |
| 2 | 4700pF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C10, C11 |
| 3 | 470 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4, R5, R6 |
| 3 | 2.2K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7, R8, R9 |
| 2 | 47 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R10, R11 |
| 3 | 4.7K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R12, R13, R14 |
| 2 | 3300 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R15, R16 |
| 1 | 4700 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R17 |
XOSERA RCBUS design files
The KiCad project lives in the codesmythe/XOSERA_RCBUS repository on GitHub; these links point at the commit this page was built from.
- LayoutXOSERA_RCBUS.kicad_pcb
- SchematicXOSERA_RCBUS.kicad_sch
XOSERA RCBUS: common questions
How big is the XOSERA RCBUS PCB?
The XOSERA RCBUS measures 101.6 × 55.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the XOSERA RCBUS?
48 components, from 26 distinct parts. The full bill of materials is listed on this page.
Where can I download the XOSERA RCBUS design files?
From the codesmythe/XOSERA_RCBUS repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the XOSERA RCBUS design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
