ProtogenControllerV1 PCB layout, top view — open source ESP32 board by coelacant1

About the ProtogenControllerV1 PCB

ProtogenControllerV1 is an open source ESP32 PCB design by coelacant1, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 65 × 52 mm, with 59 components from 18 distinct parts.

Its main chip is the ESP32-WROVER-B_(16MB), from the ESP32 family. Other key parts include the Teensy 4.0, AP2112K-3.3TRG1, CP2104-F03-GM and SN74HCT245DWR. By type, the board carries 18 resistors, 12 connectors, 8 capacitors, 5 ICs, 4 transistors and 3 LEDs.

It belongs with the dev boards & breakouts, iot & wireless and usb & debug tools designs in this gallery.

From the project

SmartMatrix SmartLED Shield breakout for Protogen hardware

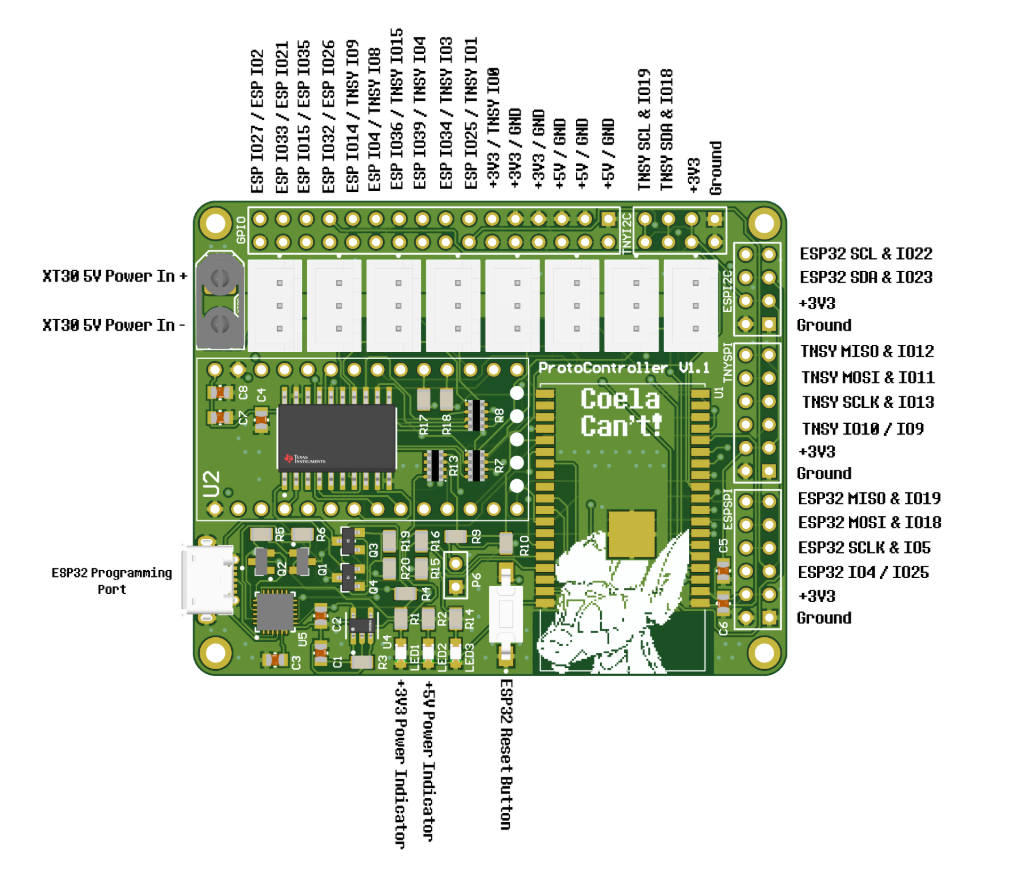

ProtogenControllerV1, from the project README
From the project README

Main components on the ProtogenControllerV1

ESP32-WROVER-B_(16MB)Teensy 4.0AP2112K-3.3TRG1CP2104-F03-GMSN74HCT245DWR

ProtogenControllerV1 bill of materials (BOM)

59 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROVER-B_(16MB)
U1
1
Teensy 4.0
U2
1
AP2112K-3.3TRG1
U4
1
CP2104-F03-GM
U5
1
SN74HCT245DWR
U6
2
MMBT2222ALT1G
Q1, Q2
1
FDN339AN
Q3
1
FDN340P
Q4
8
B3B-XH-A(LF)(SN)
J1_JSTBreakout1, J1_JSTBreakout2, J1_JSTBreakout3, J1_JSTBreakout4, J1_JSTBreakout5, J1_JSTBreakout6, J1_JSTBreakout7, J1_JSTBreakout8
1
XT30-F
J2
2
Header 4X2
P2, P3
1
Header 2
P6
8
CC0805KKX7R6BB105
DC1, DC2, DC3, DC4, DC5, DC6, DC7, DC8
1
FSMSMTR
SW1
3
150080SS75000
LED1, LED2, LED3
8
CC0805KKX7R6BB105
C1, C2, C3, C4, C5, C6, C7, C8
15
CRCW08050000Z0EA
R1, R2, R3, R4, R5, R6, R9, R10 +7
3
CAT16-103J4LF
R7, R8, R13

ProtogenControllerV1 design files

The KiCad project lives in the coelacant1/Protogen-Electronics repository on GitHub; these links point at the commit this page was built from.

ProtogenControllerV1: common questions

What microcontroller does the ProtogenControllerV1 use?

The ProtogenControllerV1 is built around the ESP32-WROVER-B_(16MB), from the ESP32 family.

How big is the ProtogenControllerV1 PCB?

The ProtogenControllerV1 measures 65 × 52 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ProtogenControllerV1?

59 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ProtogenControllerV1 design files?

From the coelacant1/Protogen-Electronics repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ProtogenControllerV1 design in my own project?

Yes, under the terms of its GPL-3.0 license, which coelacant1 chose for the repository.

Can I test firmware for the ProtogenControllerV1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
