Diego 500 3 slot
CRG-Glen·DIEGO-500·KICAD/3-SLOT/Diego 500 3 slot.kicad_pcb
About the Diego 500 3 slot PCB
Diego 500 3 slot is an open source PCB design by CRG-Glen, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 155 × 140 mm, with 126 components from 42 distinct parts.
Other key parts include the C90569, 74ALS245, 74LS245, 74LS32 and MAX16054AZT_T. By type, the board carries 52 resistors, 32 capacitors, 24 connectors, 13 ICs, 2 diodes and 1 transistor.
From the project

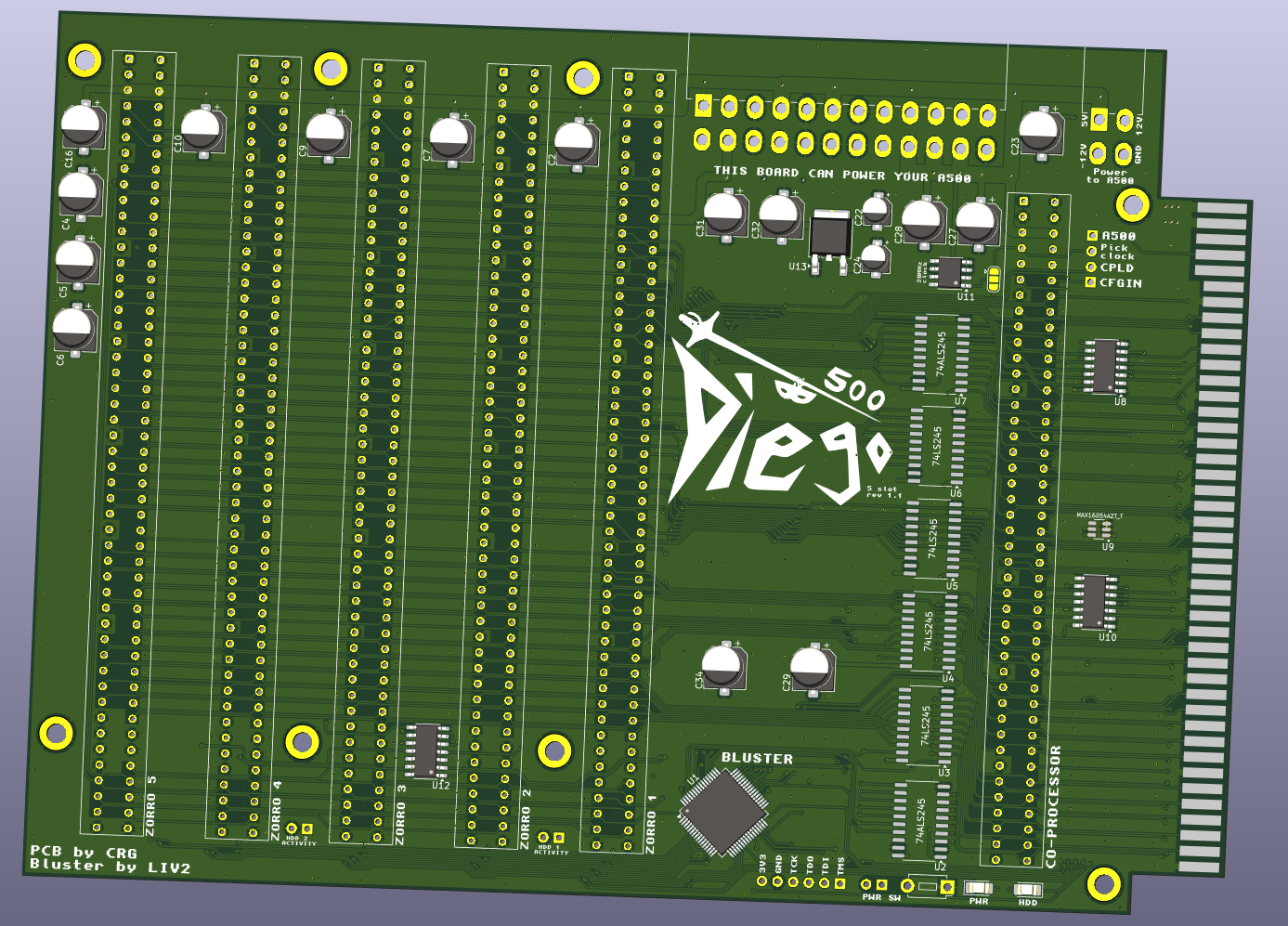

Turn your A500 into an A2000
Turn your A500 into an A2000 with this sidecar backplane CHECKMATE VERSION NOT YET TESTED - DO NOT BUILD
DIEGO is a Zorro 2 backplane expansion for use on your A500 either as a side car project or within your Checkmate case. Diego gives you an A2000 compatible CO-PROCESSOR slot (side car version only) along with a full set of 5 ZORRO2 slots all made possible by the onboard Bluster IC. Bluster is a remake of the classic A2000 Buster chip by LIV2 although it is a custom version for DIEGO to handle inverted clocks and provide some further functions.

Main components on the Diego 500 3 slot
Diego 500 3 slot bill of materials (BOM)
126 components, 42 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C90569 BLUSTER | TQFP-64_10x10mm_P0.5mm | U1 |
| 2 | 74ALS245 | SO-20_5.3x12.6mm_P1.27mm | U2, U7 |
| 4 | 74LS245 | SO-20_5.3x12.6mm_P1.27mm | U3, U4, U5, U6 |
| 2 | 74LS32 | SO-14_3.9x8.65mm_P1.27mm | U8, U12 |
| 1 | MAX16054AZT_T | SOT95P275X110-6N | U9 |
| 1 | 74LS08 | SO-14_3.9x8.65mm_P1.27mm | U10 |
| 1 | 501MLFT | SOIC-8_3.9x4.9mm_P1.27mm | U11 |
| 1 | MC79M05 | TO-252-2 | U13 |
| 1 | S8050 | SOT-23 | Q1 |
| 1 | C5173317 A500 side car | A500_SIDE_CONNECTOR | CN1 |
| 1 | C5173320 Zorro 1 | Samtec_HLE-150-02-xx-DV-TE_2x50_P2.54mm_Horizontal | CN2 |
| 1 | C5173320 Zorro 2 | Samtec_HLE-150-02-xx-DV-TE_2x50_P2.54mm_Horizontal | CN3 |
| 1 | C5173320 Zorro 3 | Samtec_HLE-150-02-xx-DV-TE_2x50_P2.54mm_Horizontal | CN4 |
| 11 | 1000PF 1000pf | R_Array_Convex_4x0603 | CN7, CN8, CN9, CN10, CN11, CN12, CN13, CN14 +3 |
| 1 | CONN_01X03_PIN Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | A2000_CPUSLOT_EDGE_LOGICAL | Samtec_HLE-150-02-xx-DV-TE_2x43_P2.54mm_Horizontal | J2 |
| 1 | HDD 2 | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | HDD 1 | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | ATX-24 | Molex_Mini-Fit_Jr_5569-24A2_2x12_P4.20mm_Horizontal | J6 |
Show 22 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Buster | PinHeader_1x06_P2.54mm_Vertical | J7 |
| 1 | Power to A500 | Molex_Mini-Fit_Jr_5569-04A2_2x02_P4.20mm_Horizontal | J8 |
| 1 | CONN_01X01_PIN Conn_01x01_Pin | PinHeader_1x01_P2.54mm_Vertical | J9 |
| 1 | SW_Push | SW_PUSH_1P1T_6x3.5mm_H4.3_APEM_MJTP1243 | SW1 |
| 2 | LED | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1, D2 |
| 1 | C15957 FerriteBead_Small | D_0805_2012Metric | FB1 |
| 11 | 0.1UF 0.1uf | C_0805_2012Metric | C1, C3, C8, C11, C12, C13, C14, C15 +3 |
| 7 | 220UF 220uF | CP_Elec_6.3x7.7 | C2, C4, C5, C6, C7, C9, C34 |
| 4 | 0.1UF 0.1uf | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C18, C19, C20, C21 |
| 2 | 1UF 1uF | CP_Elec_4x5.4 | C22, C24 |
| 6 | 47UF 47uF | CP_Elec_6.3x7.7 | C23, C27, C28, C29, C31, C32 |
| 2 | 100PF 100pf | C_0805_2012Metric | C25, C26 |
| 14 | 1k | R_0805_2012Metric | R1, R2, R5, R6, R14, R17, R24, R27 +6 |
| 1 | 33 | R_0805_2012Metric | R3 |
| 3 | 47 | R_0805_2012Metric | R4, R16, R23 |
| 4 | 4.7K 4.7k | R_0805_2012Metric | R7, R9, R25, R26 |
| 1 | 3.3K 3.3k | R_0805_2012Metric | R10 |
| 8 | 10K 10k | R_0805_2012Metric | R11, R12, R13, R18, R19, R20, R21, R22 |
| 1 | 680 | R_0805_2012Metric | R15 |
| 15 | 1k | R_Array_Convex_4x0603 | RN1, RN2, RN8, RN9, RN10, RN11, RN12, RN13 +7 |
| 4 | 3.3K 3.3k | R_Array_Convex_4x0603 | RN3, RN4, RN5, RN6 |
| 1 | 4.7K 4.7k | R_Array_Convex_4x0603 | RN7 |
Diego 500 3 slot design files
The KiCad project lives in the CRG-Glen/DIEGO-500 repository on GitHub; these links point at the commit this page was built from.
Diego 500 3 slot: common questions
How big is the Diego 500 3 slot PCB?
The Diego 500 3 slot measures 155 × 140 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Diego 500 3 slot?
126 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Diego 500 3 slot design files?
From the CRG-Glen/DIEGO-500 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Diego 500 3 slot design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which CRG-Glen chose for the repository.
