Fusion PCB layout, top view — open source Nordic nRF board by crides
Simulate this board

About the Fusion PCB

Fusion is an open source Nordic nRF PCB design by crides, published on GitHub. It is a 2-layer board measuring 125.8 × 91.8 mm, with 100 components from 64 distinct parts.

Its main chip is the HOLYIOT-18010-NO-UNDERSIDE, from the Nordic nRF family. Other key parts include the MT25QL128ABA1ESE, BQ24075, XC6206B331MR, LN4913 and MCP23S08. By type, the board carries 36 relays, 23 resistors, 8 ICs, 8 capacitors, 7 test points and 4 jumpers.

It belongs with the keyboards and power & battery designs in this gallery.

From the project

A folded minimally spaced choc mini (PG1232) keyboard for traveling

My travel board. Uses minimum spacing with choc mini (PG1232) and Cirque touchpad. It's meant to be folded for easy packing for traveling/going to classes. It's called fusion because the halves are now "fused" together (all my previous boards have been split).

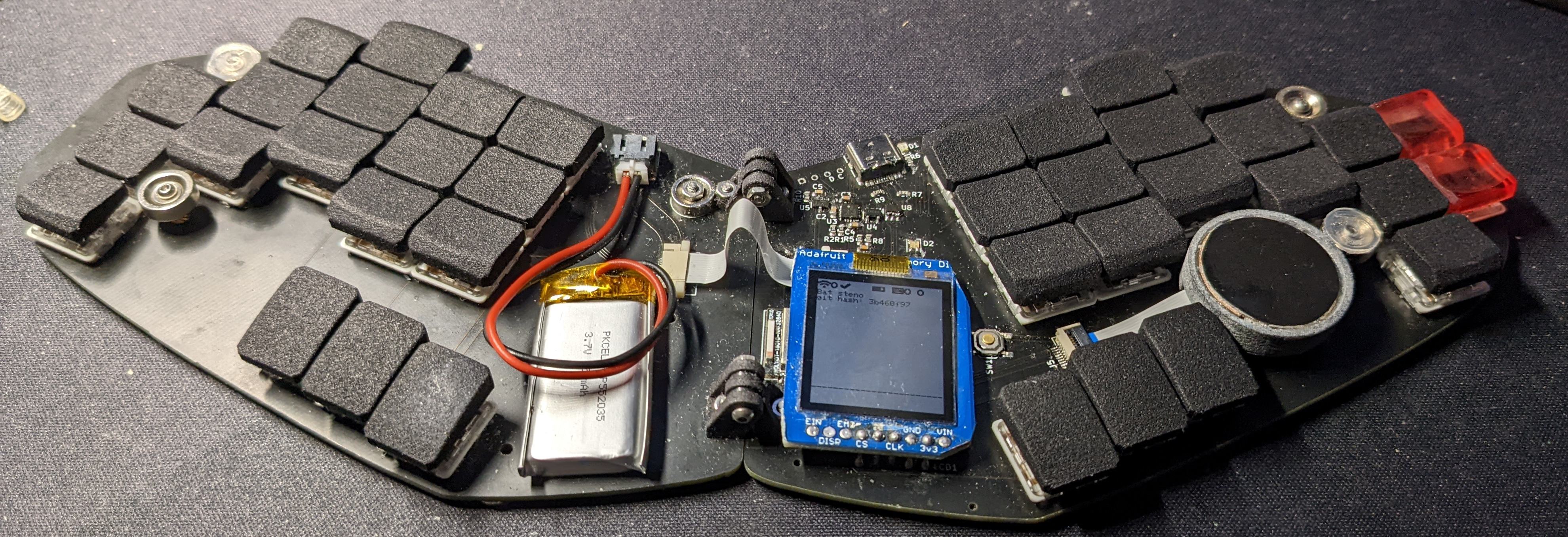

The following picture shows how it's originally assembled:

You can find the caps here. They are printed with the MJF Nylon process at JLCPCB.

Fusion, from the project README
From the project README

Main components on the Fusion

Fusion bill of materials (BOM)

100 components, 64 distinct parts — part numbers from the project's BOM.
