Wifi lamp

damianmoore·wifi-lamp·kicad/wifi-lamp.kicad_pcb

Wifi lamp PCB layout, top view — open source ESP8266 board by damianmoore
Simulate this board

About the Wifi lamp PCB

Wifi lamp is an open source ESP8266 PCB design by damianmoore, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 46.4 × 20.3 mm, with 8 components from 8 distinct parts.

Its main chip is the ESP-01v090, from the ESP8266 family. Other key parts include the AMS1117. By type, the board carries 3 connectors, 2 ICs, 2 switches and 1 transistor.

It belongs with the iot & wireless designs in this gallery.

From the project

A simple wifi-enabled lamp control board based on the ESP8266

A simple wifi-enabled lamp control board based on the ESP8266. It is intended primarily to help retrofit existing LED lamps, giving them switching and dimming functionality through a web browser or home automation system.

The project is based around the ESP8266-01 module as it is widely available, small, very cheap, easily programmable, and directly connects to your existing wifi network.

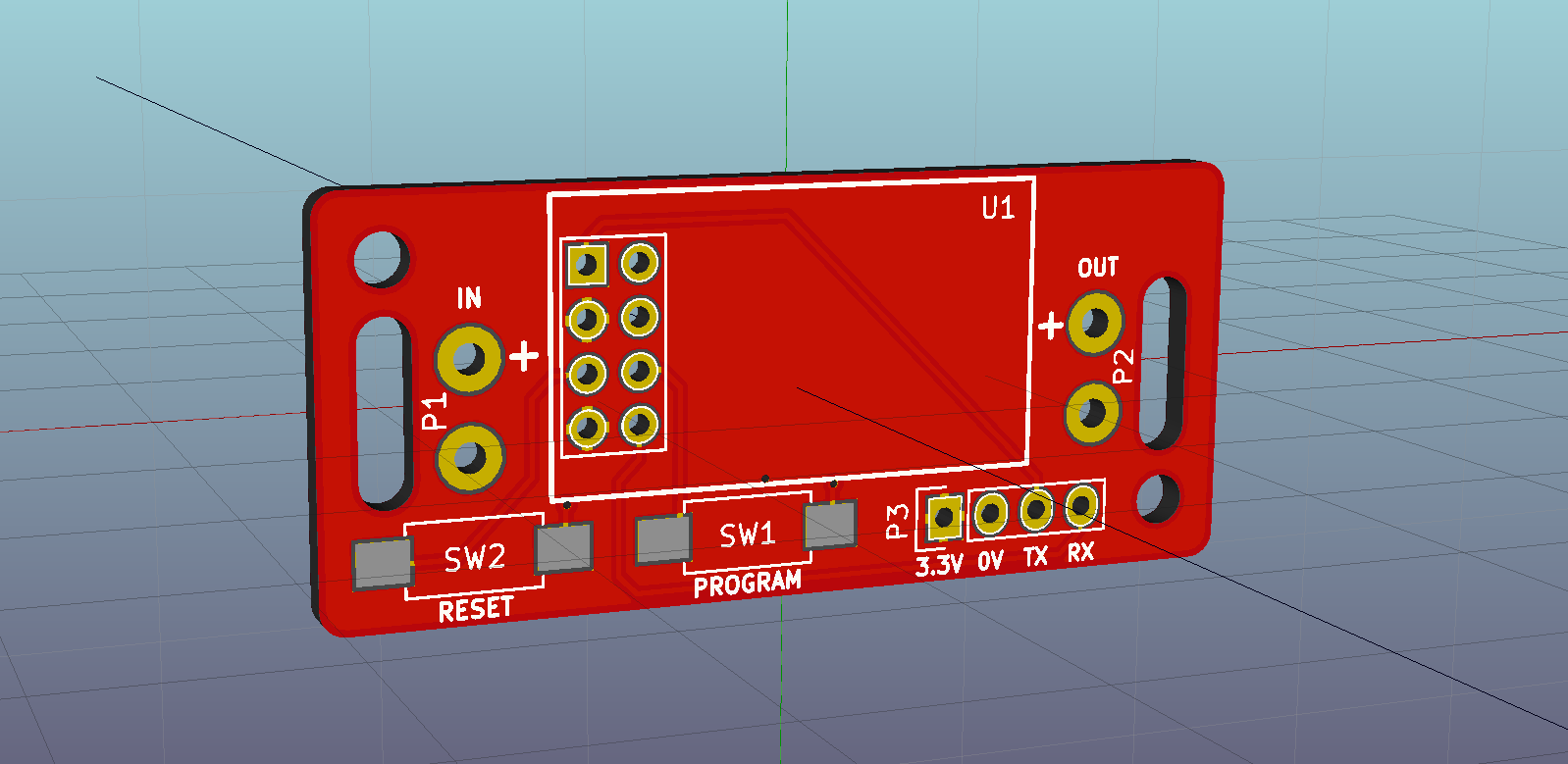

Wifi lamp, from the project README
From the project README

Main components on the Wifi lamp

ESP-01v090AMS1117

Wifi lamp bill of materials (BOM)

8 components, 8 distinct parts.

QtyPartRefs
1
ESP-01v090
U1
1
AMS1117
U2
1
BCP53
Q1
1
POWER
P1
1
LED
P2
1
PROGRAMMER
P3
1
FLASH
SW1
1
RESET
SW2

Wifi lamp design files

The KiCad project lives in the damianmoore/wifi-lamp repository on GitHub; these links point at the commit this page was built from.

Wifi lamp: common questions

What microcontroller does the Wifi lamp use?

The Wifi lamp is built around the ESP-01v090, from the ESP8266 family.

How big is the Wifi lamp PCB?

The Wifi lamp measures 46.4 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Wifi lamp?

8 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Wifi lamp design files?

From the damianmoore/wifi-lamp repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Wifi lamp design in my own project?

Yes, under the terms of its GPL-3.0 license, which damianmoore chose for the repository.

Can I test firmware for the Wifi lamp without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
