Noraneko42c PCB layout, top view — open source RP2040/RP2350 board by darakuneko

About the Noraneko42c PCB

Noraneko42c is an open source RP2040/RP2350 PCB design by darakuneko, published on GitHub under the Custom license license. It is a 2-layer board measuring 280.4 × 121.3 mm, with 127 components from 4 distinct parts.

Its main chip is the RP2040-Zero, from the RP2040/RP2350 family. By type, the board carries 42 switches, 42 LEDs, 42 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

The Noraneko42C is 42key column staggered keyboard.

The Noraneko42C is 42key column staggered keyboard.

Top plate --- 1 pc Middle plate --- 1 pc Main FR4 plate --- 1 pc Bottom1 plate --- 1 pc Bottom2 plate --- 1 pc M2 spacer 3mm --- 11 pcs M2 screw 3mm --- 22 pcs (Screw heads should be 2 mm or less） RP2040-Zero --- 1 pc 1N4148W --- 42 pcs SK6812MINI-E --- 42 pcs MX key switch --- 42 pcs MX keycap 1U --- 38 pcs MX keycap 1.25U --- 4 pcs Bumpon --- Any quantity

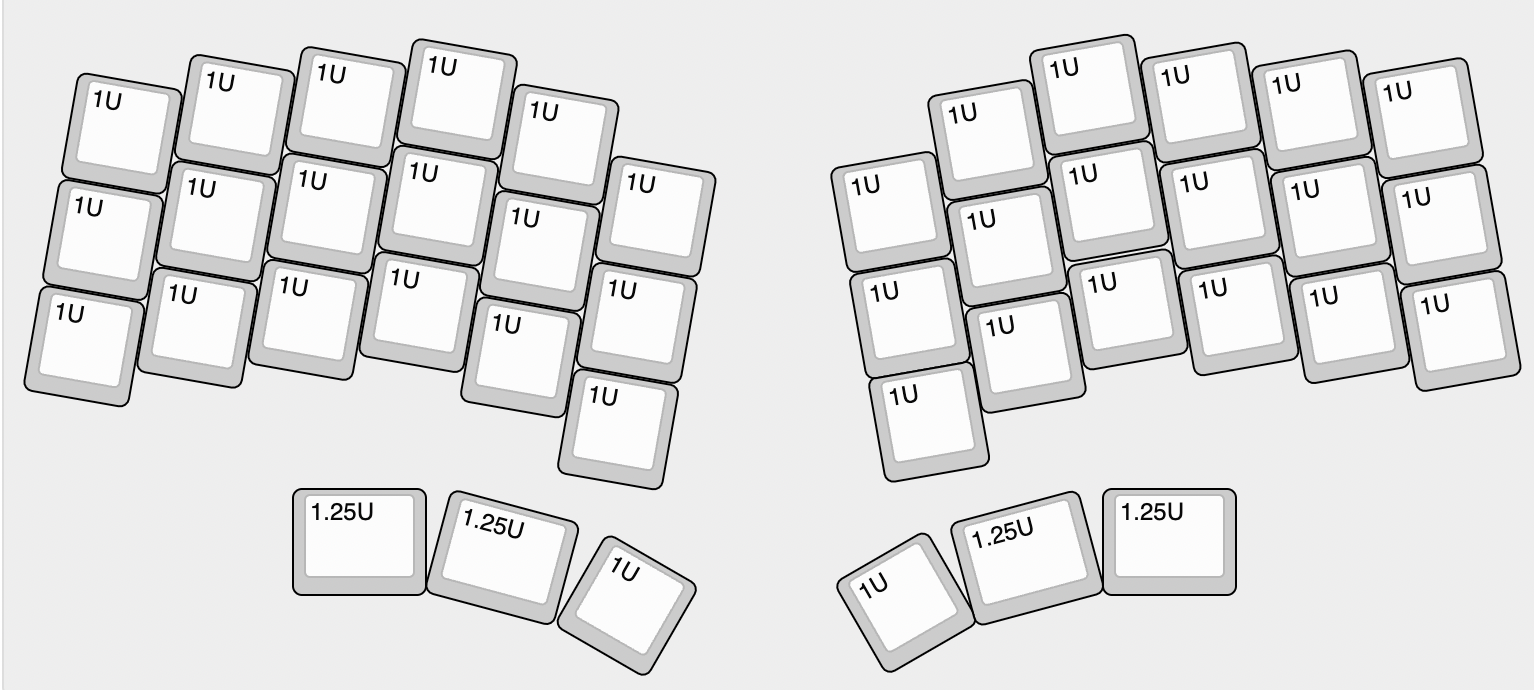

Noraneko42c, from the project README
From the project README

Main components on the Noraneko42c

RP2040-Zero

Noraneko42c bill of materials (BOM)

127 components, 4 distinct parts.

QtyPartRefs
1
RP2040-Zero
U1
42
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +34
42
SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +34
42
D
D1, D2, D3, D4, D5, D6, D7, D8 +34

Noraneko42c design files

The KiCad project lives in the darakuneko/Noraneko repository on GitHub; these links point at the commit this page was built from.

Noraneko42c: common questions

What microcontroller does the Noraneko42c use?

The Noraneko42c is built around the RP2040-Zero, from the RP2040/RP2350 family.

How big is the Noraneko42c PCB?

The Noraneko42c measures 280.4 × 121.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Noraneko42c?

127 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Noraneko42c design files?

From the darakuneko/Noraneko repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Noraneko42c design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Noraneko42c without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
