Noraneko42gr PCB layout, top view — open source RP2040/RP2350 board by darakuneko

About the Noraneko42gr PCB

Noraneko42gr is an open source RP2040/RP2350 PCB design by darakuneko, published on GitHub under the Custom license license. It is a 2-layer board measuring 3.7 × 3.4 mm, with 136 components from 12 distinct parts.

Its main chip is the RP2040-Zero, from the RP2040/RP2350 family. By type, the board carries 48 LEDs, 42 switches, 42 diodes, 2 resistors, 1 IC and 1 transistor.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

The Noraneko42GR is 42key GRIN Layout keyboard.

The Noraneko42GR is 42key GRIN Layout keyboard.

Top acrylic plate --- 1 pc Middle acrylic plate --- 1 pc Main FR4 plate --- 1 pc Bottom1 acrylic plate --- 1 pc Bottom2 acrylic plate --- 1 pc M2 spacer 3mm --- 7 pcs M2 washer --- 7 pcs (about 5mm in diameter） M2 screw 3mm --- 14 pcs (Screw heads should be 2 mm or less） RP2040-Zero --- 1 pc Conthrough --- 23 pin (MAC8 XB-3 height at least 3 mm) 1N4148W --- 42 pcs SK6812MINI-E --- 42 pcs WS2812B --- 6 pcs BSS138 --- 1 pc Resistor 1K Ohm 1/4 Watt PTH --- 2 pcs If it does not glow, change the type of resistor. (reference) MX key switch --- 42 pcs…

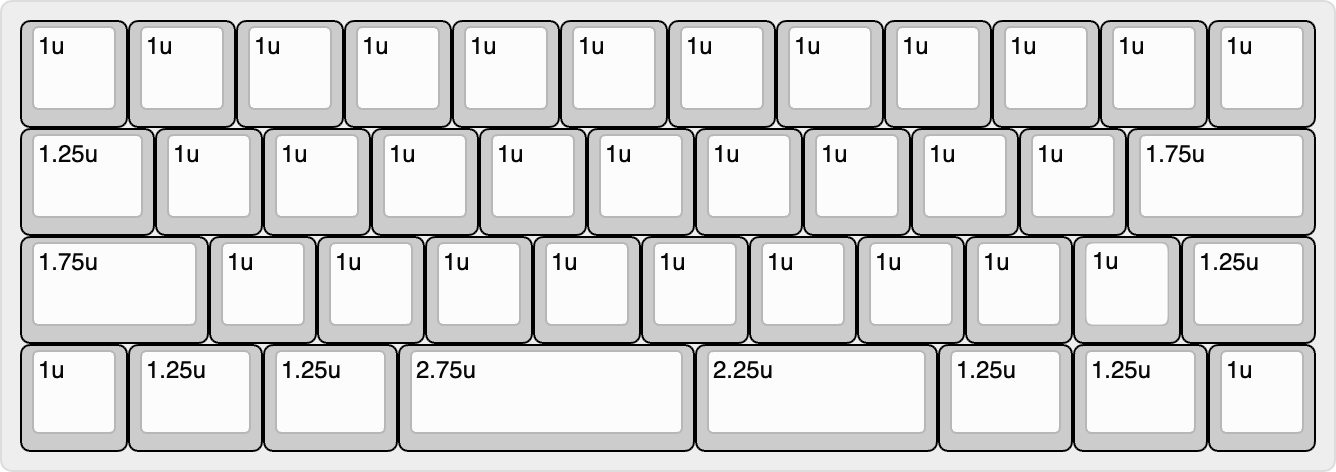

Noraneko42gr, from the project README
From the project README

Main components on the Noraneko42gr

RP2040-Zero

Noraneko42gr bill of materials (BOM)

136 components, 12 distinct parts.

QtyPartRefs
1
RP2040-Zero
U1
1
BSS138
Q1
32
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +24
6
SW_Push
SW13, SW34, SW36, SW37, SW40, SW41
2
SW_Push
SW23, SW24
1
SW_Push
SW38
1
SW_Push
SW39
7
SK6812MINI-E
LED1, LED3, LED7, LED11, LED26, LED33, LED39
35
SK6812MINI-E
LED2, LED4, LED5, LED6, LED8, LED9, LED10, LED12 +27
6
SK6812MINI-E
LED43, LED44, LED45, LED46, LED47, LED48
42
D
D1, D2, D3, D4, D5, D6, D7, D8 +34
2
1K
R1, R2

Noraneko42gr design files

The KiCad project lives in the darakuneko/Noraneko repository on GitHub; these links point at the commit this page was built from.

Noraneko42gr: common questions

What microcontroller does the Noraneko42gr use?

The Noraneko42gr is built around the RP2040-Zero, from the RP2040/RP2350 family.

How big is the Noraneko42gr PCB?

The Noraneko42gr measures 3.7 × 3.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Noraneko42gr?

136 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Noraneko42gr design files?

From the darakuneko/Noraneko repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Noraneko42gr design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Noraneko42gr without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
