Noraneko52r

darakuneko·Noraneko·noraneko52r/v1.1/pcb/noraneko52r.kicad_pcb

Noraneko52r PCB layout, top view — open source RP2040/RP2350 board by darakuneko

About the Noraneko52r PCB

Noraneko52r is an open source RP2040/RP2350 PCB design by darakuneko, published on GitHub under the Custom license license. It is a 2-layer board measuring 228.8 × 98.1 mm, with 173 components from 12 distinct parts.

Its main chip is the RP2040-Zero, from the RP2040/RP2350 family. By type, the board carries 65 LEDs, 52 switches, 52 diodes, 2 resistors, 1 IC and 1 transistor.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Noraneko52R is 52key row staggered keyboard.

Noraneko52R is 52key row staggered keyboard.

Top acrylic plate --- 1 pc Middle acrylic plate --- 1 pc Main FR4 plate --- 1 pc Bottom1 acrylic plate --- 1 pc Bottom2 acrylic plate --- 1 pc M2 spacer 3mm --- 7 pcs M2 screw 3mm --- 14 pcs (Screw heads should be 2 mm or less） RP2040-Zero --- 1 pc Pin header 9pin --- 2 pcs Pin header 5pin --- 1 pc 1N4148W --- 52 pcs SK6812MINI-E --- 52 pcs WS2812B --- 13 pcs BSS138 --- 1 pc Resistor 1K Ohm 1/4 Watt PTH --- 2 pcs If it does not glow, change the type of resistor. (reference)

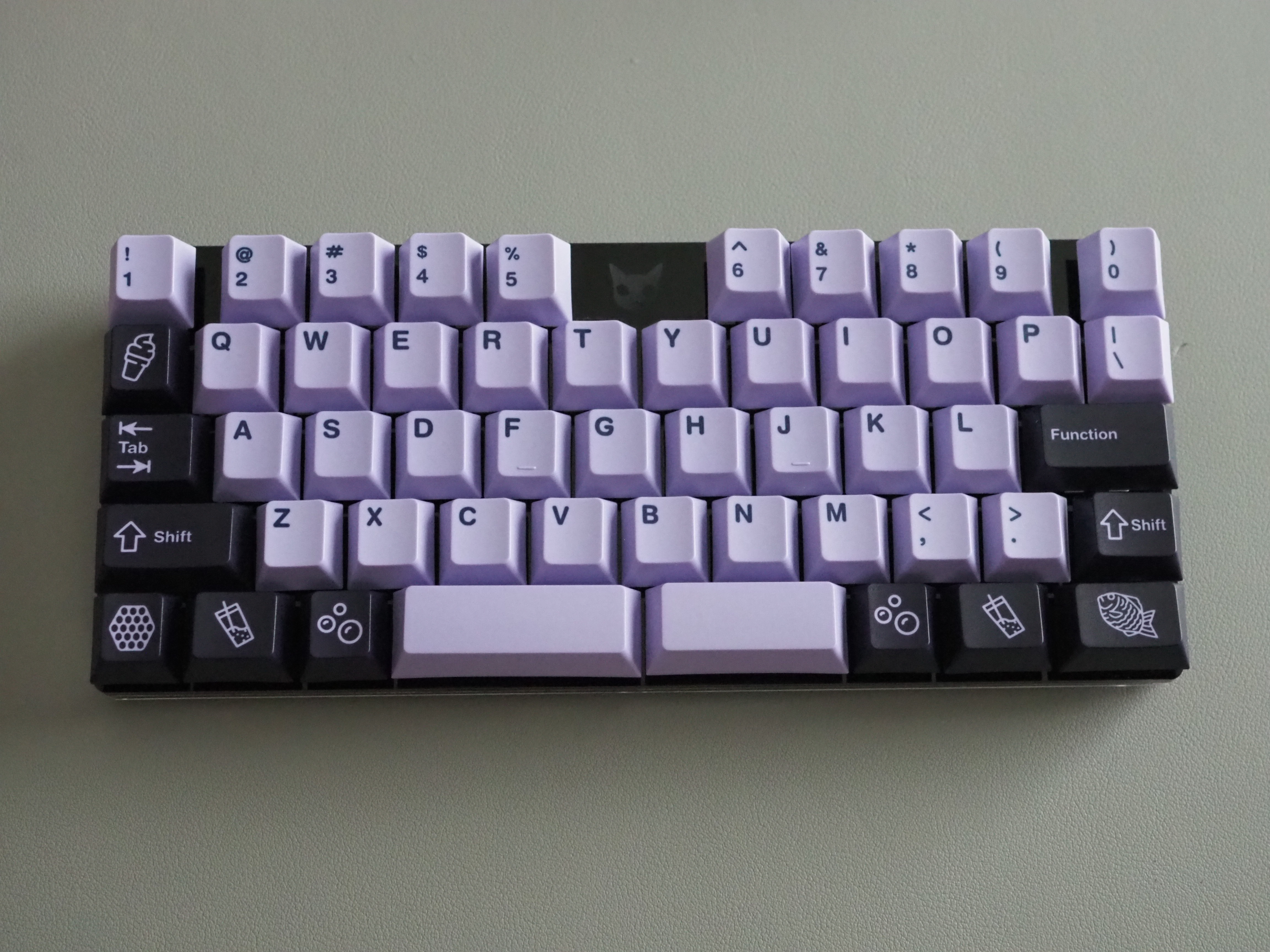

Noraneko52r, from the project README
From the project README

Main components on the Noraneko52r

RP2040-Zero

Noraneko52r bill of materials (BOM)

173 components, 12 distinct parts.

QtyPartRefs
1
RP2040-Zero
U1
1
BSS138
Q1
43
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +35
4
SW_Push
SW23, SW44, SW46, SW51
2
SW_Push
SW33, SW34
1
SW_Push
SW48
1
SW_Push
SW49
1
SW_Push
SW52
52
SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +44
13
SK6812MINI-E
LED53, LED54, LED55, LED56, LED57, LED58, LED59, LED60 +5
52
D
D1, D2, D3, D4, D5, D6, D7, D8 +44
2
10K
R1, R2

Noraneko52r design files

The KiCad project lives in the darakuneko/Noraneko repository on GitHub; these links point at the commit this page was built from.

Noraneko52r: common questions

What microcontroller does the Noraneko52r use?

The Noraneko52r is built around the RP2040-Zero, from the RP2040/RP2350 family.

How big is the Noraneko52r PCB?

The Noraneko52r measures 228.8 × 98.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Noraneko52r?

173 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Noraneko52r design files?

From the darakuneko/Noraneko repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Noraneko52r design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
