WifiLightsController PCB layout, top view — open source ESP8266 board by David-Estevez

About the WifiLightsController PCB

WifiLightsController is an open source ESP8266 PCB design by David-Estevez, published on GitHub. It is a 2-layer board measuring 49.8 × 22 mm, with 11 components from 11 distinct parts.

Its main chip is the ESP8266-03, from the ESP8266 family. Other key parts include the LD1117S33CTR. By type, the board carries 4 connectors, 2 switches, 2 capacitors and 1 IC.

It belongs with the displays & leds designs in this gallery.

From the project

Control a strip of several WS2812B with an ubicuous ESP8266 module

WifiLightsController ------------------------

Control a strip of several WS2812B with an ubicuous ESP8266 module

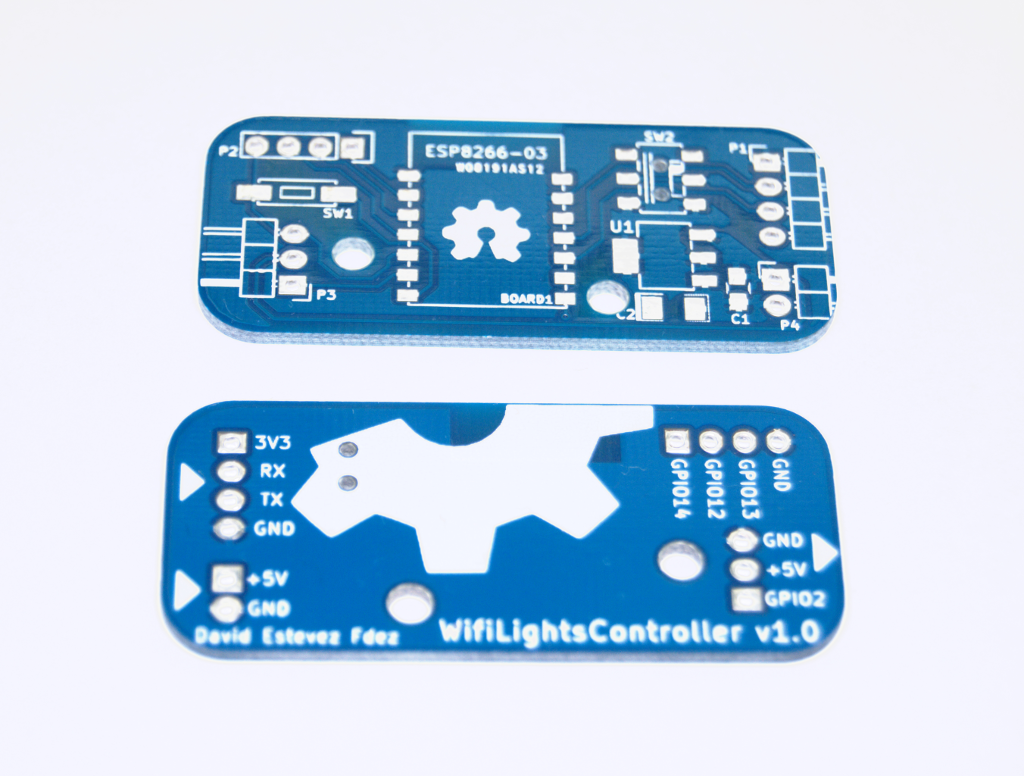

WifiLightsController, from the project README
From the project README

Main components on the WifiLightsController

LD1117S33CTR

WifiLightsController bill of materials (BOM)

11 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LD1117S33CTR
U1
1
CONN_01X04
P1
1
CONN_01X04
P2
1
CONN_01X03
P3
1
CONN_01X02
P4
1
ESP8266-03
BOARD1
1
—
Mechanical_drill_3mm
1
SW_PUSH
SW1
1
PASSIVES_Switch_DPDT
SW2
1
C
C1
1
CP
C2

WifiLightsController design files

The KiCad project lives in the David-Estevez/WifiLightsController repository on GitHub; these links point at the commit this page was built from.

WifiLightsController: common questions

What microcontroller does the WifiLightsController use?

The WifiLightsController is built around the ESP8266-03, from the ESP8266 family.

How big is the WifiLightsController PCB?

The WifiLightsController measures 49.8 × 22 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WifiLightsController?

11 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the WifiLightsController design files?

From the David-Estevez/WifiLightsController repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the WifiLightsController design in my own project?

The repository has no license, so all rights stay with David-Estevez. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the WifiLightsController without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
