Sweep high plate

davidphilipbarr·Sweep·Sweep High/sweep-high_plate.kicad_pcb

Sweep high plate PCB layout, top view — open source board by davidphilipbarr

About the Sweep high plate PCB

Sweep high plate is an open source PCB design by davidphilipbarr, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 112.1 × 95.2 mm, with 17 components from 1 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

Sweep - a small promicro based keyboard inspired by the Ferris.

Same as the Sweep2 but trades choc spacing for compatibility with more switches and keycaps.

To order the PCB the following settings are recommended1,2:

1: Settings are for JLCPCB, but could work for other manufacturers.

2: Settings are taken from Kyek's video guide.

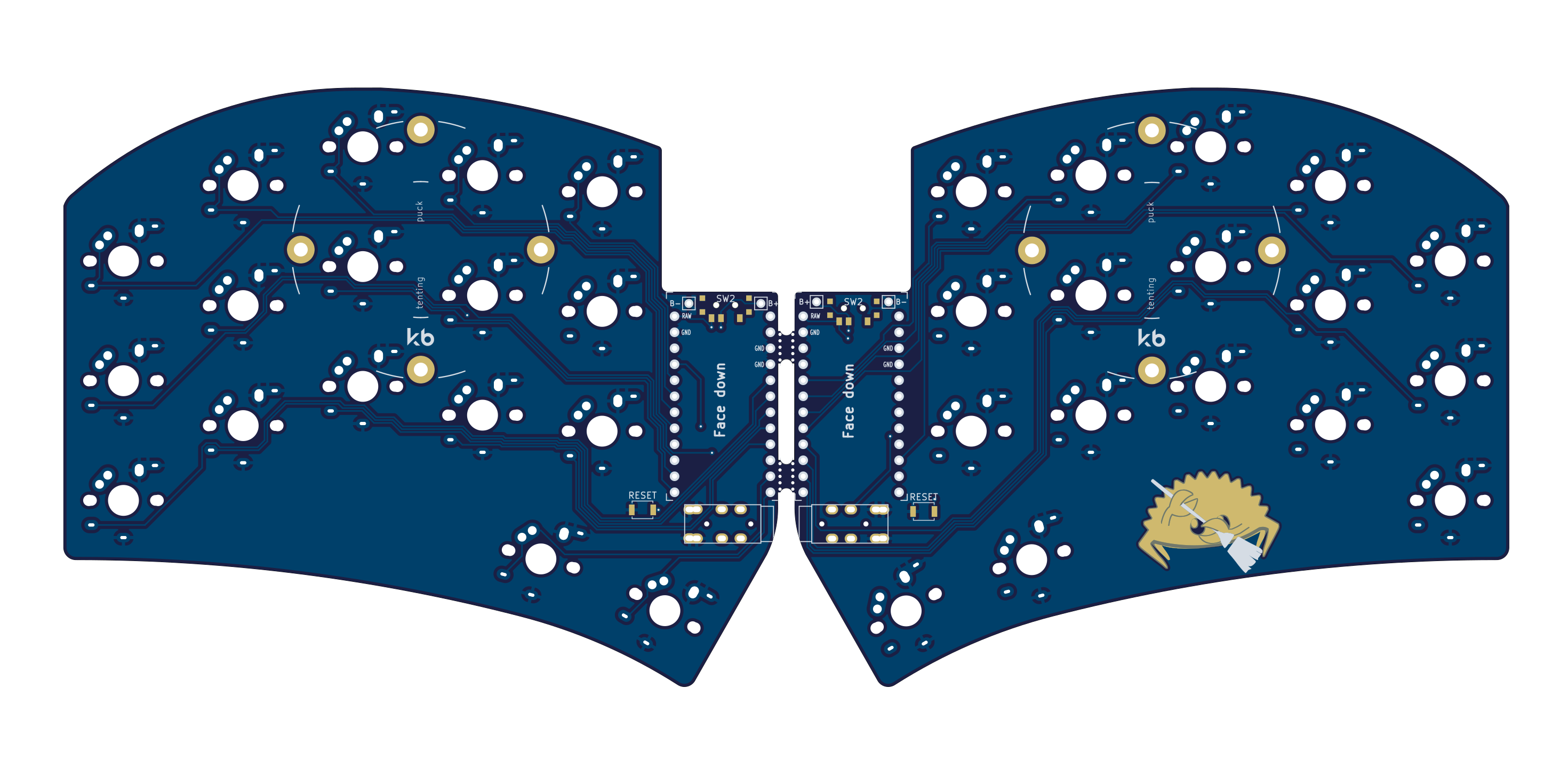

Sweep high plate, from the project README
From the project README

Sweep high plate bill of materials (BOM)

17 components, 1 distinct parts.

QtyPartRefs
17
SW_Push
SW2, SW3, SW4, SW5, SW6, SW8, SW9, SW10 +9

Sweep high plate design files

The KiCad project lives in the davidphilipbarr/Sweep repository on GitHub; these links point at the commit this page was built from.

Sweep high plate: common questions

How big is the Sweep high plate PCB?

The Sweep high plate measures 112.1 × 95.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sweep high plate?

17 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sweep high plate design files?

From the davidphilipbarr/Sweep repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Sweep high plate design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
