Ferris Sweep Compact

davidphilipbarr·Sweep·Sweep Mini/sweep-mini.kicad_pcb

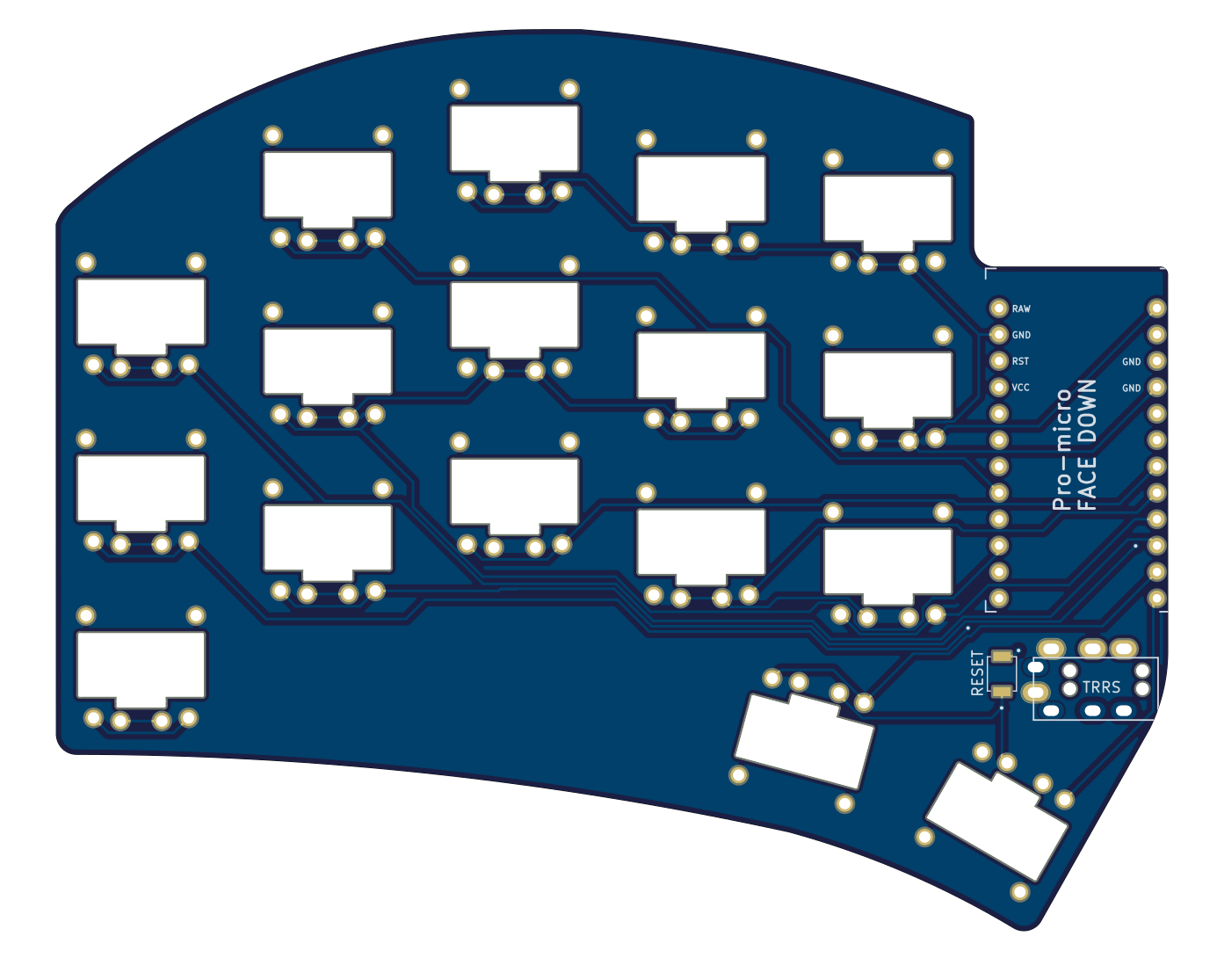

Ferris Sweep Compact PCB layout, top view — open source board by davidphilipbarr

About the Ferris Sweep Compact PCB

Ferris Sweep Compact is an open source PCB design by davidphilipbarr, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 107.2 × 86.9 mm, with 20 components from 4 distinct parts.

Other key parts include the ProMicro. By type, the board carries 17 switches, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

Sweep - a small promicro based keyboard inspired by the Ferris.

This is the only Sweep version that supports the "Choc Mini" switch.

Ferris Sweep Compact, from the project README
From the project README

Main components on the Ferris Sweep Compact

ProMicro

Ferris Sweep Compact bill of materials (BOM)

20 components, 4 distinct parts.

QtyPartRefs
1
ProMicro
U1
1
MJ-4PP-9
J1
1
Val**
RSW1
17
SW_PUSH
SW2, SW3, SW4, SW5, SW6, SW8, SW9, SW10 +9

Ferris Sweep Compact design files

The KiCad project lives in the davidphilipbarr/Sweep repository on GitHub; these links point at the commit this page was built from.

Ferris Sweep Compact: common questions

How big is the Ferris Sweep Compact PCB?

The Ferris Sweep Compact measures 107.2 × 86.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ferris Sweep Compact?

20 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ferris Sweep Compact design files?

From the davidphilipbarr/Sweep repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ferris Sweep Compact design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
