Sweepv2

davidphilipbarr·Sweep·Sweep v2.2/sweepv2.kicad_pcb

Sweepv2 PCB layout, top view — open source board by davidphilipbarr

About the Sweepv2 PCB

Sweepv2 is an open source PCB design by davidphilipbarr, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 216.9 × 86.9 mm, with 40 components from 4 distinct parts.

Other key parts include the ProMicro-kbd. By type, the board carries 34 switches, 2 ICs and 2 connectors.

It belongs with the keyboards designs in this gallery.

From the project

Sweep - a small promicro based keyboard inspired by the Ferris.

This is the main Choc v1 board we all know and love.

To order the PCB the following settings are recommended1,2:

1: Settings are for JLCPCB, but could work for other manufacturers.

2: Settings are taken from Kyek's video guide.

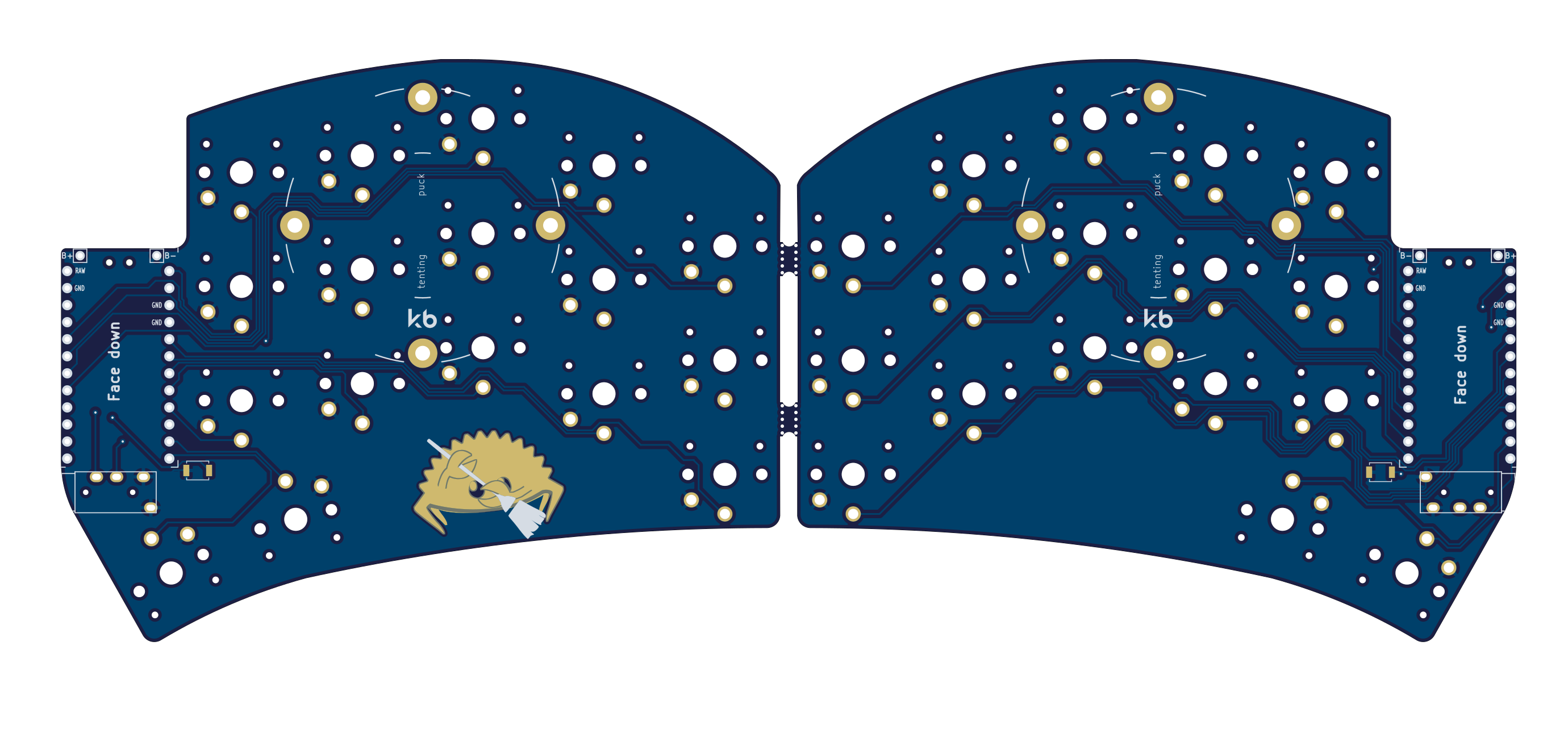

Sweepv2, from the project README
From the project README

Main components on the Sweepv2

ProMicro-kbd

Sweepv2 bill of materials (BOM)

40 components, 4 distinct parts.

QtyPartRefs
2
ProMicro-kbd
U1, U2
2
AudioJack4dpb
J1, J2
2
SW_Push
RSW1, RSW2
34
SW_Push
SW2, SW2_r1, SW3, SW3_r1, SW4, SW4_r1, SW5, SW5_r1 +26

Sweepv2 design files

The KiCad project lives in the davidphilipbarr/Sweep repository on GitHub; these links point at the commit this page was built from.

Sweepv2: common questions

How big is the Sweepv2 PCB?

The Sweepv2 measures 216.9 × 86.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sweepv2?

40 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sweepv2 design files?

From the davidphilipbarr/Sweep repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Sweepv2 design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
