Sweep bling mx
About the Sweep bling mx PCB
Sweep bling mx is an open source PCB design by davidphilipbarr, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 113.5 × 95.2 mm, with 22 components from 5 distinct parts.
Other key parts include the ProMicro-kbd. By type, the board carries 17 switches, 1 IC and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project

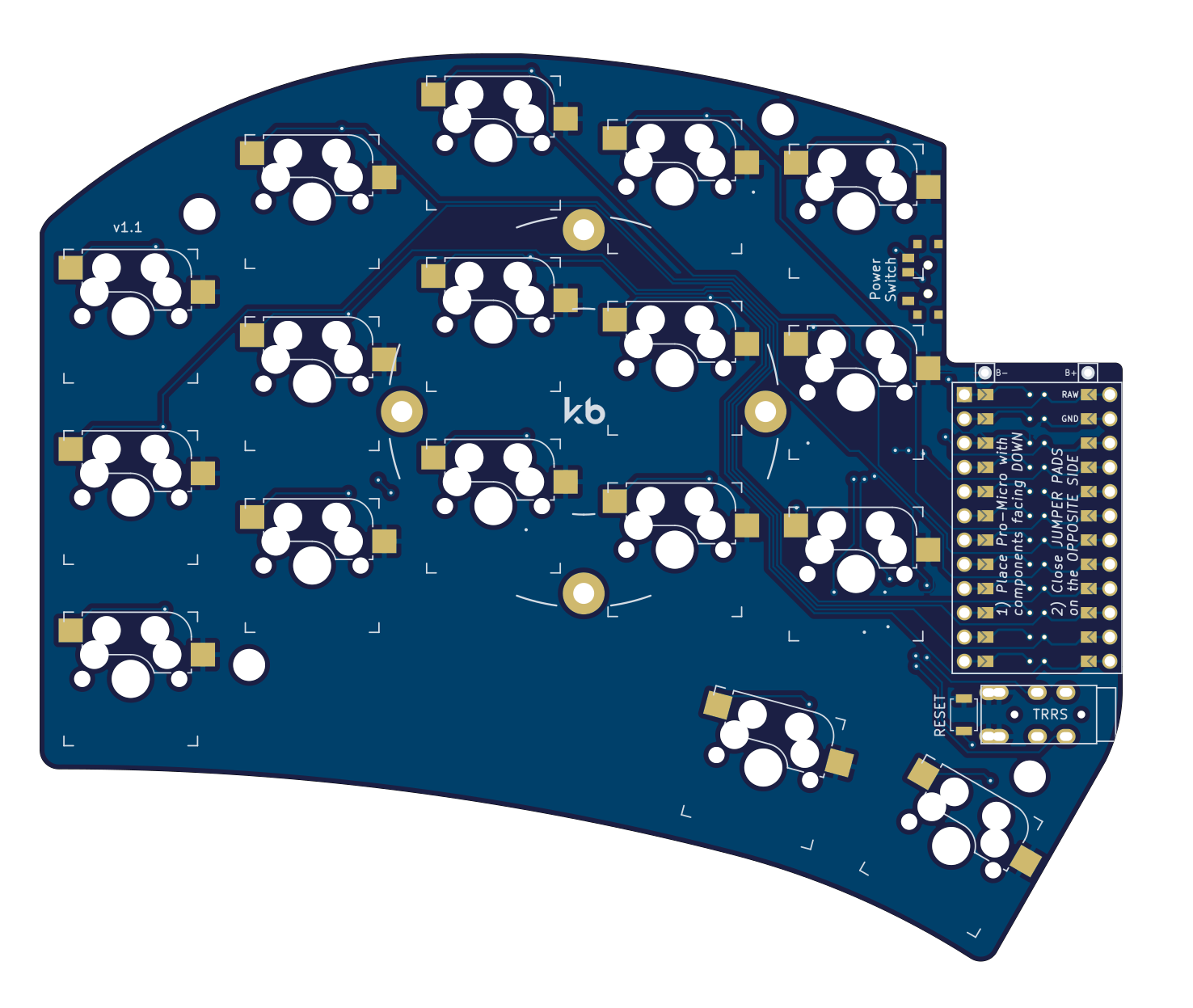

Sweep - a small promicro based keyboard inspired by the Ferris.
This version of the Sweep features MX Switches support (exclusively) with hotswap sockets. As well as tenting support.
It also features mouting holes for a stacked case. You can find the switch plate and bottom plate files in the relative folders.
The bottom plate is also compatible with tenting, you can break away the middle section to allow installation of the puck.
Main components on the Sweep bling mx
Sweep bling mx bill of materials (BOM)
22 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro-kbd | ProMicro_facedown | U1 |
| 1 | AudioJack4dpb | TRRS-PJ-DPB2 | J2 |
| 2 | MountingHole_Pad | 1pin_conn | Bat+r1, BatGND1 |
| 17 | SW_Push | Kailh_socket_MX_reversible_sameside | SW2, SW3, SW4, SW5, SW6, SW8, SW9, SW10 +9 |
| 1 | SW_SPDT | SPDT_C128955 | SW_POWERR1 |
Sweep bling mx design files
The KiCad project lives in the davidphilipbarr/Sweep repository on GitHub; these links point at the commit this page was built from.
Sweep bling mx: common questions
How big is the Sweep bling mx PCB?
The Sweep bling mx measures 113.5 × 95.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sweep bling mx?
22 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sweep bling mx design files?
From the davidphilipbarr/Sweep repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Sweep bling mx design in my own project?
It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
