Sweepbling lp
About the Sweepbling lp PCB
Sweepbling lp is an open source PCB design by davidphilipbarr, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 216.9 × 86.9 mm, with 46 components from 6 distinct parts.
Other key parts include the ProMicro-kbd. By type, the board carries 34 switches and 2 ICs.
It belongs with the keyboards designs in this gallery.
From the project

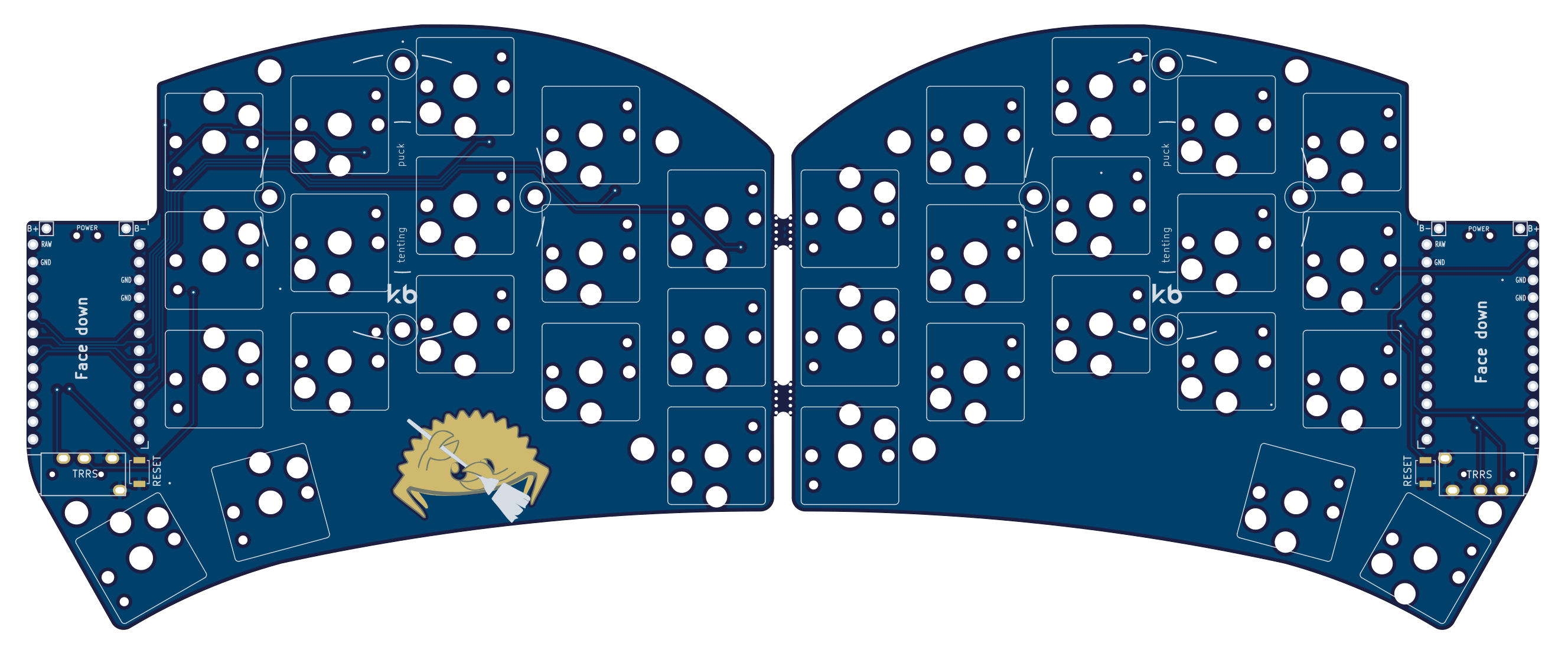

Sweep - a small promicro based keyboard inspired by the Ferris.
This is a kailh hotswap version of the Sweep v2.
To order the PCB the following settings are recommended1,2:
1: Settings are for JLCPCB, but could work for other manufacturers.
2: Settings are taken from Kyek's video guide.
Main components on the Sweepbling lp
Sweepbling lp bill of materials (BOM)
46 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ProMicro-kbd | ProMicro_v3_min | U1, U2 |
| 4 | MountingHole_Pad | 1pin_conn | Bat+1, Bat+r1, BatGND1, BatGNDr1 |
| 2 | SW_Push | SW_SPST_B3U-1000P | RSW1, RSW2 |
| 34 | SW_Push | SW_Hotswap_Kailh_Choc_V1_tweaked | SW1, SW1_r1, SW2, SW2_r1, SW3, SW3_r1, SW4, SW4_r1 +26 |
| 2 | SW_SPDT | SPDT_C128955 | SW_POWER1, SW_POWERR1 |
| 2 | AudioJack4 | TRRS-PJ-320A | TRRS1, TRRS2 |
Sweepbling lp design files
The KiCad project lives in the davidphilipbarr/Sweep repository on GitHub; these links point at the commit this page was built from.
Sweepbling lp: common questions
How big is the Sweepbling lp PCB?
The Sweepbling lp measures 216.9 × 86.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sweepbling lp?
46 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sweepbling lp design files?
From the davidphilipbarr/Sweep repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Sweepbling lp design in my own project?
It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
