Half swept

davidphilipbarr·Sweep·Sweep half-swept/half-swept.kicad_pcb

Half swept PCB layout, top view — open source board by davidphilipbarr

About the Half swept PCB

Half swept is an open source PCB design by davidphilipbarr, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 109 × 86.9 mm, with 20 components from 4 distinct parts.

Other key parts include the ProMicro-kbd. By type, the board carries 17 switches, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

Sweep - a small promicro based keyboard inspired by the Ferris.

Half of a Sweep2 with a reversible micro-controller footprint.

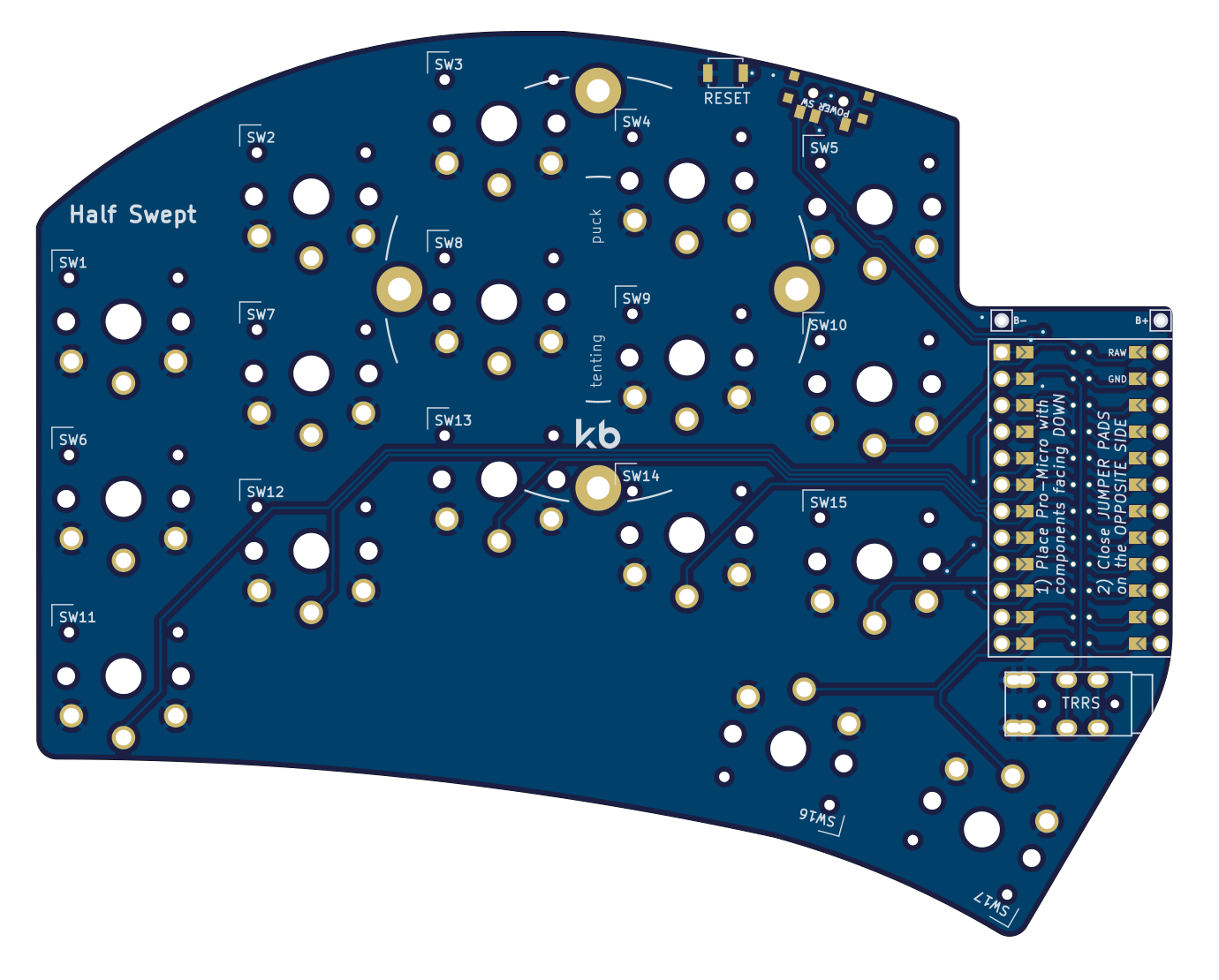

Half swept, from the project README
From the project README

Main components on the Half swept

ProMicro-kbd

Half swept bill of materials (BOM)

20 components, 4 distinct parts.

QtyPartRefs
1
ProMicro-kbd
U1
1
AudioJack4dpb
J2
1
SW_Push
RSW2
17
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +9

Half swept design files

The KiCad project lives in the davidphilipbarr/Sweep repository on GitHub; these links point at the commit this page was built from.

Half swept: common questions

How big is the Half swept PCB?

The Half swept measures 109 × 86.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Half swept?

20 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Half swept design files?

From the davidphilipbarr/Sweep repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Half swept design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
