Micropython and pcb class-2022 layout, top view — open source RP2040/RP2350 board by DC540-Nova

About the Micropython and pcb class-2022

Micropython and pcb class-2022 is an open source RP2040/RP2350 PCB design by DC540-Nova, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 111.8 × 73.7 mm, with 7 components from 2 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 6 diodes and 1 IC.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

MicroPython & PCB Class 2022 repo.

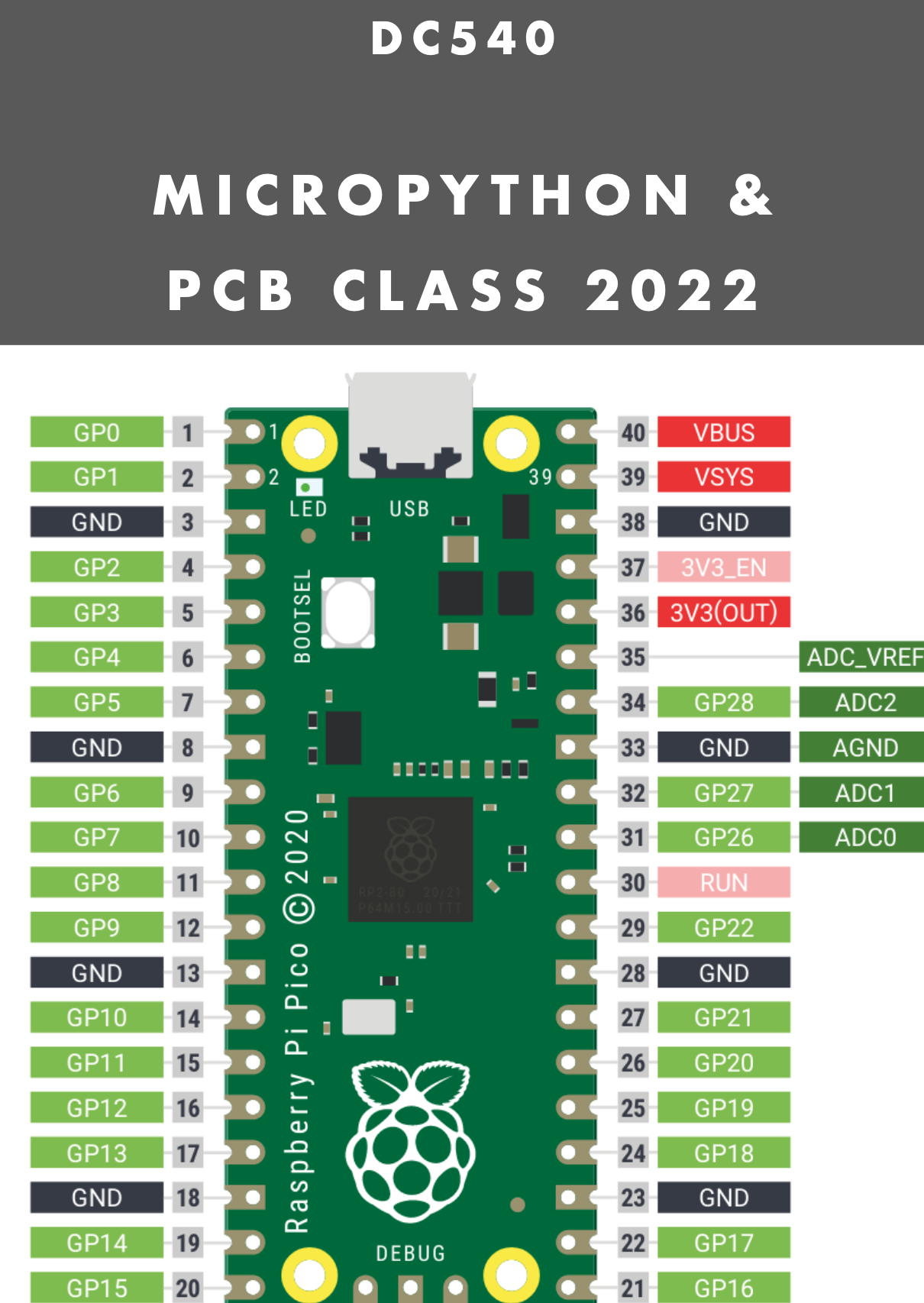

Micropython and pcb class-2022, from the project README
From the project README

Main components on the Micropython and pcb class-2022

Pico

Micropython and pcb class-2022 bill of materials (BOM)

7 components, 2 distinct parts.

QtyPartRefs
1
Pico
U1
6
WS2812B
D1, D2, D3, D4, D5, D6

Micropython and pcb class-2022 design files

The KiCad project lives in the DC540-Nova/micropython-and-pcb-class-2022 repository on GitHub; these links point at the commit this page was built from.

Micropython and pcb class-2022: common questions

What microcontroller does the Micropython and pcb class-2022 use?

The Micropython and pcb class-2022 is built around the Pico, from the RP2040/RP2350 family.

How big is the Micropython and pcb class-2022?

The Micropython and pcb class-2022 measures 111.8 × 73.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Micropython and pcb class-2022?

7 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Micropython and pcb class-2022 design files?

From the DC540-Nova/micropython-and-pcb-class-2022 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Micropython and pcb class-2022 design in my own project?

Yes, under the terms of its Apache-2.0 license, which DC540-Nova chose for the repository.

Can I test firmware for the Micropython and pcb class-2022 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
