Headphone-DAC-AMP

ddabidov·Headphone-DAC-AMP·Headphone DAC AMP/Headphone DAC AMP.kicad_pcb

Headphone-DAC-AMP PCB layout, top view — open source board by ddabidov
Simulate this board

About the Headphone-DAC-AMP PCB

Headphone-DAC-AMP is an open source PCB design by ddabidov, published on GitHub. It is a 4-layer board measuring 56 × 96.9 mm, with 167 components from 57 distinct parts.

Other key parts include the ES9039Q2M, XU316-1024-QF60B-C24, TPA6120A2DWP, OPA1612AXD and MCP1727-1802XSN. By type, the board carries 96 capacitors, 39 resistors, 12 ICs, 6 diodes, 5 connectors and 4 inductors.

It belongs with the audio designs in this gallery.

From the project

A USB Based HiFi DAC AMP Made by Dan Abidov and Luke Stirzinger

The goal of this project is to demonstrate that both high resolution and high sampling rates can be achieved in a compact, affordable system. While a moderate amount of theoretical information explaining how a DAC-amplifier system functions is available online, practical guidance regarding component selection, layout considerations, IC integration, and signal-path design remains limited. This project therefore also aims to serve as a technical resource for future designers interested in high-fidelity audio systems, reducing the barrier to entry and simplifying the development process.

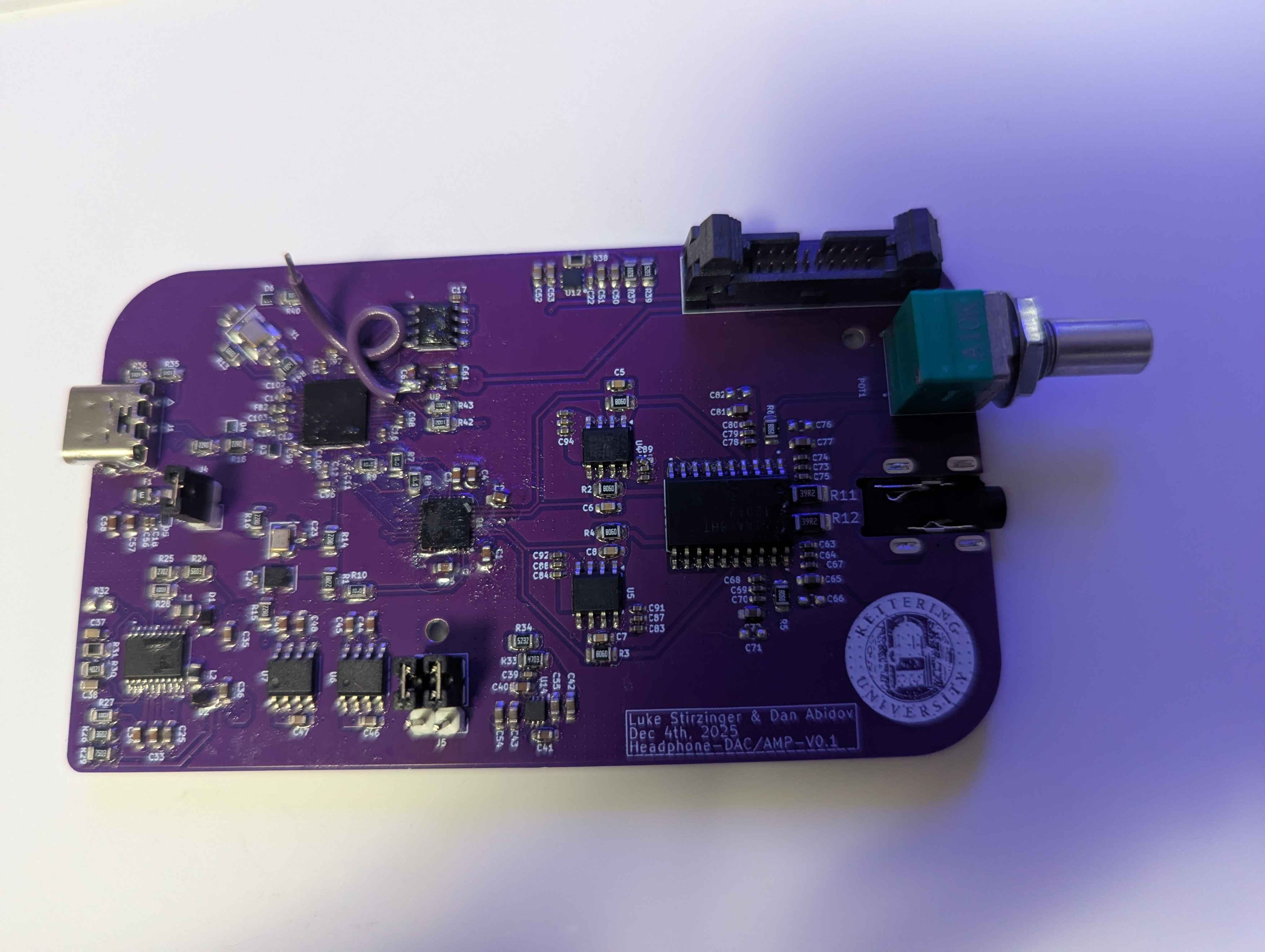

Headphone-DAC-AMP, from the project README
From the project README

Main components on the Headphone-DAC-AMP

ES9039Q2MXU316-1024-QF60B-C24TPA6120A2DWPOPA1612AXDMCP1727-1802XSNMCP1727-3302XSNW25Q16JVSNIQTPS717XXADP5071AREZ-R7TPS74501PDRVRADP7185ACPZN-R7

Headphone-DAC-AMP bill of materials (BOM)

167 components, 57 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ES9039Q2M
U1
1
XU316-1024-QF60B-C24
U2
1
TPA6120A2DWP
U3
2
OPA1612AXD
OPA1612AxD
U4, U5
1
MCP1727-1802XSN
MCP1727-1802xSN
U6
1
MCP1727-3302XSN
MCP1727-3302xSN
U7
1
W25Q16JVSNIQ
U8
1
TPS717XX
U9
1
ADP5071AREZ-R7
U11
1
TPS74501PDRVR
U12
1
ADP7185ACPZN-R7
U14
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
LMK6CE049152CDLFR
Y2
1
ASDLJ-E-45.1584MHZ
ASDLJ-E-45.1584MHz
Y3
1
2137160001
Molex
J1
1
M50-3551042
HARWIN
J2
1
SJ-3502-SMT
J3
1
PINHD_1X2_MALE
PINHD_1x2_Male
J4
1
PINHD_2X3_MALE
PINHD_2x3_Male
J5
1
2A
F1
Show 37 more
QtyPartRefs
1
PTN092-H10115DA
Same Sky
POT1
2
D_Schottky
D1, D2
4
PESD5V0L1BSL
D3, D4, D5, D6
1
220R
FB1
1
600R @ 100MHz
FB2
1
3.3U
3.3u
L1
1
4.7U
4.7u
L2
20
1u
C1, C2, C3, C4, C33, C34, C40, C44 +12
4
2200P
2200p
C5, C6, C7, C8
39
100N
100n
C9, C10, C11, C12, C13, C14, C15, C16 +31
2
18P
18p
C20, C21
10
10N
10n
C22, C39, C63, C68, C73, C78, C83, C84 +2
5
10U
10u
C25, C35, C36, C46, C47
2
47U
47u
C37, C38
13
4.7U
4.7u
C41, C42, C43, C50, C51, C52, C53, C54 +5
1
1u
C103
6
800
R1, R2, R3, R4, R5, R6
4
10
R7, R8, R9, R10
2
39.2
R11, R12
1
680
R13
6
22
R14, R15, R16, R17, R18, R19
1
560K
R24
2
100K
R25, R27
1
36K
36k
R26
1
27K
R28
1
750K
750k
R29
1
4k
R30
2
1k
R31, R38
1
DNP
R32
1
470K
R33
1
52.3K
R34
2
5.1K
5.1k
R35, R36
1
8.2K
8.2k
R37
1
620K
620k
R39
1
10K
R40
1
1M
R41
2
2k
R42, R43

Headphone-DAC-AMP design files

The KiCad project lives in the ddabidov/Headphone-DAC-AMP repository on GitHub; these links point at the commit this page was built from.

Headphone-DAC-AMP: common questions

How big is the Headphone-DAC-AMP PCB?

The Headphone-DAC-AMP measures 56 × 96.9 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Headphone-DAC-AMP?

167 components, from 57 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Headphone-DAC-AMP design files?

From the ddabidov/Headphone-DAC-AMP repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Headphone-DAC-AMP design in my own project?

The repository has no license, so all rights stay with ddabidov. Use it as a reference, and ask the author before reusing the design.
