Parthiv pcb v2

dddrrreee·cs240lx-26spr·labs/6-pcb/parthiv_pcb_v2.1/parthiv_pcb_v2.kicad_pcb

Parthiv pcb v2 layout, top view — open source Raspberry Pi board by dddrrreee

About the Parthiv pcb v2

Parthiv pcb v2 is an open source Raspberry Pi PCB design by dddrrreee, published on GitHub. It is a 2-layer board measuring 66.9 × 46.6 mm, with 30 components from 22 distinct parts.

Its main chip is the RASPBERRY_PI_2_3, from the Raspberry Pi family. Other key parts include the CP2102N-Axx-xQFN20 and NRF24L01. By type, the board carries 8 resistors, 6 connectors, 6 capacitors, 5 diodes, 3 ICs and 1 transistor.

It belongs with the usb & debug tools designs in this gallery.

From the project

all labs, docs, code for cs240lx, spr 2026

NOTE: KiCAD 10 was released last month (March 2026). I made this lab on KiCAD 9, but feel free to try KiCAD 10 and let me know if anything major has changed.

Our goal is to create a board that can plug into the Raspberry Pi GPIO header and connect to a USB to UART converter along with some RGB LEDs. To extend the lab, you'll also add in connections to a few sensors/peripherals/hardware of your choice.

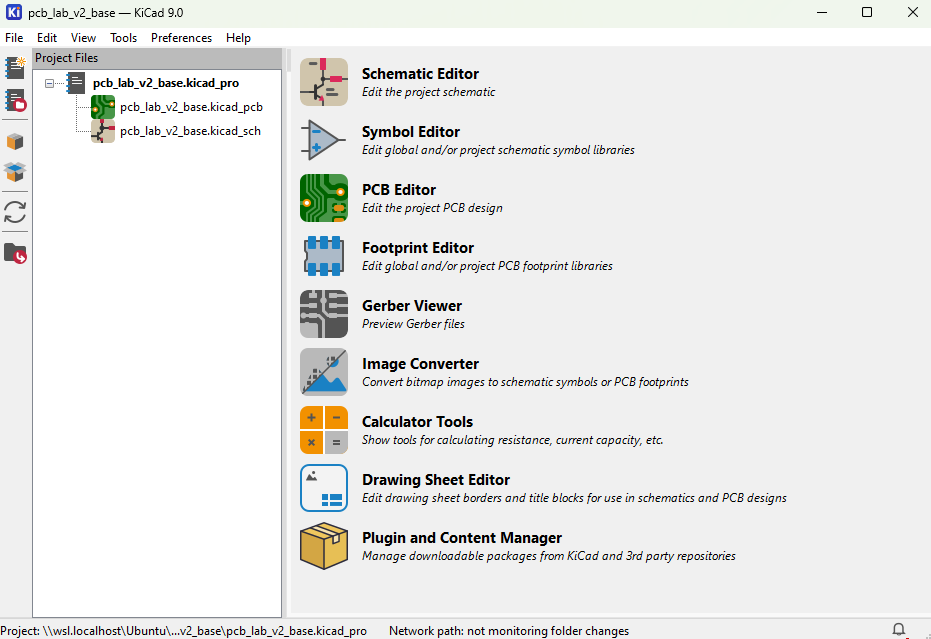

Parthiv pcb v2, from the project README
