P1 rx
About the P1 rx PCB
P1 rx is an open source PCB design by Deco025, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 75 × 60 mm, with 86 components from 44 distinct parts.
Other key parts include the UCC27211, INA240A2D, LM74700, LMR16006X and TC2185-3.3. By type, the board carries 40 capacitors, 19 resistors, 9 diodes, 7 ICs, 4 connectors and 4 inductors.
It belongs with the power & battery and iot & wireless designs in this gallery.
From the project

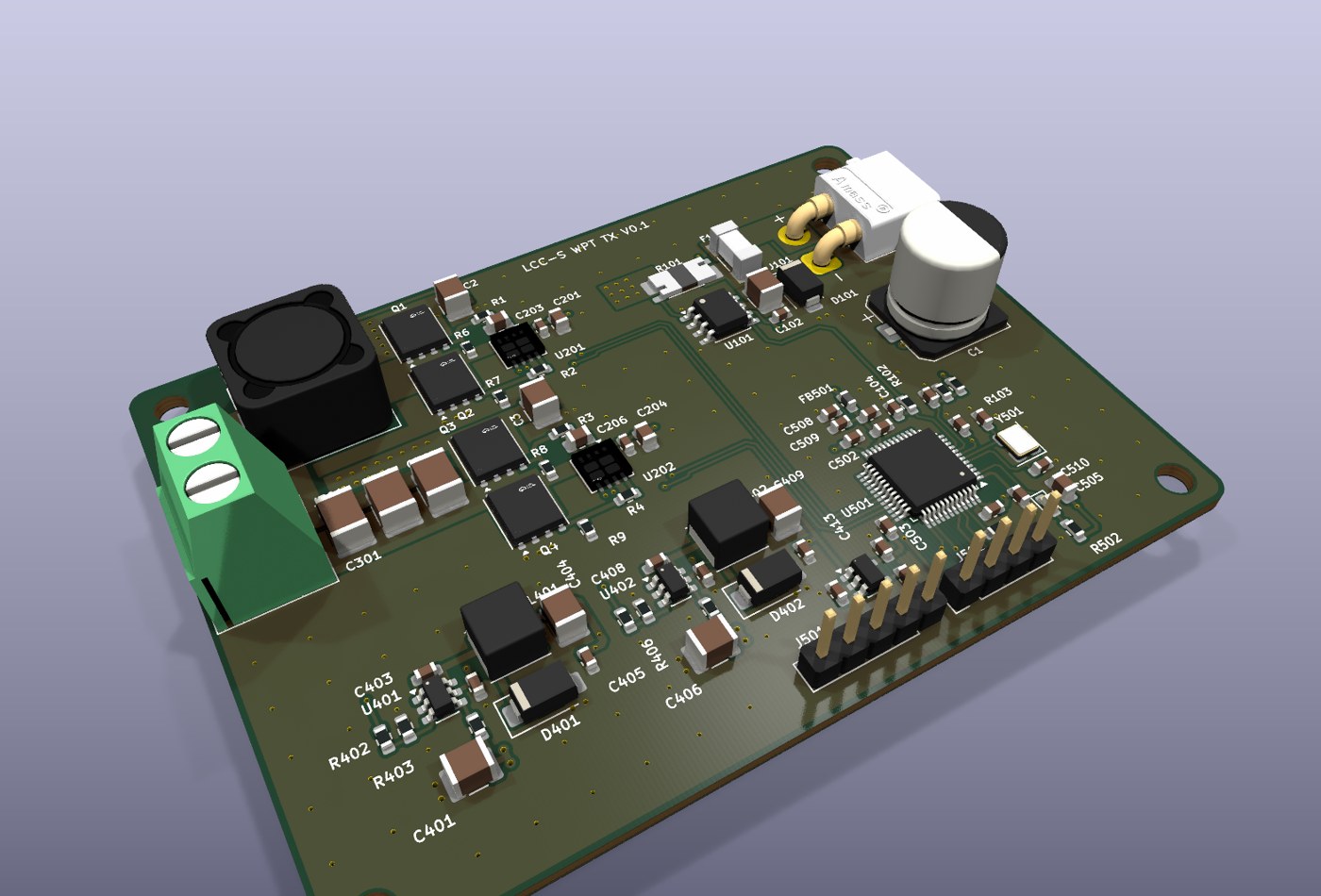

Resonare: open-source 120 W LCC-S resonant wireless charger, transmitter and receiver boards (KiCad 10, 4-layer)
第 2 层为整层地、第 3 层为整层电源（TX：VBUS；RX：VRECT），图中只画出两个外层。
- 主要指标 - 系统结构 - 仓库结构 - 打开工程 - 打样与装配 - 设计要点 - 安全提示 - 许可证 - 致谢
- 发射端过流保护：INA240 输出同时进 ADC 和片内比较器（COMP1），比较器直接触发 HRTIM 故障关断。 - 接收端过流保护：充电电流进 ADC 和片内比较器，比较器阈值用片内 1.19 V 基准，对应约 11.9 A。 - 防倒灌：同步 Buck 上管的体二极管会让超级电容反向放电到 VRECT，所以输出端串联 LM74700 + N-MOS 理想二极管，由 MCU 的 CHGEN 控制。 - 接收端的辅助电源只从 VRECT 取电。小车离开发射线圈后，接收端 MCU 掉电，Buck 停止，理想二极管关断。 - 发射与接收的地完全隔离（GND / GNDRX）。
Main components on the P1 rx
P1 rx bill of materials (BOM)
86 components, 44 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | UCC27211 | HVSON-8-1EP_4x4mm_P0.8mm_EP2.2x3.1mm | U701 |
| 1 | INA240A2D | SOIC-8_3.9x4.9mm_P1.27mm | U801 |
| 1 | LM74700 | SOT-23-6 | U802 |
| 2 | LMR16006X | SOT-23-6 | U901, U902 |
| 1 | TC2185-3.3 | SOT-23-5 | U903 |
| 1 | STC32G12K128 | LQFP-48_7x7mm_P0.5mm | U1001 |
| 3 | BSC070N10NS3G | Infineon_PG-TDSON-8_6.15x5.15mm | Q701, Q702, Q801 |
| 1 | RX_COIL | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J601 |
| 1 | XT60_SUPERCAP | AMASS_XT60PW-M_1x02_P7.20mm_Horizontal | J801 |
| 1 | ISP | PinHeader_1x04_P2.54mm_Vertical | J1001 |
| 1 | UART_LINK | PinHeader_1x04_P2.54mm_Vertical | J1002 |
| 4 | SB2060L | D_PowerDI-5 | D601, D602, D603, D604 |
| 1 | SMCJ33A | D_SMC | D605 |
| 1 | SMAJ26A | D_SMA | D801 |
| 2 | SS110 | D_SMA | D901, D902 |
| 1 | LED_G | LED_0603_1608Metric | D1001 |
| 1 | 600R@100MHz | L_0603_1608Metric | FB1001 |
| 1 | 15uH | L_Coilcraft_XAL1510-153 | L701 |
| 1 | 56uH | L_Taiyo-Yuden_NR-50xx | L901 |
| 1 | 33uH | L_Taiyo-Yuden_NR-50xx | L902 |
Show 24 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 56nF | C_1812_4532Metric | C601 |
| 1 | 4.7nF | C_1812_4532Metric | C602 |
| 1 | 470pF | C_1812_4532Metric | C603 |
| 1 | 100uF | CP_Elec_10x10.5 | C604 |
| 3 | 10uF | C_1812_4532Metric | C605, C704, C705 |
| 2 | 100nF | C_0805_2012Metric | C606, C706 |
| 16 | 100nF | C_0603_1608Metric | C607, C702, C709, C801, C803, C805, C806, C902 +8 |
| 1 | 2.2uF | C_0805_2012Metric | C701 |
| 1 | 220nF | C_0805_2012Metric | C703 |
| 5 | 22uF | C_1210_3225Metric | C707, C708, C804, C904, C909 |
| 1 | 1nF | C_0603_1608Metric | C802 |
| 2 | 4.7uF | C_1210_3225Metric | C901, C906 |
| 3 | 1uF | C_0603_1608Metric | C911, C913, C1004 |
| 1 | 10nF | C_0603_1608Metric | C912 |
| 1 | 22uF | C_1206_3216Metric | C1002 |
| 2 | 150k | R_0603_1608Metric | R601, R804 |
| 7 | 10k | R_0603_1608Metric | R602, R703, R704, R805, R903, R906, R1001 |
| 2 | 10R | R_0603_1608Metric | R701, R702 |
| 1 | 2m | R_Shunt_Vishay_WSK2512_6332Metric_T1.19mm | R801 |
| 1 | 100 | R_0603_1608Metric | R802 |
| 3 | 100k | R_0603_1608Metric | R803, R901, R904 |
| 1 | 147k | R_0603_1608Metric | R902 |
| 1 | 54.9k | R_0603_1608Metric | R905 |
| 1 | 1k | R_0603_1608Metric | R1002 |
P1 rx design files
The KiCad project lives in the Deco025/resonare repository on GitHub; these links point at the commit this page was built from.
- Layoutp1_rx/p1_rx.kicad_pcb
- Schematicp1_rx/p1_rx.kicad_sch
- BOMp1_rx/fab/p1_rx-bom.csv
P1 rx: common questions
How big is the P1 rx PCB?
The P1 rx measures 75 × 60 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the P1 rx?
86 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the P1 rx design files?
From the Deco025/resonare repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the P1 rx design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Deco025 chose for the repository.
