MyDevboard PCB layout, top view — open source RP2040/RP2350 board by Dee-24r

About the MyDevboard PCB

MyDevboard is an open source RP2040/RP2350 PCB design by Dee-24r, published on GitHub. It is a 2-layer board measuring 21.5 × 52.2 mm, with 36 components from 18 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the MCP1700X-330XXTT and W25Q16JVZPIQ TR. By type, the board carries 16 capacitors, 9 resistors, 4 connectors, 3 ICs, 2 diodes and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Custom RP2040 Devboard

It's purple when produced. look through all the images and journal.md!

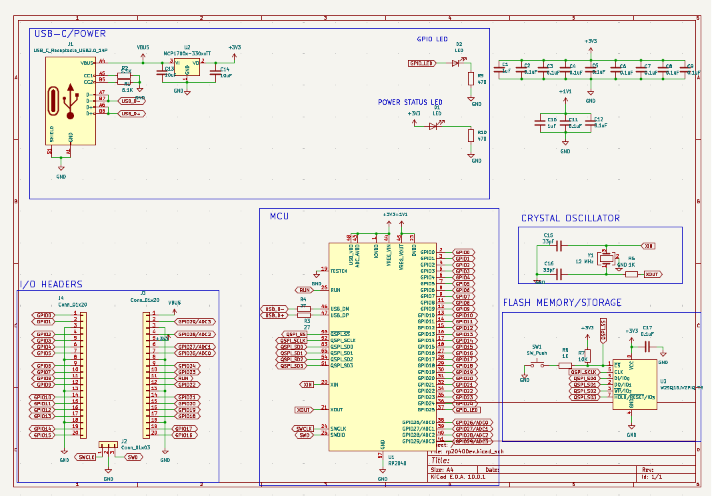

MyDevboard, from the project README
From the project README

Main components on the MyDevboard

RP2040MCP1700X-330XXTTW25Q16JVZPIQ TR

MyDevboard bill of materials (BOM)

36 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
MCP1700X-330XXTT
MCP1700x-330xxTT
U2
1
W25Q16JVZPIQ TR
U3
1
12 MHz
Y1
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
1
CONN_01X03
Conn_01x03
J2
2
CONN_01X20
Conn_01x20
J3, J4
1
SW_Push
SW1
2
LED
D1, D2
2
1UF
1uF
C1, C10
10
0.1UF
0.1uF
C2, C4, C5, C6, C7, C8, C9, C11 +2
2
10UF
10uF
C13, C14
2
33PF
33pF
C15, C16
2
5.1K
R1, R2
2
27
R3, R4
2
1K
R5, R6
1
10K
R7
2
470
R9, R10

MyDevboard design files

The KiCad project lives in the Dee-24r/MyDevboard repository on GitHub; these links point at the commit this page was built from.

MyDevboard: common questions

What microcontroller does the MyDevboard use?

The MyDevboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the MyDevboard PCB?

The MyDevboard measures 21.5 × 52.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MyDevboard?

36 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MyDevboard design files?

From the Dee-24r/MyDevboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MyDevboard design in my own project?

The repository has no license, so all rights stay with Dee-24r. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MyDevboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
