About the MorphWatch-STM32 PCB

MorphWatch-STM32 is an open source STM32 PCB design by deebot, published on GitHub. It is a 4-layer board measuring 33.8 × 46 mm, with 63 components from 33 distinct parts.

Its main chip is the STM32L476RGTx, from the STM32 family. Other key parts include the ME6211C33M5G-N, TP4054, JDY-08 and MPU-6050. By type, the board carries 25 capacitors, 12 resistors, 6 diodes, 5 ICs, 5 connectors and 3 transistors.

It belongs with the wearables, usb & debug tools and displays & leds designs in this gallery.

From the project

The Repo contains KiCAD hardware files and software for Morph Watch

- Ultra Low Power Mode : In this mode the L476RG controller wakes up ever 1 minute to update the minutes and then sleeps. The 2 buttons are configures as external intruppts and can be pressed to wake up the controller and do other tasks like going though the Menu and getting the status of external senors or IMU data. This mode should give very long battery life

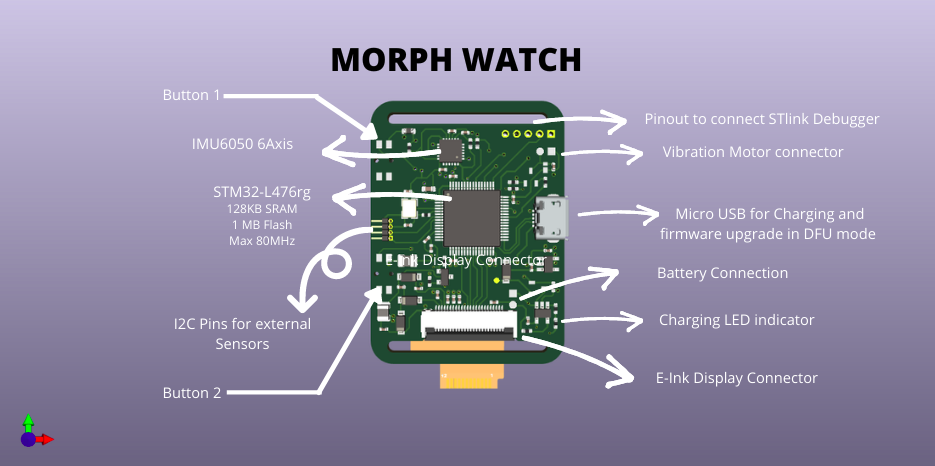

MorphWatch-STM32, from the project README
From the project README

Main components on the MorphWatch-STM32

ME6211C33M5G-NTP4054STM32L476RGTxJDY-08MPU-6050

MorphWatch-STM32 bill of materials (BOM)

63 components, 33 distinct parts.

QtyPartRefs
1
ME6211C33M5G-N
IC1
1
TP4054
U1
1
STM32L476RGTx
U2
1
JDY-08
U3
1
MPU-6050
U4
1
Motor_DC_ALT
M1
1
CJ2301_S1
Q1
1
DMN3042L
Q2
1
S8050
Q3
1
Crystal_GND24
Y1
1
USB
J1
1
Conn_01x24
J2
1
Conn_01x04
J3
1
Conn_01x02
J4
1
Conn_01x05
J5
1
SolderJumper_2_Open
JP1
2
GPTS203211B
S1, S2
4
MBR0530
D1, D2, D3, D4
1
LED
D5
1
Diode
D6
Show 13 more
QtyPartRefs
1
27uH
L1
1
27n
L2
3
4.7uf/50v
C1, C2, C10
7
1uf/50v
C3, C5, C6, C7, C8, C9, C23
2
1uf
C4, C13
12
C
C11, C12, C14, C15, C16, C17, C18, C19 +4
1
4.7uf
C25
3
10k
R1, R2, R4
1
3
R3
1
1k
R5
4
R
R6, R7, R8, R9
2
2.2k
R10, R11
1
5
R12

MorphWatch-STM32 design files

The KiCad project lives in the deebot/MorphWatch-STM32 repository on GitHub; these links point at the commit this page was built from.

MorphWatch-STM32: common questions

What microcontroller does the MorphWatch-STM32 use?

The MorphWatch-STM32 is built around the STM32L476RGTx, from the STM32 family.

How big is the MorphWatch-STM32 PCB?

The MorphWatch-STM32 measures 33.8 × 46 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the MorphWatch-STM32?

63 components, from 33 distinct parts. The full bill of materials is listed on this page.

Where can I download the MorphWatch-STM32 design files?

From the deebot/MorphWatch-STM32 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the MorphWatch-STM32 design in my own project?

The repository has no license, so all rights stay with deebot. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MorphWatch-STM32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
