LSwarm-Anchor PCB layout, top view — open source ESP32 board by DerpyDoggo11

About the LSwarm-Anchor PCB

LSwarm-Anchor is an open source ESP32 PCB design by DerpyDoggo11, published on GitHub. It is a 4-layer board measuring 94.5 × 31 mm, with 52 components from 28 distinct parts.

Its main chip is the ESP32-C3-MINI-1U-N4, from the ESP32 family. Other key parts include the BQ24075RGTR, BU03, DW03C and AP2112K-3.3. By type, the board carries 21 resistors, 16 capacitors, 5 ICs, 3 LEDs, 1 transistor and 1 battery holder.

It belongs with the robotics & motion, rf & radio and iot & wireless designs in this gallery.

From the project

I have not physically tested this device yet, but typically UWB modules can have a range of up to 100 meters or around 300 feet, which is more than enough for many applications. Also, UWB frequenceis can work through walls, but it may be less accurate or cause desyncing with the

I have not physically tested this device yet, but typically UWB modules can have a range of up to 100 meters or around 300 feet, which is more than enough for many applications. Also, UWB frequenceis can work through walls, but it may be less accurate or cause desyncing with the drone.

Note: These anchors do not actively run the computations to position the drones, you must also have a dedicated ground station with wifi such as a Raspbbery PI Zero 2 W for computing.

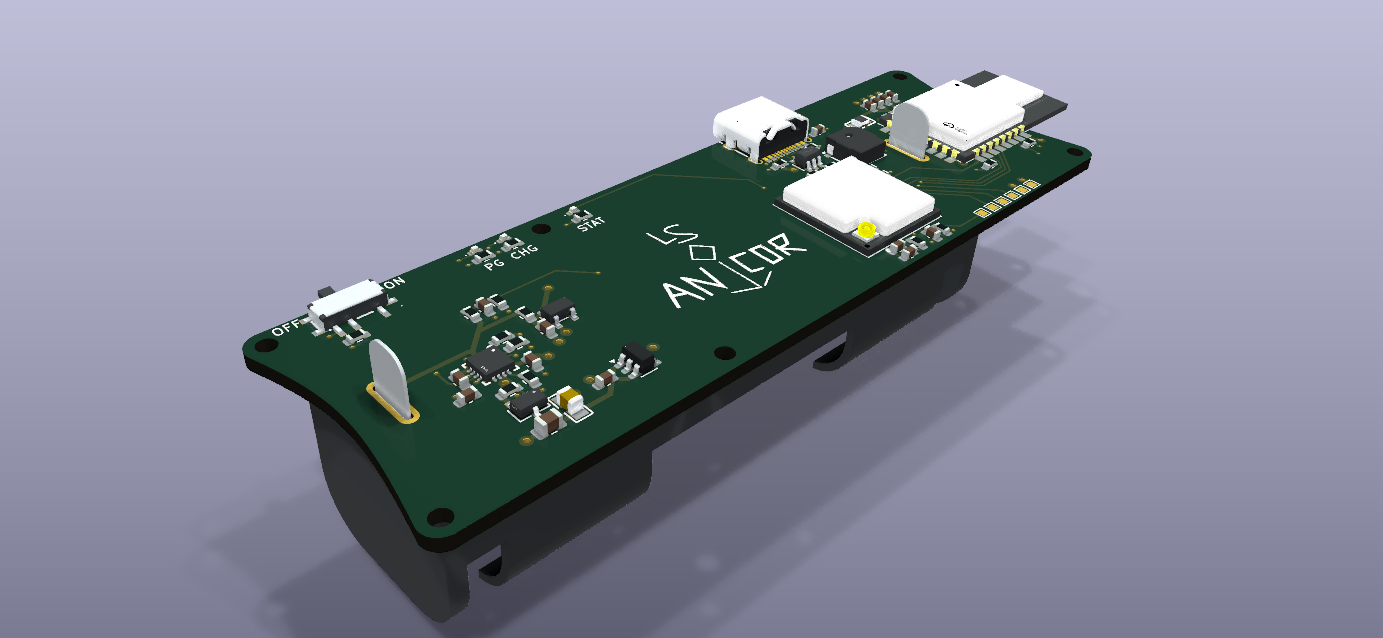

LSwarm-Anchor, from the project README
From the project README

Main components on the LSwarm-Anchor

BQ24075RGTRBU03DW03CESP32-C3-MINI-1U-N4AP2112K-3.3

LSwarm-Anchor bill of materials (BOM)

52 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BQ24075RGTR
TI(德州仪器)
U1
1
BU03
Ai-Thinker(安信可)
U2
1
DW03C
DW03C_C41367942
PJSEMI(平晶微)
U4
1
ESP32-C3-MINI-1U-N4
ESPRESSIF(乐鑫)
U6
1
AP2112K-3.3
U12
1
AO3407A
AOS
Q7
1
BH-18650-A1AJ006
MYOUNG(美阳)
BT1
1
MLT-5020
华能
BUZZER2
1
MSK12C02
SHOU HAN(首韩)
SW1
1
USB-TYPE-C-018
DEALON(德艺隆)
USB1
3
KT-0603R
KENTO
LED4, LED5, LED6
1
USBLC6-2SC6
USBLC6-2SC6_C2687116
UMW(友台半导体)
D5
1
MPZ2012S601AT000
TDK
L1
1
CL21A226MAQNNNE
SAMSUNG(三星)
C1
1
10NF
10nF
C27
5
1UF
1uF
C31, C32, C41, C52, C65
3
10UF
10uF
C40, C55, C62
5
100NF
100nf
C56, C58, C59, C61, C71
1
10uF
C71C1
4
1k
R9, R21, R24, R29
Show 8 more
QtyPartRefs
1
1.5k
R11
6
10k
R12, R18, R23, R32, R33, R39
1
470
R16
2
220k
R25, R26
1
100
R27
2
100k
R28, R40
2
5.1k
R34, R37
2
27
R35, R36

LSwarm-Anchor design files

The KiCad project lives in the DerpyDoggo11/LSwarm-Anchor repository on GitHub; these links point at the commit this page was built from.

LSwarm-Anchor: common questions

What microcontroller does the LSwarm-Anchor use?

The LSwarm-Anchor is built around the ESP32-C3-MINI-1U-N4, from the ESP32 family.

How big is the LSwarm-Anchor PCB?

The LSwarm-Anchor measures 94.5 × 31 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the LSwarm-Anchor?

52 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LSwarm-Anchor design files?

From the DerpyDoggo11/LSwarm-Anchor repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LSwarm-Anchor design in my own project?

The repository has no license, so all rights stay with DerpyDoggo11. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LSwarm-Anchor without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
