About the Jazz PCB

Jazz is an open source ESP32 PCB design by devisunofficial, published on GitHub. It is a 2-layer board measuring 38.5 × 30.2 mm, with 20 components from 17 distinct parts.

Its main chip is the XIAO-ESP32-S3-DIP, from the ESP32 family. Other key parts include the TLV75533PDBVR, BQ24040DSQT and MAX98357AETE+T. By type, the board carries 7 capacitors, 7 resistors, 4 ICs and 1 diode.

It belongs with the audio, power & battery and iot & wireless designs in this gallery.

From the project

Jazz is a bluetooth speaker that uses ESP32 for bluetooth connection

Jazz is a bluetooth speaker that uses ESP32 for bluetooth connection

It focuses on minimalism and uses Audiophile grade equipments for good soundquality

- Compact design - Capacitive Sensor to enter pairing mode - Toggle switch to On-Off speaker. - Daytone Speaker and Passive Radiator

CREDITS https://www.thingiverse.com/zx82net

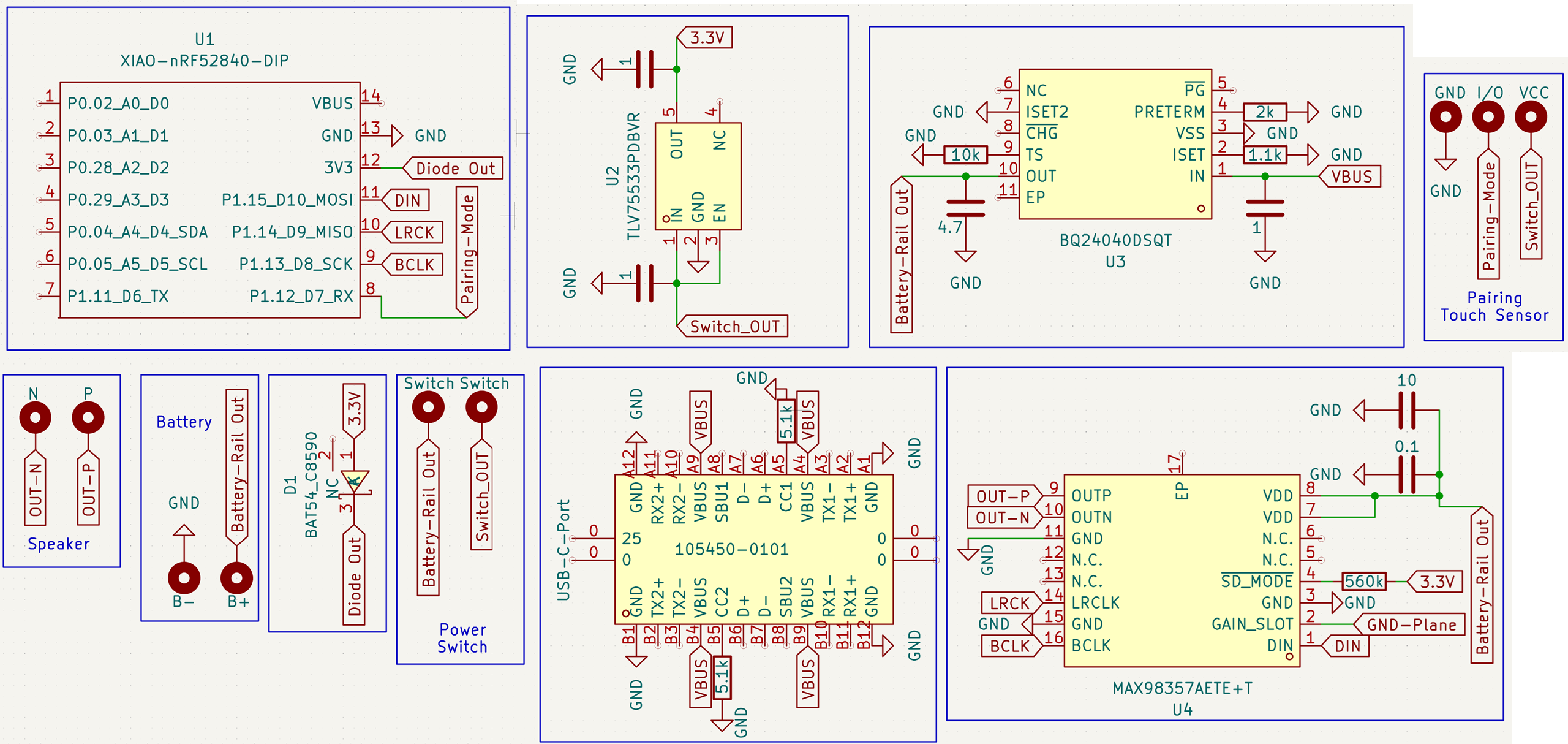

Jazz, from the project README
From the project README

Main components on the Jazz

TLV75533PDBVRBQ24040DSQTMAX98357AETE+TXIAO-ESP32-S3-DIP

Jazz bill of materials (BOM)

20 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV75533PDBVR
TI(德州仪器)
U2
1
BQ24040DSQT
TI(德州仪器)
U3
1
MAX98357AETE+T
ADI(亚德诺)/MAXIM(美信)
U4
1
XIAO-ESP32-S3-DIP
U5
1
1054500101
105450-0101
MOLEX
USB-C-Port1
1
BAT54
BAT54_C8590
CJ(江苏长电/长晶)
D1
1
0.1
C1
1
10
C2
3
1
C3, C5, C6
1
4.7
C4
1
4.7n
C7
1
560k
R1
1
1.1k
R2
1
2k
R3
1
10k
R4
2
5.1k
R5, R6
1
1M
R7

Jazz design files

The KiCad project lives in the devisunofficial/Jazz repository on GitHub; these links point at the commit this page was built from.

Jazz: common questions

What microcontroller does the Jazz use?

The Jazz is built around the XIAO-ESP32-S3-DIP, from the ESP32 family.

How big is the Jazz PCB?

The Jazz measures 38.5 × 30.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Jazz?

20 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Jazz design files?

From the devisunofficial/Jazz repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Jazz design in my own project?

The repository has no license, so all rights stay with devisunofficial. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Jazz without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
