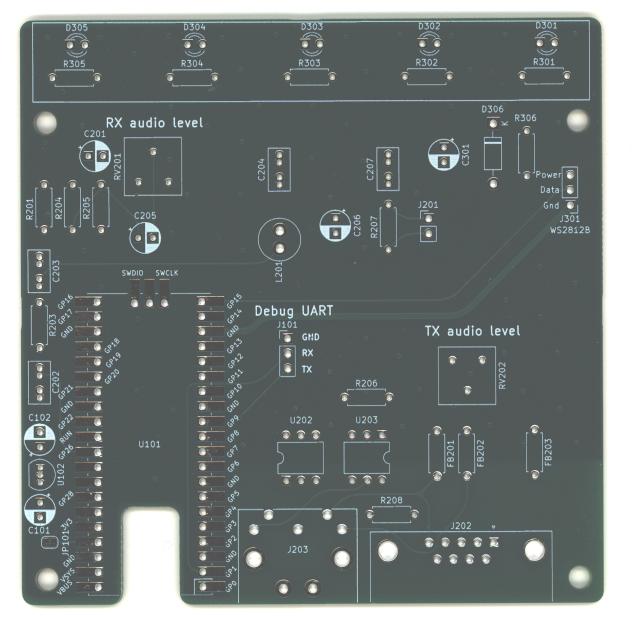

OpenTNC-Pico twolayer PCB layout, top view — open source RP2040/RP2350 board by devzendo

About the OpenTNC-Pico twolayer PCB

OpenTNC-Pico twolayer is an open source RP2040/RP2350 PCB design by devzendo, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 99.1 × 99.1 mm, with 40 components from 20 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the LP2950-3.3 and 4N32. By type, the board carries 14 resistors, 8 capacitors, 6 diodes, 4 inductors, 3 ICs and 1 module.

From the project

A clone of David Platt AE6EO's OpenTNC, with M0CUV modifications.

First board manufactured. Two usable prototypes built.

Found one error in the Gerbers - an open trace in the RX-audio line, between the radio connectors and the ferrite bead. The "Round traces" KiCAD script I'd used mis-handled the trace junction for some reason, and (my bad!) I failed to run the design-rules check after rounding the traces. Won't make that mistake again any time soon. One blue-wire fix for this error is required to make the 0.3 board usable.

OpenTNC-Pico twolayer, from the project README
From the project README

Main components on the OpenTNC-Pico twolayer

LP2950-3.34N32RaspberryPi_Pico

OpenTNC-Pico twolayer bill of materials (BOM)

40 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LP2950-3.3
U102
2
4N32
U202, U203
1
RaspberryPi_Pico
A101
1
CP-2350
SDS-50J‎
J203
1
Jumper_2_Small_Open
JP203
1
5k
RV201
1
100
5k
RV202
5
LED
D301, D302, D303, D304, D305
1
1N4001
D306
3
1934-1416-1
FerriteBead_Small
FB201, FB202, FB203
1
10M
10m
L201
5
10U
10u
C101, C102, C201, C205, C206
1
1N
C202
1
22N
3.9N
C203
1
100U
100u
C301
5
1k
R201, R206, R208, R209, R306
1
2.2K
2.2k
R203
2
100K
100k
R204, R205
1
100
R210
5
470
R301, R302, R303, R304, R305

OpenTNC-Pico twolayer design files

The KiCad project lives in the devzendo/OpenTNC repository on GitHub; these links point at the commit this page was built from.

OpenTNC-Pico twolayer: common questions

What microcontroller does the OpenTNC-Pico twolayer use?

The OpenTNC-Pico twolayer is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the OpenTNC-Pico twolayer PCB?

The OpenTNC-Pico twolayer measures 99.1 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the OpenTNC-Pico twolayer?

40 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the OpenTNC-Pico twolayer design files?

From the devzendo/OpenTNC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the OpenTNC-Pico twolayer design in my own project?

Yes, under the terms of its GPL-3.0 license, which devzendo chose for the repository.

Can I test firmware for the OpenTNC-Pico twolayer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
