About the Steppenprobe PCB

Steppenprobe is an open source PCB design by diegoherranz, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 50 × 60 mm, with 75 components from 26 distinct parts.

Other key parts include the FT2232HL, XC6206P332MR, SRV05-4HTG-D, 93LCxxB and 74LVC1G125GW,125. By type, the board carries 25 resistors, 22 capacitors, 12 ICs, 6 diodes, 3 connectors and 3 inductors.

It belongs with the usb & debug tools designs in this gallery.

From the project

Open Source Hardware JTAG/SWD/UART/SWO interface board

https://github.com/diegoherranz/steppenprobe

- Open Source Hardware and designed in KiCad. - FT2232H-based - Simultaneous operation of JTAG/SWD and UART/SWO. - STDC14 connector: standard Arm Cortex debug connector (1.27 mm pitch) with extra pins for UART. JTAG/SWD and UART on a single connector while being compatible with the standard Arm Cortex debug connector (middle 10 pins). - USB powered: no power supply needed. - USB type-C receptacle: more convenient (reversible) and future-proof (it should be the most common connector during the next few years). - OpenOCD compatible, supported from…

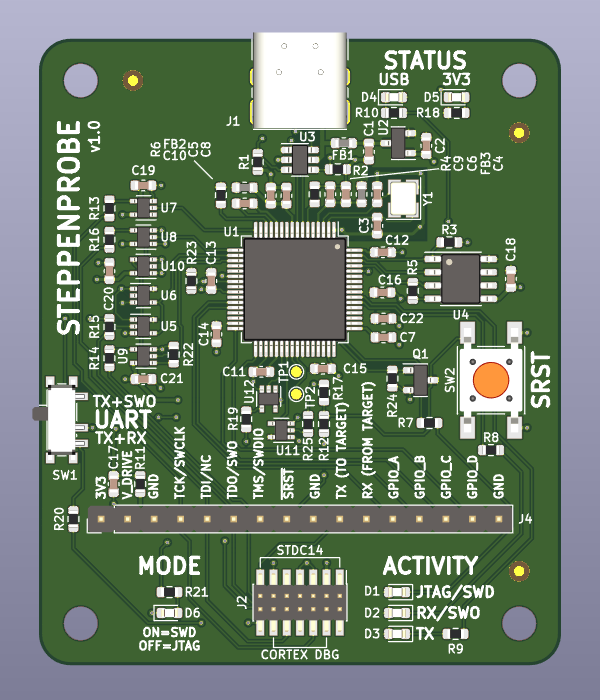

Steppenprobe, from the project README
From the project README

Main components on the Steppenprobe

Steppenprobe bill of materials (BOM)

75 components, 26 distinct parts.

QtyPartRefs
1
FT2232HL
FTDI
U1
1
XC6206P332MR
XC6206PxxxMR
Torex Semiconductor
U2
1
SRV05-4HTG-D
SRV05-4
Littelfuse
U3
1
93LCxxB
U4
7
74LVC1G125GW,125
74LVC1G125
Nexperia
U5, U7, U8, U9, U10, U11, U12
1
74LVC1G126GW,125
74LVC1G126
Nexperia
U6
1
2N7002-7-F
2N7002
Diodes Incorporated
Q1
1
ABM8-12.000MHZ-20-B1U-T
Crystal_GND24
Abracon LLC
Y1
1
USB4085-GF-A
USB_C_Receptacle_USB2.0
GCT
J1
1
FTSH-107-01-F-DV-K (if 14-way)
Conn_ST_STDC14
Samtec
J2
1
M20-9991645
Conn_01x16
Harwin
J4
1
EG1215AA
SW_SPDT
E-Switch
SW1
1
PTS645SK43SMTR92 LFS
SW_Push
C&K
SW2
6
19-217/GHC-YR1S2/3T
LED
Everlight Elec
D1, D2, D3, D4, D5, D6
3
BLM18KG121TN1D
Ferrite_Bead
Murata Electronics
FB1, FB2, FB3
6
CL10A475KO8NNNC
4u7
Samsung Electro-Mechanics
C1, C2, C5, C6, C7, C17
2
C0603C270J5GAC
27pF
Kemet
C3, C4
13
CC0603KRX7R9BB104
100nF
Yageo
C8, C9, C10, C11, C12, C13, C14, C15 +5
1
100nF
C18
2
5k1
R1, R2
Show 6 more
QtyPartRefs
6
10k
R3, R6, R17, R22, R23, R24
1
12k
R4
1
2k
R5
6
1k
R7, R8, R9, R10, R18, R21
8
100R
R11, R12, R13, R14, R15, R16, R19, R20
1
100k
R25

Steppenprobe design files

The KiCad project lives in the diegoherranz/steppenprobe repository on GitHub; these links point at the commit this page was built from.

Steppenprobe: common questions

How big is the Steppenprobe PCB?

The Steppenprobe measures 50 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Steppenprobe?

75 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Steppenprobe design files?

From the diegoherranz/steppenprobe repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Steppenprobe design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which diegoherranz chose for the repository.
