About the Eurorack-3310-ADSR PCB

Eurorack-3310-ADSR is an open source PCB design by DIYSynthMNL, published on GitHub. It is a board, with 69 components from 30 distinct parts.

Other key parts include the TL074 and KA78M05_TO252. By type, the board carries 30 resistors, 14 capacitors, 8 connectors, 4 ICs and 4 diodes.

It belongs with the audio designs in this gallery.

From the project

This is an ADSR based on the AS3310 chip

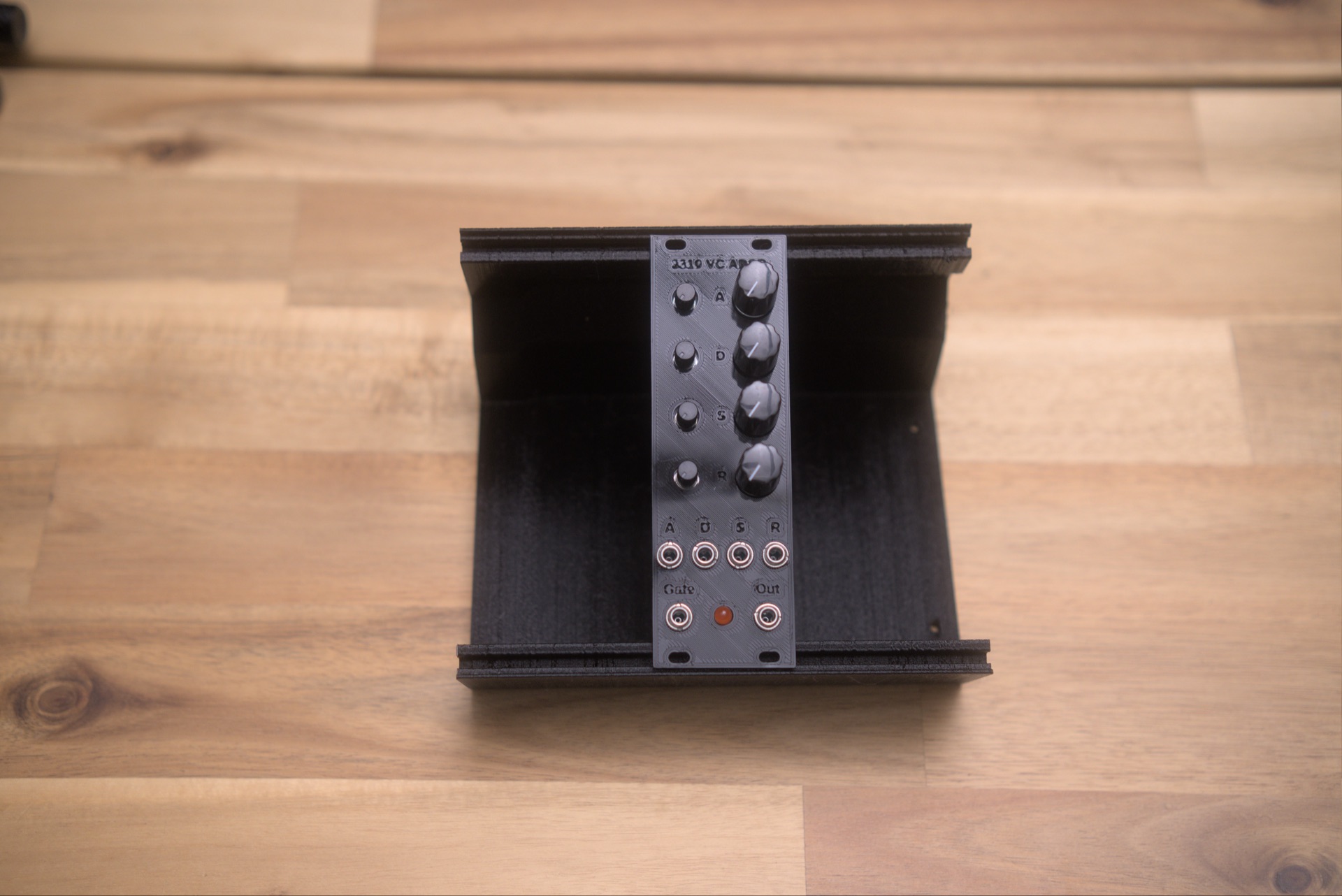

A Eurorack ADSR envelope generator built around the AS3310 chip from Electric Druid — a precision voltage-controllable ADSR with a 100,000:1 time range, isolated control inputs, and a true exponential RC envelope shape. Each of Attack, Decay, Sustain, and Release has both a front-panel knob and a CV input with attenuator.

- Full voltage-controlled ADSR — A, D, S, R each have a panel pot and a CV input with attenuator - 100,000:1 time range (2 ms to 20 s per datasheet) via the AS3310's exponential time control - Independent gate and trigger — internal differentiator generates a trigger pulse…

Main components on the Eurorack-3310-ADSR

TL074KA78M05_TO252

Eurorack-3310-ADSR bill of materials (BOM)

69 components, 30 distinct parts.
