Fujinet devkit shield

djtersteegc·fujinet-devkit-shield

Fujinet devkit shield layout, top view — open source ESP32 board by djtersteegc

About the Fujinet devkit shield

Fujinet devkit shield is an open source ESP32 PCB design by djtersteegc, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 99.1 × 55.9 mm, with 40 components from 30 distinct parts.

Its main chip is the ESP32-DEVKITC-VE, from the ESP32 family. Other key parts include the SN74LS07N. By type, the board carries 16 resistors, 9 connectors, 5 capacitors, 4 diodes, 3 ICs and 3 switches.

It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.

From the project

FujiNet compatible hardware that allows you to build your own using all THT components and an Espressif devkit board.

This is an alternative hardware platform for FujiNet that allows you to build your own using all through-hole technology (THT) components and an Espressif ESP32-DevKitC-VE devkit board. You could probably also use a ESP32-DevKitC-VIE board, but you will need to either use an external IPEX connected antenna or engage in some micro soldering since the on-board PCB antenna is not connected by default. You must use ESP32-WROVER based devkit boards, the cheaper ESP32-WROOM boards lack the PSRAM needed by FujiNet code these days.

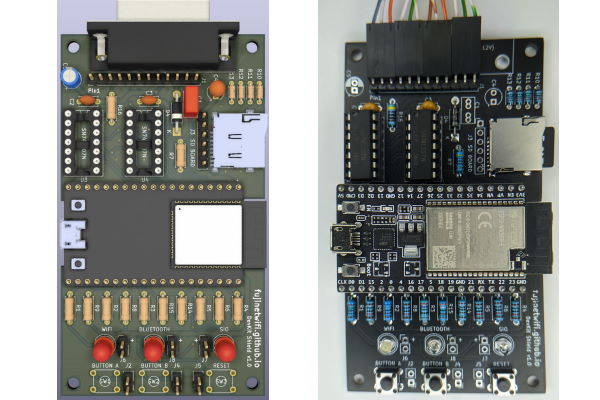

Fujinet devkit shield, from the project README
From the project README

Main components on the Fujinet devkit shield

ESP32-DEVKITC-VESN74LS07N

Fujinet devkit shield bill of materials (BOM)

40 components, 30 distinct parts.

QtyPartRefs
1
ESP32-DEVKITC-VE
U1
2
SN74LS07N
U3, U4
1
SIO (No 12V)
J1
1
Conn_BUTTON_A
J2
1
SD BOARD
J3
1
Conn_BUTTON_B
J4
1
Conn_BUTTON_RESET
J5
1
Conn_WHITE_LED
J6
1
Conn_ORANGE_LED
J7
1
Conn_BLUE_LED
J8
1
ST-TF-003A
P1
1
BUTTON A
SW1
1
BUTTON B
SW2
1
RESET
SW3
1
WIFI
D1
1
SIO
D2
1
BLUETOOTH
D3
1
1N5817
D4
1
4.7uF 6.3V
C1
2
0.1uf
C2, C3
Show 10 more
QtyPartRefs
1
10uF 10V
C4
1
10uf 6.3V
C5
2
1K
R1, R3
1
1.2K
R2
5
10K
R4, R5, R6, R8, R9
1
470
R7
4
10K
R10, R11, R12, R13
1
2K
R14
1
3.9K
R15
1
4.7K
R16

Fujinet devkit shield design files

The KiCad project lives in the djtersteegc/fujinet-devkit-shield repository on GitHub; these links point at the commit this page was built from.

Fujinet devkit shield: common questions

What microcontroller does the Fujinet devkit shield use?

The Fujinet devkit shield is built around the ESP32-DEVKITC-VE, from the ESP32 family.

How big is the Fujinet devkit shield?

The Fujinet devkit shield measures 99.1 × 55.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Fujinet devkit shield?

40 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Fujinet devkit shield design files?

From the djtersteegc/fujinet-devkit-shield repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Fujinet devkit shield design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which djtersteegc chose for the repository.

Can I test firmware for the Fujinet devkit shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
