Sbc6120-rbc front panel submini
About the Sbc6120-rbc front panel submini PCB
Sbc6120-rbc front panel submini is an open source PCB design by djtersteegc, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 200.7 × 106.7 mm, with 100 components from 76 distinct parts.
Other key parts include the 74HC373, 74HC174, 74HC366, ATF22V10 and 7555. By type, the board carries 28 diodes, 24 switches, 16 capacitors, 13 ICs, 13 resistors and 2 connectors.
From the project
Mini front panel option for the SBC6210
Project thread at https://forum.vcfed.org/index.php?threads/sbc6120-mini-front-panel.1245272/

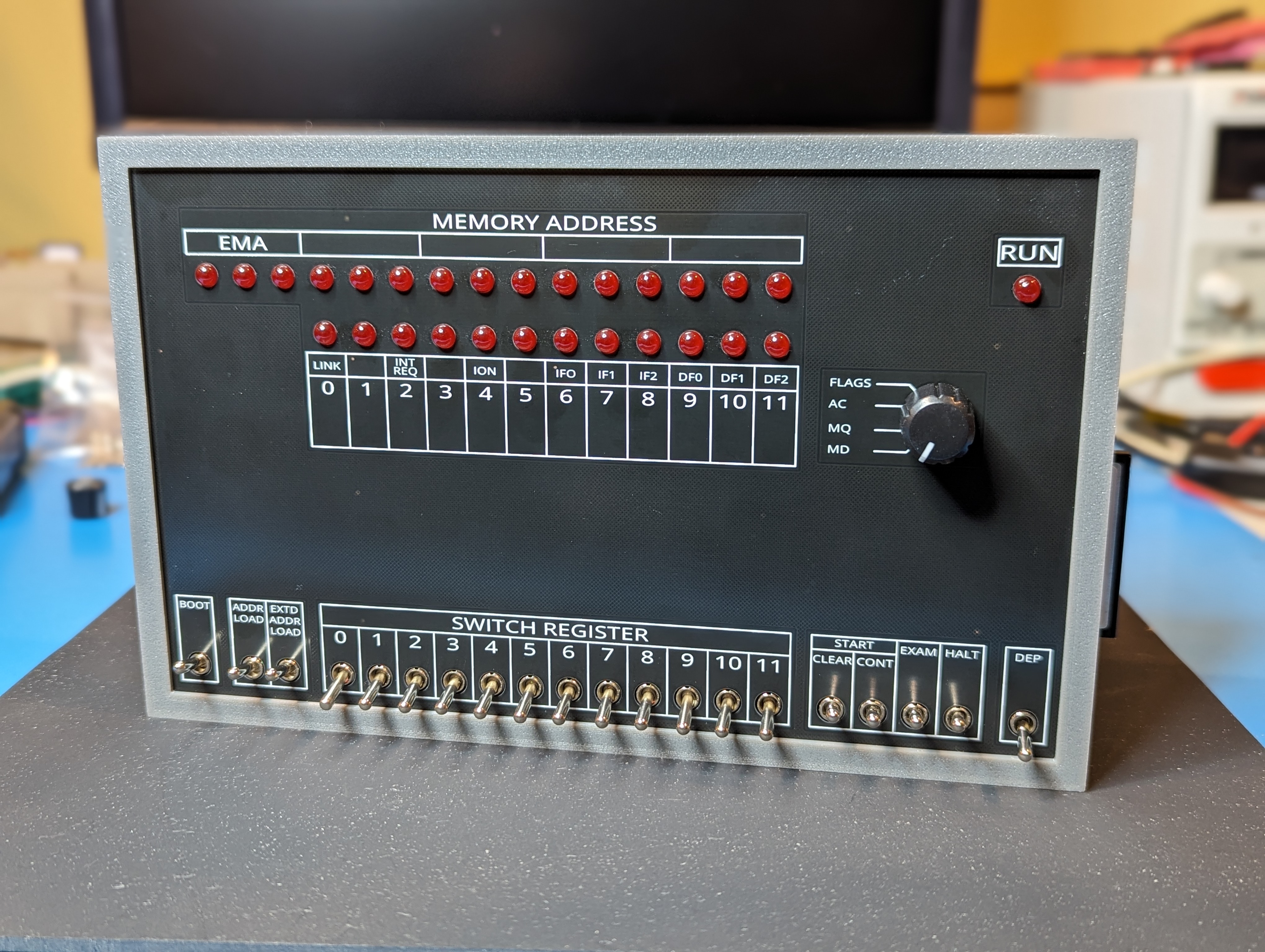

The current PCB and dress panel are drilled for miniature toggles with a 6mm diameter bushing/stem. 1/4-40 switches will NOT fit since I wanted a tight fit on the dress panel and the switches are spaced to tightly to use the dress nuts. Plus, I think this style looks nicer (same as an Altair 8800).
Main components on the Sbc6120-rbc front panel submini
Sbc6120-rbc front panel submini bill of materials (BOM)
100 components, 76 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74HC373 | DIP-20_W7.62mm_Socket | U1, U2 |
| 2 | 74HC174 | DIP-16_W7.62mm_Socket | U3, U4 |
| 4 | 74HC366 | DIP-16_W7.62mm_Socket | U5, U6, U9, U10 |
| 1 | ATF22V10 | DIP-24_W7.62mm_Socket | U7 |
| 1 | 7555 | DIP-8_W7.62mm_Socket | U8 |
| 1 | 74HC74 | DIP-14_W7.62mm_Socket | U11 |
| 1 | 74HC05 | DIP-14_W7.62mm_Socket | U12 |
| 1 | ATF16V8 | DIP-20_W7.62mm_Socket | U13 |
| 1 | CONN_02X25_ODD_EVEN Conn_02x25_Odd_Even | PinHeader_2x25_P2.54mm_Vertical | J1 |
| 1 | SBC CPREQ | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 4 | MountingHole | M2.5_12mm Standoff | H6, H7, H8, H9 |
| 1 | SR0 | SubMiniature Toggle Switch SPDT | SW1 |
| 1 | SR1 | SubMiniature Toggle Switch SPDT | SW2 |
| 1 | SR2 | SubMiniature Toggle Switch SPDT | SW3 |
| 1 | SR3 | SubMiniature Toggle Switch SPDT | SW4 |
| 1 | SR4 | SubMiniature Toggle Switch SPDT | SW5 |
| 1 | SR5 | SubMiniature Toggle Switch SPDT | SW6 |
| 1 | SR6 | SubMiniature Toggle Switch SPDT | SW7 |
| 1 | SR7 | SubMiniature Toggle Switch SPDT | SW8 |
| 1 | SR8 | SubMiniature Toggle Switch SPDT | SW9 |
Show 56 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SR9 | SubMiniature Toggle Switch SPDT | SW10 |
| 1 | SR10 | SubMiniature Toggle Switch SPDT | SW11 |
| 1 | SR11 | SubMiniature Toggle Switch SPDT | SW12 |
| 1 | BOOT | SubMiniature Toggle Switch SPDT | SW13 |
| 1 | LA | SubMiniature Toggle Switch SPDT | SW14 |
| 1 | LXA | SubMiniature Toggle Switch SPDT | SW15 |
| 1 | CLEAR | SubMiniature Toggle Switch SPDT | SW16 |
| 1 | CONT | SubMiniature Toggle Switch SPDT | SW17 |
| 1 | EXAM | SubMiniature Toggle Switch SPDT | SW18 |
| 1 | DEP | SubMiniature Toggle Switch SPDT | SW19 |
| 1 | HALT | SubMiniature Toggle Switch SPDT | SW20 |
| 1 | RM104772BCB SP4T | RM104772BCB | SW21 |
| 1 | PLOCK | PinHeader_1x03_P2.54mm_Vertical | SW22 |
| 1 | 30HZ | PinHeader_1x03_P2.54mm_Vertical | SW23 |
| 1 | ENABLE CONSOLE SLU BREAK REQ | PinHeader_1x03_P2.54mm_Vertical | SW24 |
| 1 | EMA0 | LED_D5.0mm | D1 |
| 1 | EMA1 | LED_D5.0mm | D2 |
| 1 | EMA2 | LED_D5.0mm | D3 |
| 1 | MA0 | LED_D5.0mm | D4 |
| 1 | MA1 | LED_D5.0mm | D5 |
| 1 | MA2 | LED_D5.0mm | D6 |
| 1 | MA3 | LED_D5.0mm | D7 |
| 1 | MA4 | LED_D5.0mm | D8 |
| 1 | MA5 | LED_D5.0mm | D9 |
| 1 | MA6 | LED_D5.0mm | D10 |
| 1 | MA7 | LED_D5.0mm | D11 |
| 1 | MA8 | LED_D5.0mm | D12 |
| 1 | MA9 | LED_D5.0mm | D13 |
| 1 | MA10 | LED_D5.0mm | D14 |
| 1 | MA11 | LED_D5.0mm | D15 |
| 1 | MD0 | LED_D5.0mm | D16 |
| 1 | MD1 | LED_D5.0mm | D17 |
| 1 | MD2 | LED_D5.0mm | D18 |
| 1 | MD3 | LED_D5.0mm | D19 |
| 1 | MD4 | LED_D5.0mm | D20 |
| 1 | MD5 | LED_D5.0mm | D21 |
| 1 | MD6 | LED_D5.0mm | D22 |
| 1 | MD7 | LED_D5.0mm | D23 |
| 1 | MD8 | LED_D5.0mm | D24 |
| 1 | MD9 | LED_D5.0mm | D25 |
| 1 | MD10 | LED_D5.0mm | D26 |
| 1 | MD11 | LED_D5.0mm | D27 |
| 1 | RUN | LED_D5.0mm | D28 |
| 1 | 0.01UF | C_Disc_D5.1mm_W3.2mm_P5.00mm | C1 |
| 13 | 100NF | C_Disc_D5.1mm_W3.2mm_P5.00mm | C2, C3, C4, C5, C7, C8, C9, C10 +5 |
| 1 | 1UF 10V | C_Disc_D5.1mm_W3.2mm_P5.00mm | C6 |
| 1 | 470uF 10V | CP_Radial_D8.0mm_P3.50mm | C16 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 10.0K 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 10K 17.4K 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
| 4 | 560R | R_Array_SIP9 | RN1, RN2, RN3, RN4 |
| 2 | 4.7K | R_Array_SIP5 | RN5, RN7 |
| 1 | 4.7K | R_Array_SIP9 | RN6 |
| 1 | 4.7K | R_Array_SIP7 | RN8 |
| 1 | 4.7K | R_Array_SIP6 | RN9 |
Sbc6120-rbc front panel submini design files
The KiCad project lives in the djtersteegc/sbc6120-mini-front-panel repository on GitHub; these links point at the commit this page was built from.
Sbc6120-rbc front panel submini: common questions
How big is the Sbc6120-rbc front panel submini PCB?
The Sbc6120-rbc front panel submini measures 200.7 × 106.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sbc6120-rbc front panel submini?
100 components, from 76 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sbc6120-rbc front panel submini design files?
From the djtersteegc/sbc6120-mini-front-panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sbc6120-rbc front panel submini design in my own project?
Yes, under the terms of its GPL-2.0 license, which djtersteegc chose for the repository.
