DotBot-LH2-Shield

DotBots·DotBot-hardware·pcb/shields/lh2/DotBot-LH2-Shield.kicad_pcb

DotBot-LH2-Shield layout, top view — open source board by DotBots
Simulate this board

About the DotBot-LH2-Shield

DotBot-LH2-Shield is an open source PCB design by DotBots, published on GitHub under the BSD-3-Clause license. It is a 4-layer board measuring 29 × 27 mm, with 23 components from 13 distinct parts.

Other key parts include the ISM330DHCXTR, TS4231 and 497-13892-1-ND. By type, the board carries 8 capacitors, 4 resistors, 3 ICs, 3 transistors, 3 connectors and 2 diodes.

It belongs with the dev boards & breakouts, sensors and robotics & motion designs in this gallery.

From the project

DotBot hardware documents

This repository contains hardware projects for the DotBot robot: - the Kicad project for the main PCB and for the Lighthouse 2 shield PCB - the FreeCAD project for the mechanical parts (motor holders, ball caster wheel spacer and holder) that can be 3D printed - SVG files for the optional top hat. These files can be used with a laser cutter

This repository also provides a list of off-the-shelf components required to assemble the DotBot: - Pololu components (ball caster and encoder magnets) - Pololu wheels (if not using the 3D printed version) - Screws - Threaded inserts - 2 pins micro JST…

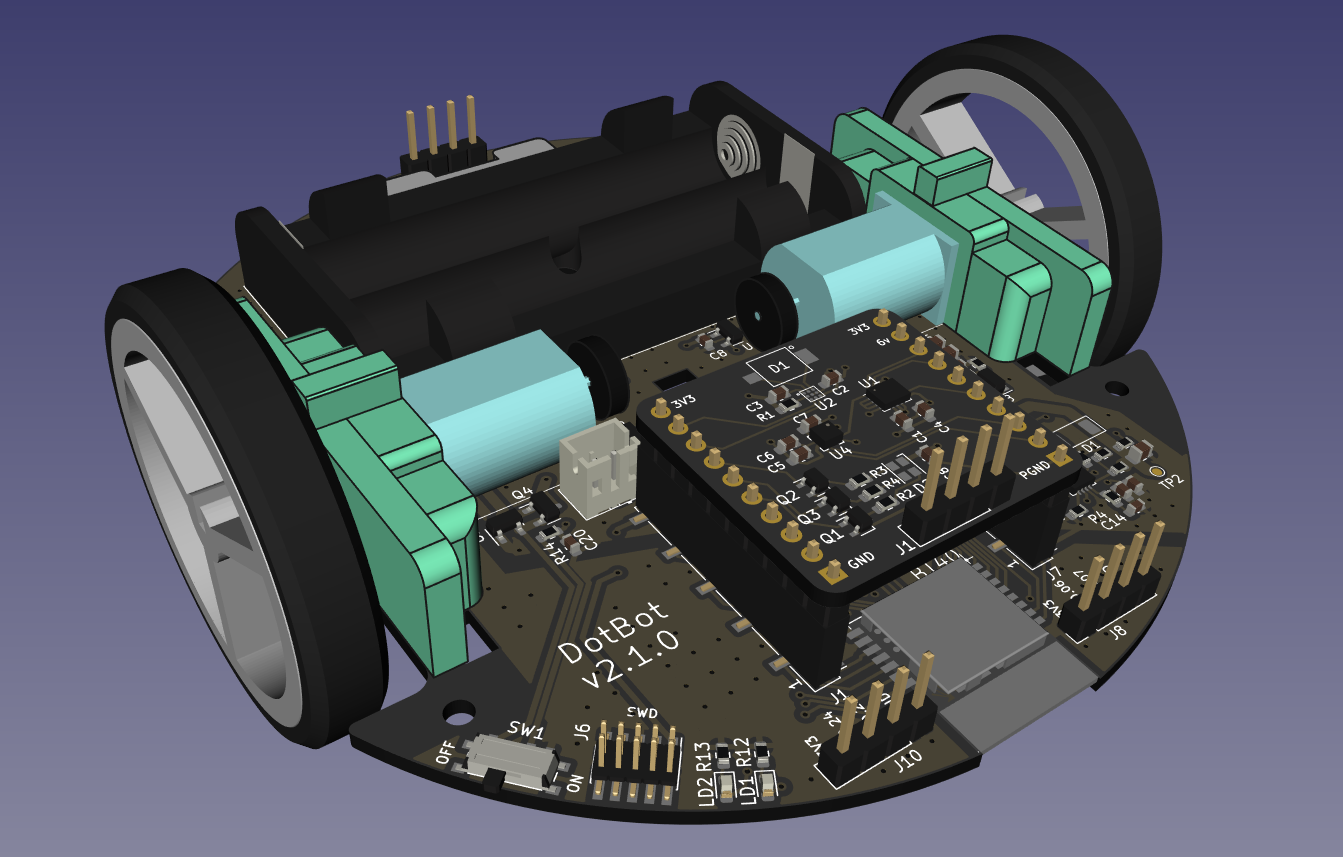

DotBot-LH2-Shield, from the project README
From the project README

Main components on the DotBot-LH2-Shield

ISM330DHCXTRTS4231497-13892-1-ND

DotBot-LH2-Shield bill of materials (BOM)

23 components, 13 distinct parts.

QtyPartRefs
1
ISM330DHCXTR
STMicroelectronics
U1
1
TS4231
U2
1
497-13892-1-ND
LIS3MDL
STMicroelectronics
U4
3
NX6008NBKWX
Nexperia USA Inc.
Q1, Q2, Q3
1
Conn_01x04
J1
2
Conn_01x10
J2, J3
1
BPW 34 S-Z
BPW34S
D1
1
CLMVC-FKA
D2
6
CL10B104KB8NNWC
100nF
Samsung Electro-Mechanics
C1, C2, C4, C5, C7, C8
2
1276-1102-1-ND
1uF
Samsung Electro-Mechanics
C3, C6
1
RC0603FR-0715KL
15k
R1
1
CRGCQ0603F1K0
1k
TE Connectivity Passive Product
R2
2
RC0603FR-07750RL
750
YAGEO
R3, R4

DotBot-LH2-Shield design files

The KiCad project lives in the DotBots/DotBot-hardware repository on GitHub; these links point at the commit this page was built from.

DotBot-LH2-Shield: common questions

How big is the DotBot-LH2-Shield?

The DotBot-LH2-Shield measures 29 × 27 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the DotBot-LH2-Shield?

23 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the DotBot-LH2-Shield design files?

From the DotBots/DotBot-hardware repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DotBot-LH2-Shield design in my own project?

Yes, under the terms of its BSD-3-Clause license, which DotBots chose for the repository.
