TeensyMaestro Main

DRWJSCHMIDT·K9HZ·KD0RC_Teensy_Maestro_Project/KD0RC_Teensy_Maestro_Originals/TeensyMaestro-Hardware-main/TeensyMaestro Main PCB/TeensyMaestro Main PCB.kicad_pcb

TeensyMaestro Main PCB layout, top view — open source board by DRWJSCHMIDT

About the TeensyMaestro Main PCB

TeensyMaestro Main is an open source PCB design by DRWJSCHMIDT, published on GitHub. It is a 2-layer board measuring 197.3 × 121.2 mm, with 107 components from 27 distinct parts.

Other key parts include the DEV-16771, LTV-817, MCP23008-XP and MCP23017-E/SP. By type, the board carries 63 capacitors, 15 connectors, 13 switches, 8 resistors, 5 ICs and 3 test points.

It belongs with the rf & radio designs in this gallery.

From the project

K9HZ Electronic Kits

The intent of this PCB is to simplify the build process, make it easier to produce a polished final product, and replace some components with less expensive alternatives.

- The slice tuning encoders are attached directly to the front panel, with openings in the main PCB to allow the encoders to pass through. - The front side of the PCB holds the display, encoders and push buttons. - The reverse side of the PCB holds the Teensy 4.1 micro controller, I/O Expanders, header connectors, resistors and capacitors.

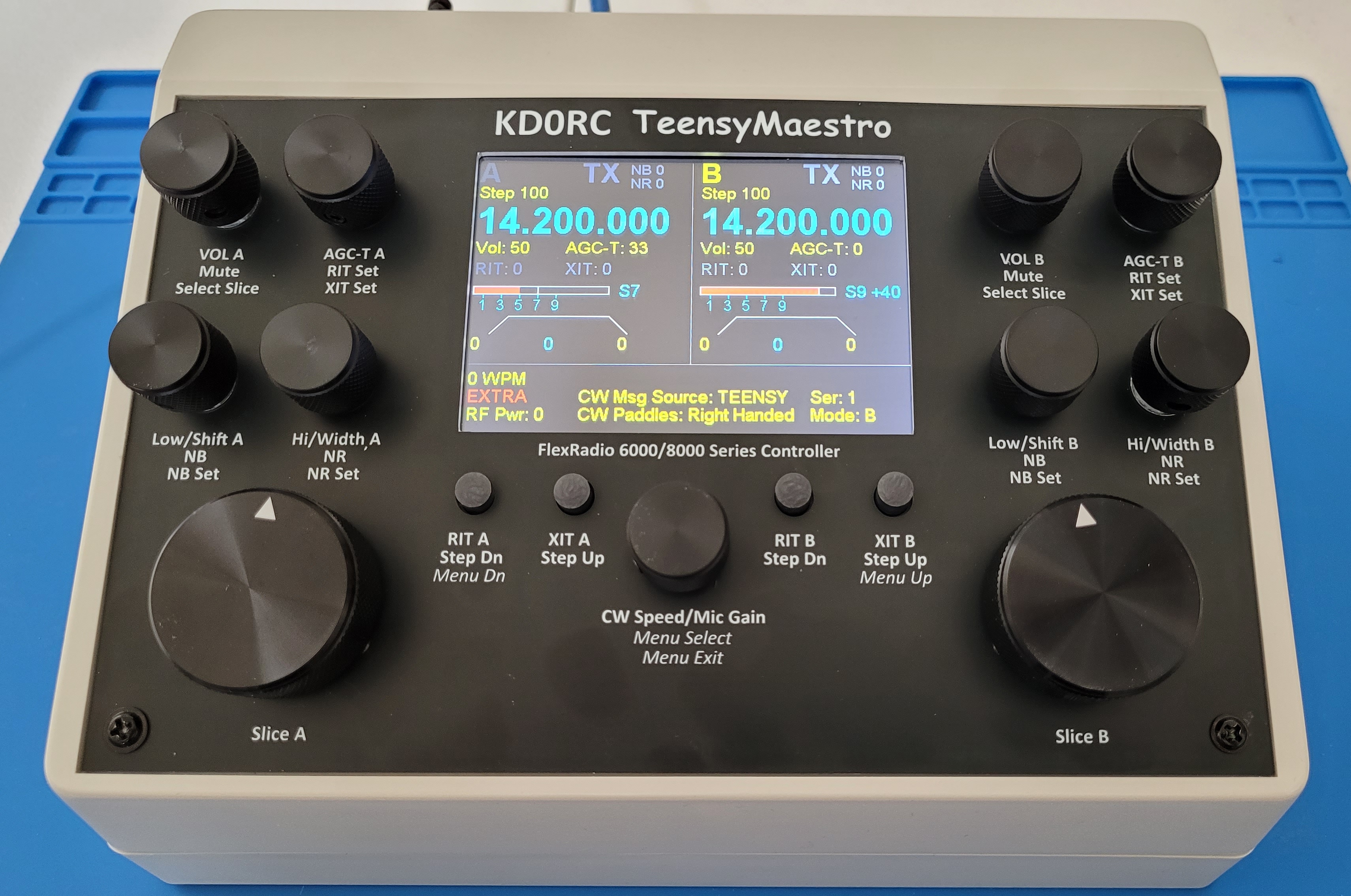

TeensyMaestro Main, from the project README
From the project README

Main components on the TeensyMaestro Main

DEV-16771LTV-817MCP23008-XPMCP23017-E/SP

TeensyMaestro Main bill of materials (BOM)

107 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DEV-16771
U1
1
LTV-817
Lite-On Inc.
U3
2
MCP23008-XP
MCP23008-xP
U4, U5
1
MCP23017-E/SP
MCP23017-E_SP
Microchip Technology
U7
2
B5B-XH-A(LF)(SN)
B5B-XH-A_LF__SN_
JST Sales America Inc.
J2, J4
9
B2B-XH-A(LF)(SN)
B2B-XH-A_LF__SN_
JST Sales America Inc.
J16, J17, J18, J19, J20, J21, J26, J27 +1
1
B3B-XH-A(LF)(SN)
B3B-XH-A_LF__SN_
JST Sales America Inc.
J22
1
B4B-PH-K-S(LF)(SN)
B4B-PH-K-S_LF__SN_
JST Sales America Inc.
J28
2
CONN_01X10
Conn_01x10
J36, J37
4
1825910-6
TE Connectivity ALCOSWITCH Switches
S1, S2, S3, S4
1
RotaryEncoder_Switch_MP
SW2
1
LowShift/NB A
SW3
1
HighWidth/NR A
SW4
1
AGC-T/RIT_Sel A
SW5
1
Vol/Mute B
SW7
1
LowShift/NB B
SW8
1
HighWidth/NR B
SW9
1
AGC-T/RIT_Sel A
SW10
1
CW_Mic/Menu Sel
SW11
1
5V
TP1
Show 7 more
QtyPartRefs
1
3V3
TP2
1
GND
TP3
63
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +55
4
1K
R1, R2, R3, R4
1
100
R5
1
1K
R6
2
4K7
R7, R8

TeensyMaestro Main design files

The KiCad project lives in the DRWJSCHMIDT/K9HZ repository on GitHub; these links point at the commit this page was built from.

TeensyMaestro Main: common questions

How big is the TeensyMaestro Main PCB?

The TeensyMaestro Main measures 197.3 × 121.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TeensyMaestro Main?

107 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TeensyMaestro Main design files?

From the DRWJSCHMIDT/K9HZ repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TeensyMaestro Main design in my own project?

The repository has no license, so all rights stay with DRWJSCHMIDT. Use it as a reference, and ask the author before reusing the design.
