DB-filter v1

echopen·PRJ-medtec_kit·electronic/daughter_boards/DB-filter/DB-filter_v1/src/DB-filter_v1.kicad_pcb

DB-filter v1 PCB layout, top view — open source board by echopen

About the DB-filter v1 PCB

DB-filter v1 is an open source PCB design by echopen, published on GitHub. It is a 2-layer board measuring 14 × 52.1 mm, with 4 components from 4 distinct parts.

By type, the board carries 1 connector, 1 inductor, 1 capacitor and 1 resistor.

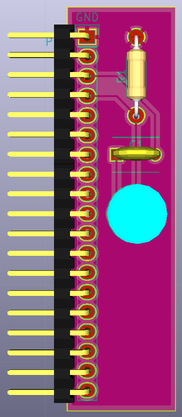

DB-filter v1, from the project README
From the project README

DB-filter v1 bill of materials (BOM)

4 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CONN_01X19
Molex
P1
1
10u
L1
1
10N
1n
Vishay
C1
1
2.2K
330
KOA speer
R1

DB-filter v1 design files

The KiCad project lives in the echopen/PRJ-medtec_kit repository on GitHub; these links point at the commit this page was built from.

DB-filter v1: common questions

How big is the DB-filter v1 PCB?

The DB-filter v1 measures 14 × 52.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DB-filter v1?

4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the DB-filter v1 design files?

From the echopen/PRJ-medtec_kit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the DB-filter v1 design in my own project?

The repository has no license, so all rights stay with echopen. Use it as a reference, and ask the author before reusing the design.
