Goblin

echopen·PRJ-medtec_kit·electronic/modules/hardware/MDL-analog_processing_ic/source/Kicad/goblin.kicad_pcb

Goblin PCB layout, top view — open source board by echopen

About the Goblin PCB

Goblin is an open source PCB design by echopen, published on GitHub. It is a 2-layer board measuring 35 × 50 mm, with 60 components from 23 distinct parts.

Other key parts include the LM555N, ADL5511ACPZ-R7, AD8691 and AD7274. By type, the board carries 25 capacitors, 14 resistors, 6 inductors, 4 ICs, 3 connectors and 3 relays.

From the project

Goblin: a TGC-Envelop-ADC module, MDL - goblin_tgcenvadc

Goblin: a TGC-Envelop-ADC module, MDL - goblin_tgcenvadc

The analog signal-processing heart of the echOmods version: V0.1 date: 24/04/2016 cost:150$ sourcing:Custom made, get the Gerbers, or on Tindie, or contact @kelu124 technology: Module-compatible, Homemade PCB, ICs based on AD8331 and ADL5511 language: Altium author: Kelu124

ITF-Agnd ITF-B5v ITF-S33v ITF-Ggaincontrol ITF-Camplifiedrawsignal : because it's used internally ITF-Esignalenvelope : because it's used internally ITF-Rreserved : for the signal coming from the pulser (if through track R) ITF-mETSMA` : for the signal coming from…

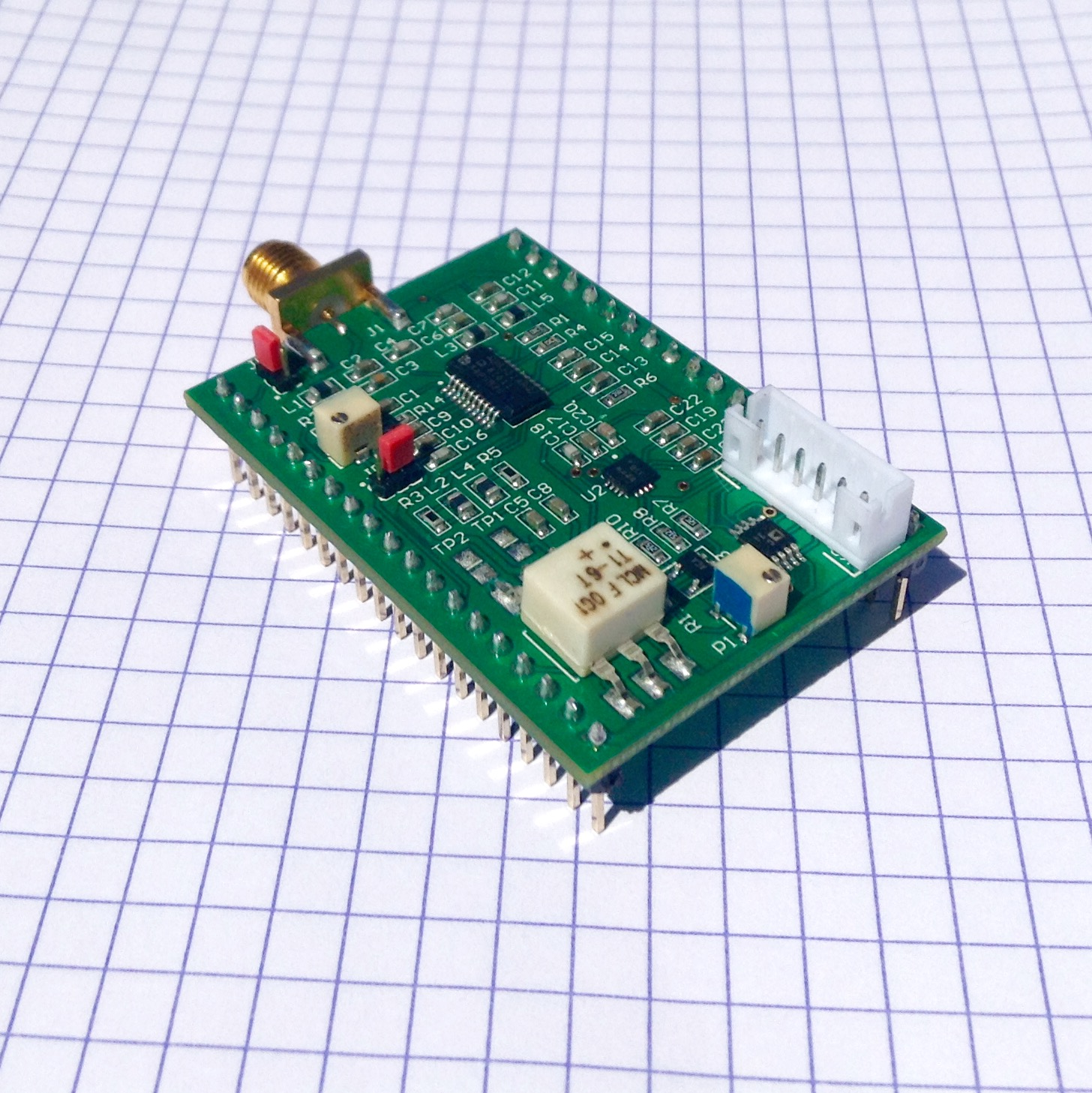

Goblin, from the project README
From the project README

Main components on the Goblin

LM555NADL5511ACPZ-R7AD8691AD7274

Goblin bill of materials (BOM)

60 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM555N
AD8331ARQZ
TI
U1
1
ADL5511ACPZ-R7
U2
1
AD8691
U3
1
AD7274
U4
1
SMA
J1
1
CONN_01X19
TrimPot
Molex
P1
1
CONN_01X02
TrimPot
Molex
P2
2
Jumper
Jumper1, Jumper2
2
Header19
K1, K2
1
Header6
K3
2
TP
TP1, TP2
1
RF_Transformer_1
TR1
6
Inductor
L1, L2, L3, L4, L5, L6
1
10N
Capacitor
Vishay
C1
1
47N
Capacitor
Vishay
C2
1
47U
Capacitor
Nichicon
C3
11
4.7U
Capacitor
Nichicon
C4, C5, C6, C7, C8, C9, C10, C11 +3
11
Capacitor
C15, C16, C17, C18, C19, C20, C21, C22 +3
1
2.2K
Resistor
KOA speer
R1
1
12K
Resistor
KOA speer
R2
Show 3 more
QtyPartRefs
1
3.3K
Resistor
KOA speer
R3
1
1.8K
Resistor
KOA speer
R4
10
Resistor
R5, R6, R7, R8, R9, R10, R11, R12 +2

Goblin design files

The KiCad project lives in the echopen/PRJ-medtec_kit repository on GitHub; these links point at the commit this page was built from.

Goblin: common questions

How big is the Goblin PCB?

The Goblin measures 35 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Goblin?

60 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Goblin design files?

From the echopen/PRJ-medtec_kit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Goblin design in my own project?

The repository has no license, so all rights stay with echopen. Use it as a reference, and ask the author before reusing the design.
