Tobo PCB layout, top view — open source board by echopen

About the Tobo PCB

Tobo is an open source PCB design by echopen, published on GitHub. It is a 2-layer board measuring 35.5 × 50 mm, with 23 components from 19 distinct parts.

Other key parts include the MD0100N8-G, HV7360LA-G and R05-100B. By type, the board carries 8 capacitors, 3 ICs, 3 connectors, 3 diodes, 2 relays and 2 test points.

From the project

Tobo: the HV-pulser, MDL - tobo_hvpulser

Tobo: the HV-pulser, MDL - tobo_hvpulser

The HV-Pulser of the echOmods version: V0.2 cost:120$ sourcing:Custom made, get the Gerbers, or contact @kelu124 date: 24/04/2016 technology: Module-compatible, Homemade PCB, ICs based on HV7360 and R05-100B language: Altium author: Kelu124

ITF-Agnd ITF-B5v ITF-Ipulseon ITF-Jpulseoff ITF-S33v ITF-mETTransducer` : signal coming back

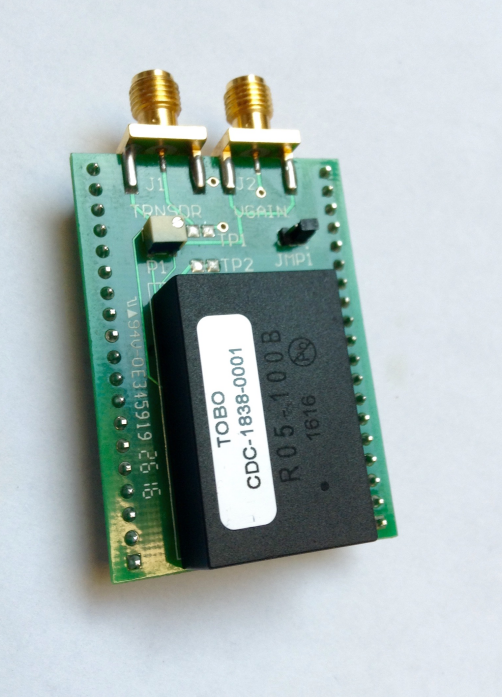

Tobo, from the project README
From the project README

Main components on the Tobo

MD0100N8-GHV7360LA-GR05-100B

Tobo bill of materials (BOM)

23 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MD0100N8-G
IC1
1
HV7360LA-G
IC2
1
R05-100B
IC3
2
SMA
J1, J2
1
CONN_01X19
TrimPot
Molex
P1
1
Jumper
Jumper1
2
Header19
K1, K2
2
TP
TP1, TP2
2
1N4148
Diode
Fairchild Semiconductor
D1, D2
1
1N4148
BAT64-04W
Fairchild Semiconductor
D3
1
10N
Capacitor
Vishay
C1
1
47N
Capacitor
Vishay
C2
1
47U
Capacitor
Nichicon
C3
1
4.7U
Capacitor
Nichicon
C4
1
4.7U
Capacitor
Nichicon
C5
1
4.7U
Capacitor
Nichicon
C6
1
4.7U
Capacitor_polar
Nichicon
C7
1
4.7U
Capacitor
Nichicon
C8
1
2.2K
Resistor
KOA speer
R1

Tobo design files

The KiCad project lives in the echopen/PRJ-medtec_kit repository on GitHub; these links point at the commit this page was built from.

Tobo: common questions

How big is the Tobo PCB?

The Tobo measures 35.5 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tobo?

23 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Tobo design files?

From the echopen/PRJ-medtec_kit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Tobo design in my own project?

The repository has no license, so all rights stay with echopen. Use it as a reference, and ask the author before reusing the design.
