UYDUTEPE PCB layout, top view — open source STM32 board by emirhanuluakan

About the UYDUTEPE PCB

UYDUTEPE is an open source STM32 PCB design by emirhanuluakan, published on GitHub under the CERN-OHL-W-2.0 license. It is a 6-layer board measuring 85 × 56 mm, with 93 components from 49 distinct parts.

Its main chip is the STM32H563VIT6, from the STM32 family. Other key parts include the ST-025BH, BMP390L, TPS56A37RPAR, MAX-M10S-00B and INA226. By type, the board carries 39 capacitors, 18 resistors, 16 connectors, 11 ICs, 2 crystals and 2 diodes.

It belongs with the rf & radio designs in this gallery.

From the project

Flight control system that may use in Model Satellites

UYDUTEPE is a flight control system that used for model satellite competitions. It has a three main parts: Hardware, Firmware and Ground Station

Layout and Schematics done at KiCad 9.0; during development, it transfered to KiCad 10.0.

For now, we do not provide firmware and ground station as an open source.

The UYDUTEPE hardware design is licensed under the CERN Open Hardware Licence Version 2 - Weakly Reciprocal (CERN-OHL-W-2.0).

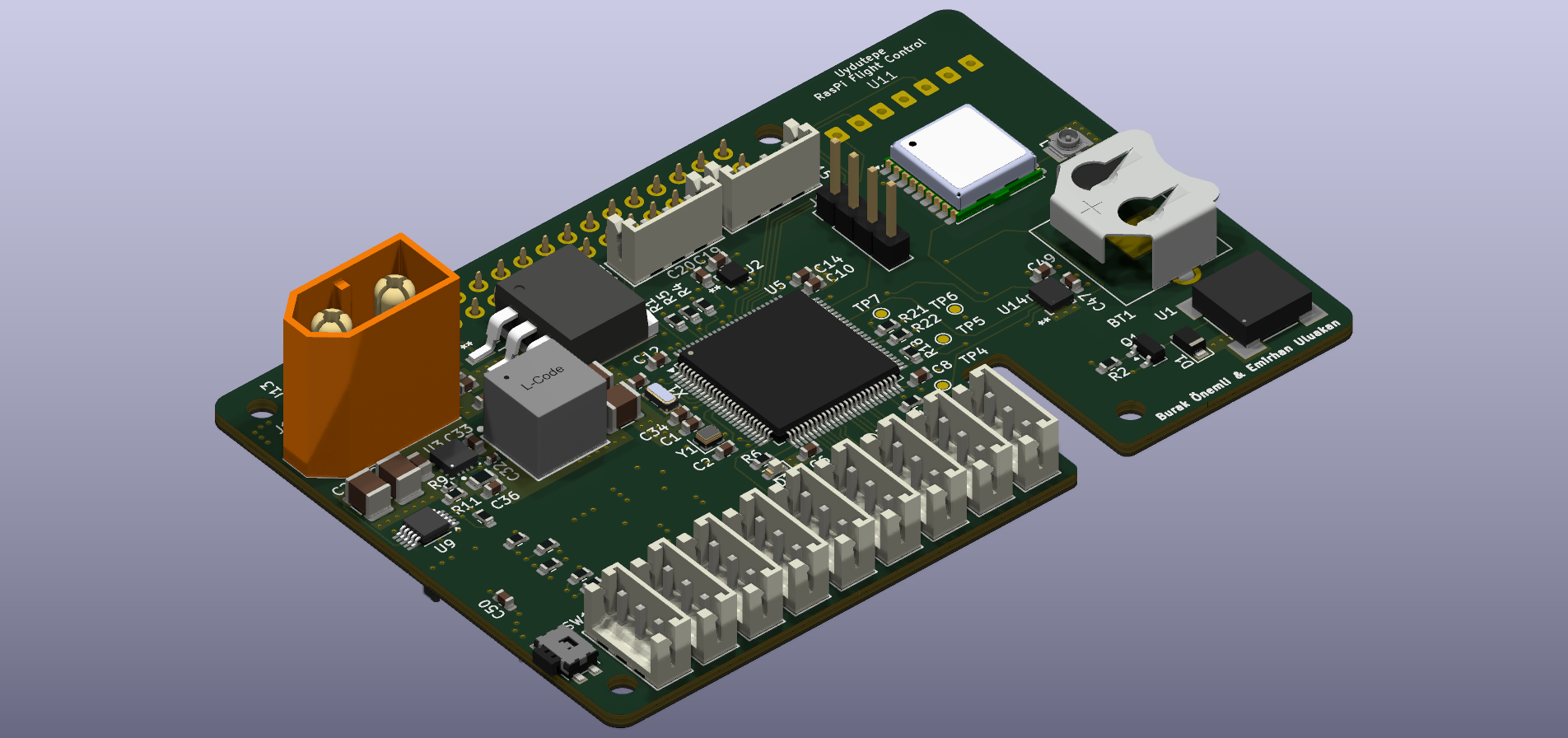

UYDUTEPE, from the project README
From the project README

Main components on the UYDUTEPE

ST-025BHBMP390LTPS56A37RPARSTM32H563VIT6MAX-M10S-00BINA226LM1084ISX-ADJ/NOPBLSM6DSOXTR

UYDUTEPE bill of materials (BOM)

93 components, 49 distinct parts.

QtyPartRefs
1
ST-025BH
U1
1
BMP390L
U2
1
TPS56A37RPAR
U3
1
STM32H563VIT6
U5
1
MAX-M10S-00B
U7
1
INA226
U9
1
LM1084ISX-ADJ/NOPB
U10
1
~
U11
2
~
U12, U13
1
LSM6DSOXTR
U14
1
2SC3199 NPN
Q1
1
MU00525-32.768K
X1
1
25Mhz
Y1
1
Conn_01x04_Pin
J1
1
RECE.20279.001E.01
J2
1
MEM2061-01-188-00-A_REVA
J3
11
B3B-EH-ALFSN
J4, J5, J6, J7, J8, J9, J10, J11 +3
1
Conn_02x20_Odd_Even
J13
1
XT60-M
J14
1
2997
BT1
Show 29 more
QtyPartRefs
1
Polyfuse
F1
1
SW_Push
SW1
1
IN4148
D1
1
LED
D2
1
3.3uH
L1
2
30pF
C1, C2
11
0.1uF
C3, C5, C6, C8, C9, C10, C11, C12 +3
2
2.2uF
C4, C7
3
1uF
C13, C17, C18
1
4.7uF
C14
5
100nF
C19, C20, C33, C47, C48
2
10uF
C21, C27
1
100nF
C22
4
10uF
C23, C26, C49, C50
1
1.5nF
C28
1
10nF
C30
1
22nF
C32
2
4.3 pF
C34, C35
1
150pF
C36
2
22uF
C37, C38
5
10K
R1, R11, R12, R17, R18
1
470
R2
1
0
R3
5
4.7K
R4, R5, R21, R22, R23
2
1K
R6, R8
1
1.64K
R7
1
52.3K
R9
1
73.2K
R10
1
56K
R24

UYDUTEPE design files

The KiCad project lives in the emirhanuluakan/UYDUTEPE repository on GitHub; these links point at the commit this page was built from.

UYDUTEPE: common questions

What microcontroller does the UYDUTEPE use?

The UYDUTEPE is built around the STM32H563VIT6, from the STM32 family.

How big is the UYDUTEPE PCB?

The UYDUTEPE measures 85 × 56 mm, has 6 copper layers and is 1.5584 mm thick.

How many components are on the UYDUTEPE?

93 components, from 49 distinct parts. The full bill of materials is listed on this page.

Where can I download the UYDUTEPE design files?

From the emirhanuluakan/UYDUTEPE repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the UYDUTEPE design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which emirhanuluakan chose for the repository.

Can I test firmware for the UYDUTEPE without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
