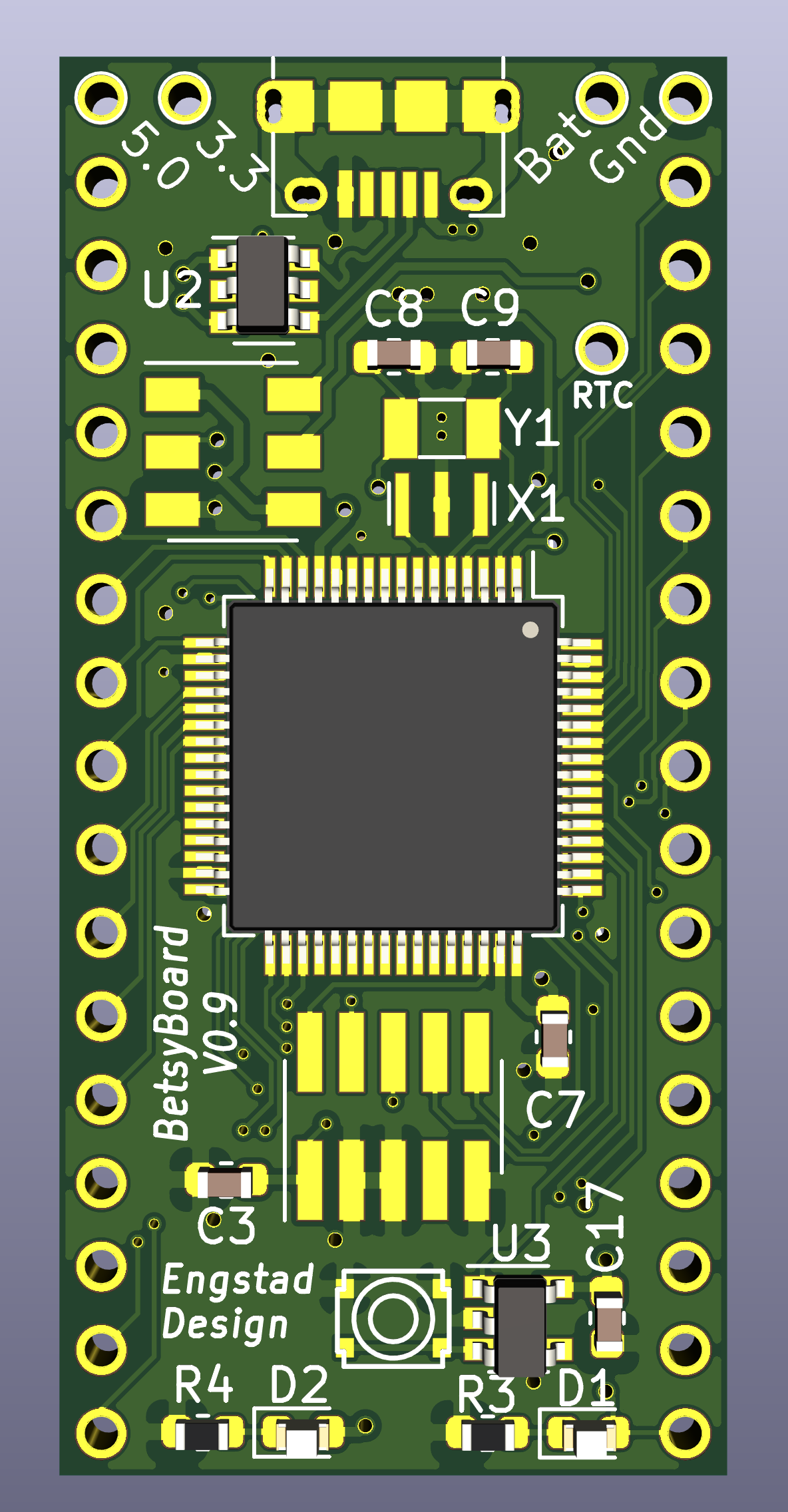

About the BetsyBoardBig PCB
BetsyBoardBig is an open source STM32 PCB design by engstad, published on GitHub. It is a 4-layer board measuring 48 × 48 mm, with 70 components from 64 distinct parts.
Its main chip is the STM32L486RX-LQFP64, from the STM32 family. Other key parts include the TLV75733PDBVR, USBLC6-2SC6, 74LVC3G14, 74LVC1G3157 and IS25LP06D-XB. By type, the board carries 25 capacitors, 15 resistors, 11 connectors, 8 ICs, 3 switches and 3 diodes.
From the project
An STM32L4 prototyping board

Main components on the BetsyBoardBig
BetsyBoardBig bill of materials (BOM)
70 components, 64 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV75733PDBVR | SOT-23-5 | U1 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U2 |
| 1 | 74LVC3G14 MCP73871 | QFN-20-1EP_4x4mm_P0.5mm_EP2.5x2.5mm | U3 |
| 1 | STM32L486RX-LQFP64 74LVC1G08 | SOT-23-5 | U4 |
| 1 | 74LVC1G3157 74LVC3G14 | SSOP-8_2.95x2.8mm_P0.65mm | U5 |
| 1 | IS25LP06D-XB STM32L486Rx-LQFP64 | LQFP-64_10x10mm_P0.5mm | U6 |
| 1 | 74LVC1G3157 | SOT-23-6 | U7 |
| 1 | MCP73871 IS25LP06D-xB | SOIC-8_5.275x5.275mm_P1.27mm | U8 |
| 1 | XTAL | cstce-v-c | X1 |
| 1 | Crystal | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y1 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4085 | J1 |
| 1 | CLOCKS | PinHeader_2x03_P2.54mm_Vertical | J2 |
| 1 | USB_C_RECEPTACLE_USB2.0 SPI | PinHeader_2x03_P2.54mm_Vertical | J3 |
| 1 | I2C | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J4 |
| 1 | I2C USART3 | PinHeader_1x08_P2.54mm_Horizontal | J5 |
| 1 | USART3 ANALOG | PinHeader_2x06_P2.54mm_Horizontal | J6 |
| 1 | USART1 | PinHeader_1x04_P2.54mm_Horizontal | J7 |
| 1 | Micro_SD_Card | Molex_PS_105162_001 | J8 |
| 1 | BATT | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | P1 |
| 1 | BATT | pin-socket-2 | P2 |
Show 44 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CORTEX-JTAG | PinHeader_2x05_P1.27mm_Vertical | P3 |
| 1 | BATT | Battery_Keystone_2894 | B1 |
| 1 | Polyfuse | Fuse_0805_2012Metric | F1 |
| 1 | JUMPER | PinHeader_1x03_P2.54mm_Vertical | SW1 |
| 1 | TE-FSM4J | TACTILE_SWITCH-TE-FSM4JSMAATR | SW2 |
| 1 | SW_PUSH_NO_ALT | TACTILE_SWITCH-TE-FSM4JSMAATR | SW3 |
| 1 | RED | LED_0603_1608Metric | D1 |
| 1 | BLUE | LED_0603_1608Metric | D2 |
| 1 | GRN | LED_0603_1608Metric | D3 |
| 1 | 220Ω@100MHz | L_0805_2012Metric | FB1 |
| 1 | 0.1UF 10uF | C_0805_2012Metric | C1 |
| 1 | 0.1UF 1.0uF | C_0805_2012Metric | C2 |
| 1 | 1UF 0.1uF | C_0603_1608Metric | C3 |
| 1 | 1UF 4.7uF | C_0805_2012Metric | C4 |
| 1 | 1.0UF 1uF | C_0805_2012Metric | C5 |
| 1 | 0.1UF 1uF | C_0805_2012Metric | C6 |
| 1 | 16PF 4.7uF | C_0805_2012Metric | C7 |
| 1 | 16PF 0.1uF | C_0603_1608Metric | C8 |
| 2 | 12PF 0.1uF | C_0603_1608Metric | C9, C10 |
| 1 | 0.1UF 1uF | C_0603_1608Metric | C11 |
| 1 | 1UF 16pF | C_0603_1608Metric | C12 |
| 1 | 0.1UF 16pF | C_0603_1608Metric | C13 |
| 1 | 0.1UF 12pF | C_0603_1608Metric | C14 |
| 1 | 4.7UF 12pF | C_0603_1608Metric | C15 |
| 4 | 0.1UF 0.1uF | C_0603_1608Metric | C16, C18, C19, C20 |
| 1 | 0.1UF 4.7uF | C_0805_2012Metric | C17 |
| 1 | 10UF 0.1uF | C_0603_1608Metric | C21 |
| 2 | 4.7UF 0.1uF | C_0603_1608Metric | C22, C23 |
| 2 | 0.1uF | C_0603_1608Metric | C24, C25 |
| 1 | 10K 330K | R_0603_1608Metric | R1 |
| 1 | 110K | R_0603_1608Metric | R2 |
| 1 | 5K1 | R_0603_1608Metric | R3 |
| 1 | 330 5K1 | R_0603_1608Metric | R4 |
| 1 | 10K | R_0603_1608Metric | R5 |
| 1 | 180 100K | R_0603_1608Metric | R6 |
| 1 | 330 10K | R_0603_1608Metric | R7 |
| 1 | 5K1 1K | R_0603_1608Metric | R8 |
| 1 | 5K1 1M | R_0603_1608Metric | R9 |
| 1 | 100K 10K | R_0603_1608Metric | R10 |
| 1 | 10K 1K | R_0603_1608Metric | R11 |
| 1 | 330 | R_0603_1608Metric | R12 |
| 1 | 330K 180 | R_0603_1608Metric | R13 |
| 1 | 110K 330 | R_0603_1608Metric | R14 |
| 1 | 10K | R_0603_1608Metric | R15 |
BetsyBoardBig design files
The KiCad project lives in the engstad/BetsyBoard repository on GitHub; these links point at the commit this page was built from.
BetsyBoardBig: common questions
What microcontroller does the BetsyBoardBig use?
The BetsyBoardBig is built around the STM32L486RX-LQFP64, from the STM32 family.
How big is the BetsyBoardBig PCB?
The BetsyBoardBig measures 48 × 48 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the BetsyBoardBig?
70 components, from 64 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BetsyBoardBig design files?
From the engstad/BetsyBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BetsyBoardBig design in my own project?
The repository has no license, so all rights stay with engstad. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the BetsyBoardBig without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
