About the EnvOpenPico-RP2040 PCB
EnvOpenPico-RP2040 is an open source RP2040/RP2350 PCB design by Envious-Data, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 21 × 51 mm, with 54 components from 34 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the SOT-23-5 5.5V 3.3V 500mA. By type, the board carries 19 capacitors, 13 resistors, 5 connectors, 3 test points, 2 ICs and 2 LEDs.
From the project

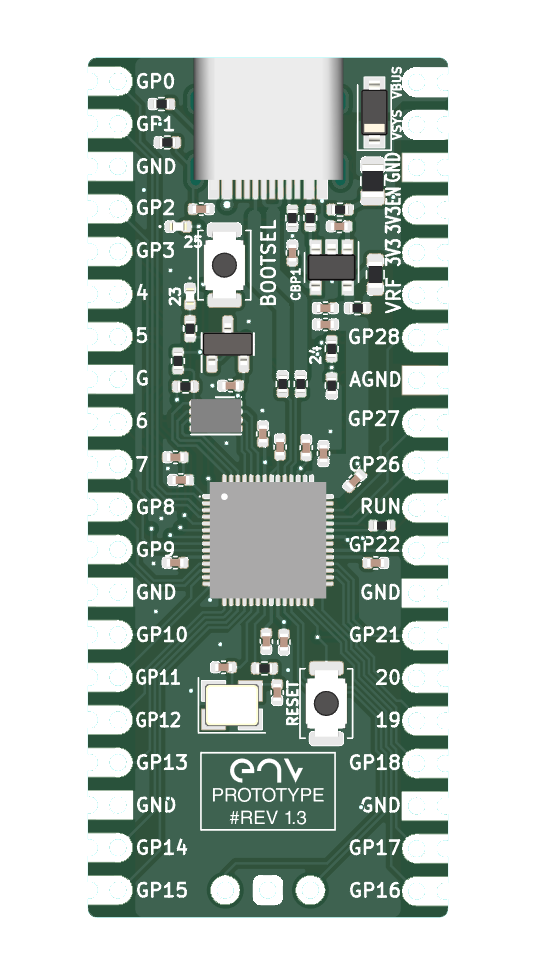

An open source RP2040 MCU Board Family

Main components on the EnvOpenPico-RP2040
EnvOpenPico-RP2040 bill of materials (BOM)
54 components, 34 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SOT-23-5 5.5V 3.3V 500mA | SOT-23-5 | U1 |
| 1 | RP2040 | RP2040-QFN-56 | U3 |
| 1 | SI2301B | SOT-23 | Q1 |
| 1 | 3225_4P 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | Button | SW_Push_SPST_NO_Alps_SKRK | J2 |
| 2 | 2.54mm header 01x20 | PinHeader_1x20_P2.54mm_Vertical | J3, J4 |
| 1 | CONN_01X03_MALE Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | 10uf 0402 | C_0402_1005Metric | CBP1 |
| 1 | 0805L050WR | Fuse_0805_2012Metric | F1 |
| 1 | W25Q16JVUXIQ | Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm | FLASH1 |
| 1 | 1K 0402 | R_0402_1005Metric | GPIO24_RESISTOR1 |
| 1 | 470 0402 | R_0402_1005Metric | GPIO25_RESISTOR1 |
| 1 | TSA343G00-250J2 | SW_Push_SPST_NO_Alps_SKRK | RSW1 |
| 3 | TestPoint | CustomTestPoint | TP1, TP2, TP3 |
| 1 | GP23 LED_0402 | LED_0402_1005Metric | GP23_LED1 |
| 1 | LED_0402 | LED_0402_1005Metric | GPIO25_LED1 |
| 1 | 1N5817W | D_SOD-123 | D1 |
| 1 | FerriteBead 0402 | R_0402_1005Metric | FB1 |
| 3 | 10uf 0402 | C_0402_1005Metric | C1, C4, C17 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 22pf 0402 | C_0402_1005Metric | C2, C19 |
| 1 | 1uf 0402 | C_0402_1005Metric | C3 |
| 10 | 100nf 0402 | C_0402_1005Metric | C5, C6, C7, C8, C11, C13, C14, C15 +2 |
| 2 | 2.2uF 0402 | C_0402_1005Metric | C10, C102 |
| 1 | 0.1uf 0402 | C_0402_1005Metric | C101 |
| 2 | 1K 0402 | R_0402_1005Metric | R1, R11 |
| 2 | 10K 0402 | R_0402_1005Metric | R2, R103 |
| 2 | 27r 0402 resistor | R_0402_1005Metric | R3, R4 |
| 2 | 5.1K 0402 | R_0402_1005Metric | R5, R6 |
| 1 | 100K 0402 | R_0402_1005Metric | R7 |
| 1 | 200 0603 | R_0603_1608Metric | R9 |
| 1 | 1 0402 | R_0402_1005Metric | R10 |
| 1 | 5.6K 0402 | R_0402_1005Metric | R101 |
| 1 | 220 0402 | R_0402_1005Metric | R102 |
EnvOpenPico-RP2040 design files
The KiCad project lives in the Envious-Data/EnvOpenPico repository on GitHub; these links point at the commit this page was built from.
EnvOpenPico-RP2040: common questions
What microcontroller does the EnvOpenPico-RP2040 use?
The EnvOpenPico-RP2040 is built around the RP2040, from the RP2040/RP2350 family.
How big is the EnvOpenPico-RP2040 PCB?
The EnvOpenPico-RP2040 measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EnvOpenPico-RP2040?
54 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EnvOpenPico-RP2040 design files?
From the Envious-Data/EnvOpenPico repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EnvOpenPico-RP2040 design in my own project?
Yes, under the terms of its GPL-3.0 license, which Envious-Data chose for the repository.
Can I test firmware for the EnvOpenPico-RP2040 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
