EliteMicro2040
Envious-Data·EnvOpenPico·RP2040/EliteMicro2040/EliteMicro2040.kicad_pcb
About the EliteMicro2040 PCB
EliteMicro2040 is an open source RP2040/RP2350 PCB design by Envious-Data, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 17.8 × 30.5 mm, with 39 components from 20 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the ZL6201A33S3 and Elite-C. By type, the board carries 15 capacitors, 9 resistors, 4 test points, 3 ICs, 2 connectors and 1 crystal.
From the project

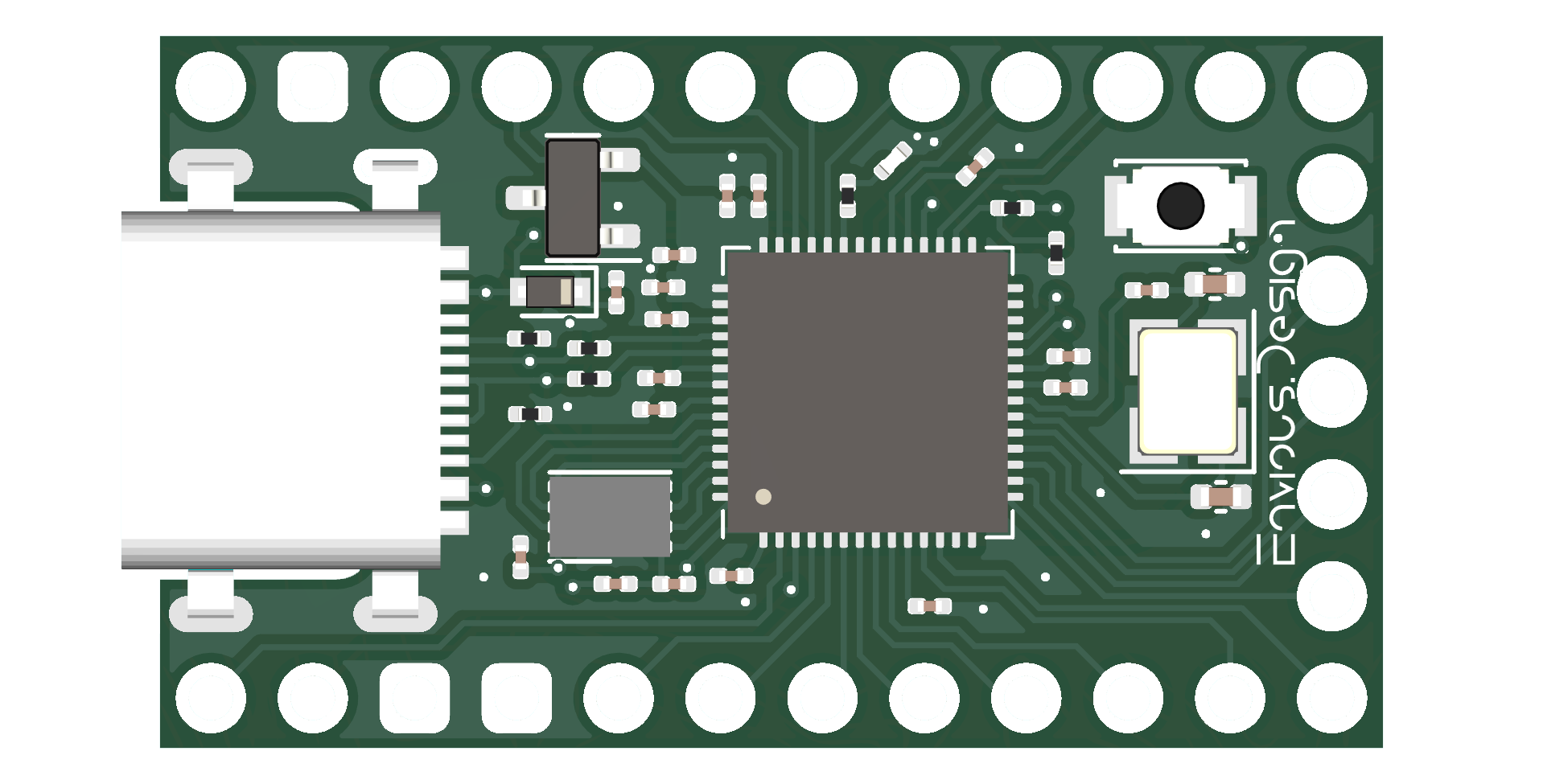

An open source RP2040 MCU Board Family

Main components on the EliteMicro2040
EliteMicro2040 bill of materials (BOM)
39 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ZL6201A33S3 | SOT-23 | U1 |
| 1 | Elite-C | Elite-C | U2 |
| 1 | RP2040 | RP2040-QFN-56 | U3 |
| 1 | 3225-4P 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 2 | Button | SW_SPST_CK_KXT3 | J1, J2 |
| 1 | W25Q16JVUXIQ | SON-8-1EP_3x2mm_P0.5mm_EP1.4x1.6mm | FLASH1 |
| 1 | 1K 0201 | R_0402_1005Metric | GPIO25_RESISTOR1 |
| 4 | TestPoint | CustomTestPoint | TP1, TP2, TP101, TP103 |
| 1 | HRO-TYPE-C-31-M-12 | HRO-TYPE-C-31-M-12 | USB2 |
| 1 | LED 0201 | LED_0402_1005Metric | GPIO25_LED1 |
| 1 | SOD-523 General | D_SOD-523 | D1 |
| 4 | 1uf 0201 | C_0402_1005Metric | C1, C3, C4, C10 |
| 2 | 22pF 0402 | C_0402_1005Metric | C2, C19 |
| 9 | 100nf 0201 | C_0402_1005Metric | C5, C6, C7, C8, C11, C13, C14, C15 +1 |
| 2 | 1K 0201 | C_0402_1005Metric | R1, R7 |
| 1 | 10K 0201 | C_0402_1005Metric | R2 |
| 2 | 27r 0201 | R_0402_1005Metric | R3, R4 |
| 2 | 5.1K 0201 | R_0402_1005Metric | R5, R6 |
| 1 | 5.6k 0201 | R_0402_1005Metric | R101 |
| 1 | 10k 0201 | R_0402_1005Metric | R102 |
EliteMicro2040 design files
The KiCad project lives in the Envious-Data/EnvOpenPico repository on GitHub; these links point at the commit this page was built from.
EliteMicro2040: common questions
What microcontroller does the EliteMicro2040 use?
The EliteMicro2040 is built around the RP2040, from the RP2040/RP2350 family.
How big is the EliteMicro2040 PCB?
The EliteMicro2040 measures 17.8 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EliteMicro2040?
39 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EliteMicro2040 design files?
From the Envious-Data/EnvOpenPico repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EliteMicro2040 design in my own project?
Yes, under the terms of its GPL-3.0 license, which Envious-Data chose for the repository.
Can I test firmware for the EliteMicro2040 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
