RP2040 Minimal Design Example

Envious-Data·EnvOpenPico·RP2040/EnvPicoLiPo/EnvPicoLiPo.kicad_pcb

RP2040 Minimal Design Example PCB layout, top view — open source RP2040/RP2350 board by Envious-Data
Simulate this board

About the RP2040 Minimal Design Example PCB

RP2040 Minimal Design Example is an open source RP2040/RP2350 PCB design by Envious-Data, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 21.2 × 51.6 mm, with 50 components from 35 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the BQ24072RGT and LM3671MF 3.3. By type, the board carries 20 capacitors, 14 resistors, 5 connectors, 3 ICs, 3 diodes and 1 crystal.

It belongs with the power & battery designs in this gallery.

From the project

An open source RP2040 MCU Board Family

originally this was going to be a version that contains a battery charge IC and a ESP32 wireless slave but I feel like its a bad idea to combine things Ive not worked on before so I scaled back the project to have just a battery PMIC.

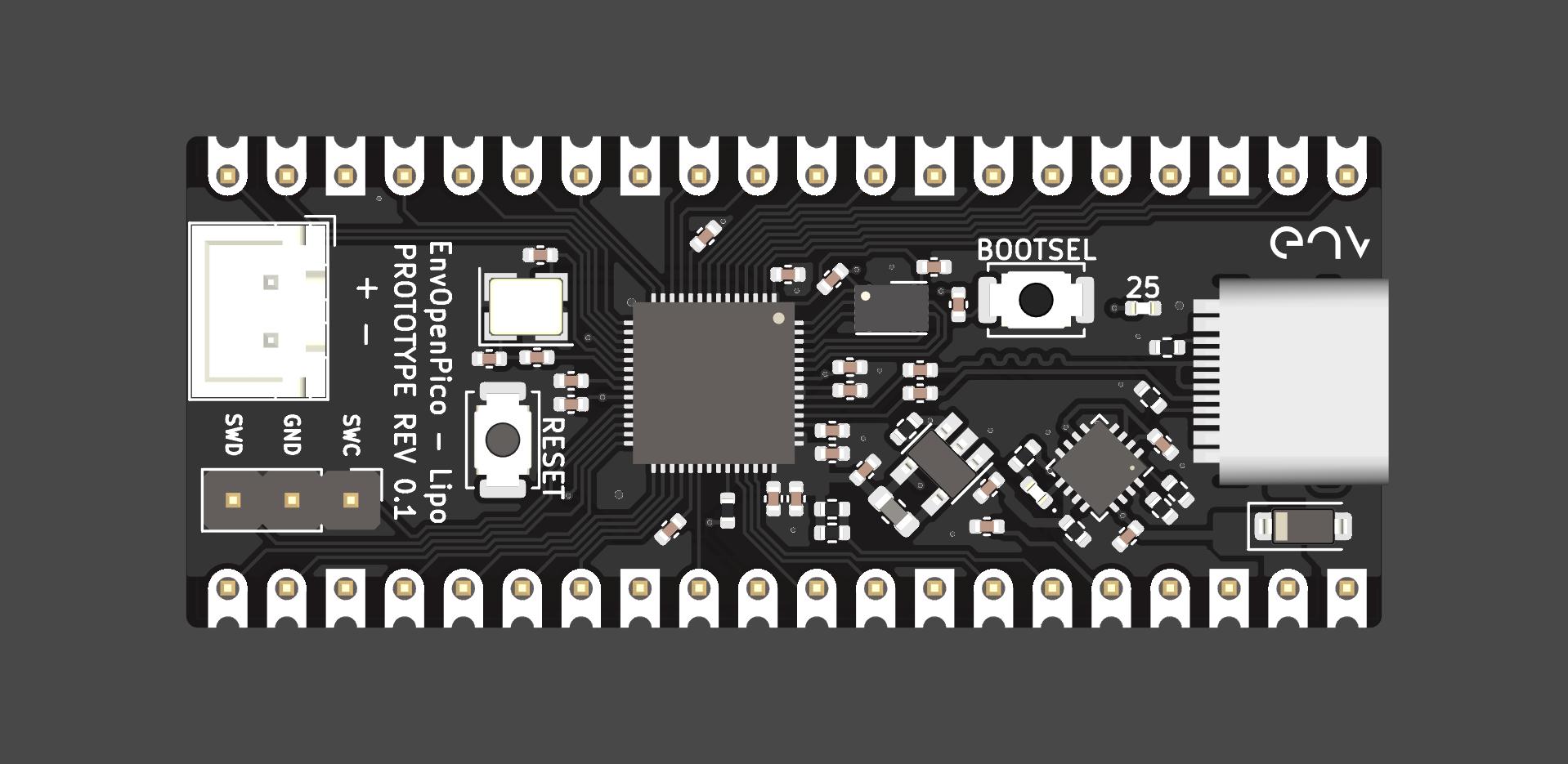

RP2040 Minimal Design Example, from the project README
From the project README

Main components on the RP2040 Minimal Design Example

BQ24072RGTLM3671MF 3.3RP2040

RP2040 Minimal Design Example bill of materials (BOM)

50 components, 35 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BQ24072RGT
U1
1
LM3671MF 3.3
U2
1
RP2040
U3
1
Crystal_GND24 12MHz
Y1
1
USB_C_RECEPTACLE_USB2.0
SKRKAEE020
J1
2
2.54mm header 01x20
J2, J3
1
Conn_01x03_Male
J4
1
CONN_01X03_MALE
SKRKAEE020
J5
1
Li-Po Battery
BT1
1
W25Q16JVUXIQ
W25Q16
FLASH1
1
TYPE-C-31-M-12
e1
1
1N5817W
1n4002W
D1
1
0402 led
D2
1
LED 0402 YELLOW
D3
1
inductor 2.2uh 600mA 0603
L1
1
0402 1uF
C1
1
0402 10uF
C2
1
10uf 0402 6.3V
C3
1
4.7uf 0402
C4
2
10uf 0402
C5, C20
Show 15 more
QtyPartRefs
10
100nf 0402
C6, C7, C8, C9, C10, C11, C12, C13 +2
2
1uf 0402
C15, C16
2
15pf 0402
C18, C19
2
5.1K
R1, R3
2
10K 0402
R2, R7
1
100k 0402
R4
1
200ohm 0402
R5
1
2.2K 0402
R6
1
1Ohm 0402
R8
1
27Ohms 0402 Resistor
R9
1
27Ohms 0402 Resistor
R10
1
10K 0402
R11
1
1k 0402 Resistor
R12
1
470 ohm resistor
R13
1
1K 0402
R14

RP2040 Minimal Design Example design files

The KiCad project lives in the Envious-Data/EnvOpenPico repository on GitHub; these links point at the commit this page was built from.

RP2040 Minimal Design Example: common questions

What microcontroller does the RP2040 Minimal Design Example use?

The RP2040 Minimal Design Example is built around the RP2040, from the RP2040/RP2350 family.

How big is the RP2040 Minimal Design Example PCB?

The RP2040 Minimal Design Example measures 21.2 × 51.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RP2040 Minimal Design Example?

50 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2040 Minimal Design Example design files?

From the Envious-Data/EnvOpenPico repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2040 Minimal Design Example design in my own project?

Yes, under the terms of its GPL-3.0 license, which Envious-Data chose for the repository.

Can I test firmware for the RP2040 Minimal Design Example without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
