Led board

ep-infosec·50_google_makerspace-partsbin·electronics/led_board_stack_light/led_board.kicad_pcb

Led board layout, top view — open source board by ep-infosec

About the Led board

Led board is an open source PCB design by ep-infosec, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 55.4 × 29.5 mm, with 13 components from 5 distinct parts.

By type, the board carries 6 diodes, 5 connectors and 2 resistors.

From the project

This is a work-in-progress to build a laser-cuttable stack light. Best if the soldermask is white.

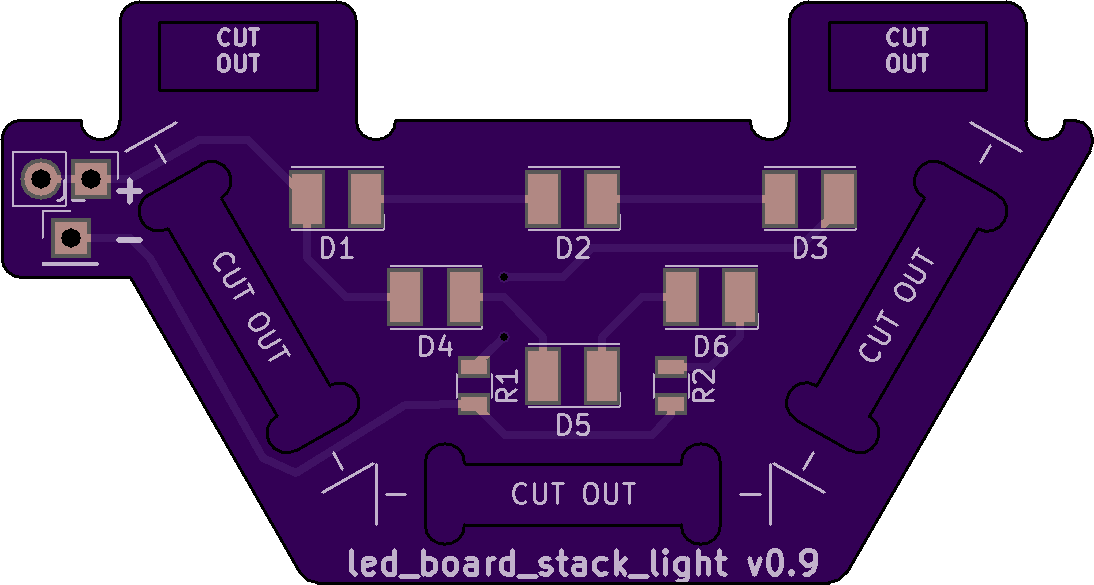

Led board, from the project README
From the project README

Led board bill of materials (BOM)

13 components, 5 distinct parts.

QtyPartRefs
1
CONN_01X02
J1
1
CONN_01X01
J2
3
Slot
P2, P3, P4
6
LED
D1, D2, D3, D4, D5, D6
2
56R
R1, R2

Led board design files

The KiCad project lives in the ep-infosec/50_google_makerspace-partsbin repository on GitHub; these links point at the commit this page was built from.

Led board: common questions

How big is the Led board?

The Led board measures 55.4 × 29.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Led board?

13 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Led board design files?

From the ep-infosec/50_google_makerspace-partsbin repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Led board design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which ep-infosec chose for the repository.
