About the VehiCell PCB

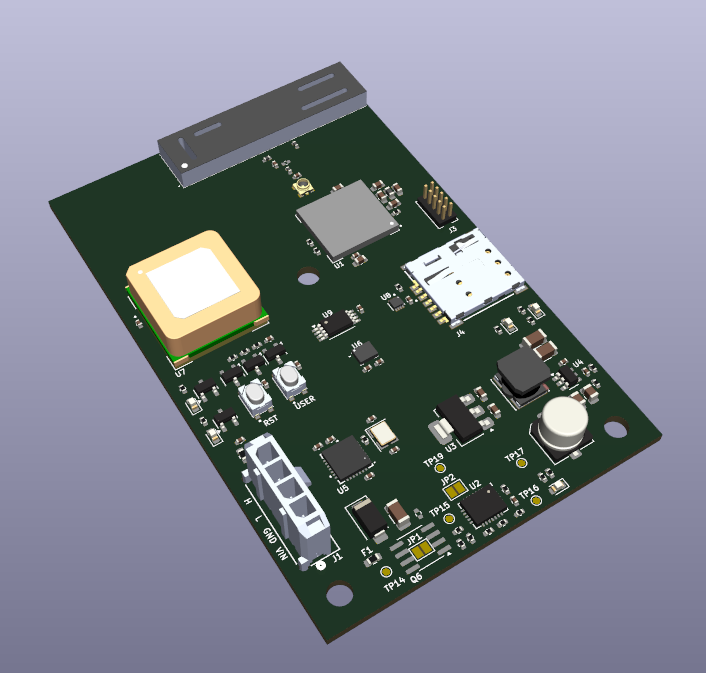

VehiCell is an open source Nordic nRF PCB design by ephrenm, published on GitHub. It is a 4-layer board measuring 55 × 85 mm, with 100 components from 52 distinct parts.
Its main chip is the NRF9151-LACA-R, from the Nordic nRF family. Other key parts include the TPS26600RHF, LDL1117S33R, TPS54202DDC, MCP251863T-E-9PX and BMI270. By type, the board carries 36 capacitors, 27 resistors, 9 ICs, 6 transistors, 6 diodes and 5 inductors.
From the project
NRF9151-based cellular telemetry device designed for a FSAE EV vehicle.
Goal: Create a single module which combines vehicle CANbus, GPS and accelerometer data into a single stream to be stored in a cloud database using LTE CAT-M1 cellular technology.
Main components on the VehiCell
VehiCell bill of materials (BOM)
100 components, 52 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NRF9151-LACA-R | XCVR_NRF9151-LACA-R | U1 |
| 1 | TPS26600RHF | Texas_RHF0024A_VQFN-24-1EP_4x5mm_P0.5mm_EP2.65x3.65mm_ThermalVias | U2 |
| 1 | LDL1117S33R | SOT-223-3_TabPin2 | U3 |
| 1 | TPS54202DDC | SOT-23-6 | U4 |
| 1 | MCP251863T-E-9PX | VQFN28_9PX_3p25X3p25EPAD_MCH | U5 |
| 1 | BMI270 | XDCR_BMI270 | U6 |
| 1 | SAM-M10Q-00B | XCVR_SAM-M10Q-00B | U7 |
| 1 | EMIF03-SIM02M8 | SON40P170X150X60-9N | U8 |
| 1 | 23K256T-I/ST | TSSOP-8_4.4x3mm_P0.65mm | U9 |
| 1 | DMP2004K-7 DMP2004K | SOT-23-3 | Q1 |
| 4 | DMN2005K-7 DMN2005K | SOT-23-3 | Q2, Q3, Q4, Q5 |
| 1 | AO4421 PMOS | SOIC-8_3.9x4.9mm_P1.27mm | Q6 |
| 1 | ABM8G-20.000MHZ-18-D2Y-T 20MHz | Crystal_SMD_Abracon_ABM8G-4Pin_3.2x2.5mm | Y2 |
| 1 | 0436500428 Microfit 3.0 | CONN_SD-43650-010_04_MOL | J1 |
| 1 | MM8130-2600RA2 MM8130-2600 | MURATA_MM8130-2600RA2 | J2 |
| 1 | PRPC005DFAN-RC SWD | PinHeader_2x05_P1.27mm_Vertical | J3 |
| 1 | SIM8066-6-1-14-01-A | GCT_SIM8066-6-1-14-01-A_REVA | J4 |
| 1 | SR4L002 | XCVR_SR4L002 | ANT1 |
| 1 | C2Q 3 3A | R_0603_1608Metric | F1 |
| 1 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP1 |
Show 32 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Jumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP2 |
| 2 | PTS810_SJM_250_SMTR_LFS | SW_PTS810_SJM_250_SMTR_LFS | SW1, SW2 |
| 2 | 150060AS75000 ORNG | LED_0603_1608Metric | D1, D2 |
| 1 | SMAJ36CA 36V | D_SMA | D3 |
| 3 | LTST-C190GKT GRN | LED_0603_1608Metric | D4, D5, D6 |
| 1 | BLM18SN220TN1D 22R@100M | L_0603_1608Metric | FB1 |
| 1 | 3.3n | L_0402_1005Metric | L1 |
| 2 | 15n | L_0402_1005Metric | L2, L3 |
| 1 | VLS6045EX-150M 15u | IND_VLS6045EX-150M | L4 |
| 3 | CL10B105KP8NNNC 1u | C_0603_1608Metric | C1, C2, C22 |
| 2 | CL10A106KQ8NNNC 10u | C_0603_1608Metric | C3, C4 |
| 3 | CL10A475KP8NNNC 4.7u | C_0603_1608Metric | C5, C7, C23 |
| 16 | CL05B104KP5NNNC 100n | C_0402_1005Metric | C6, C11, C12, C13, C15, C16, C26, C29 +8 |
| 1 | 2.2p | C_0402_1005Metric | C8 |
| 1 | 0.5p | C_0402_1005Metric | C9 |
| 1 | ~ | C_0402_1005Metric | C10 |
| 1 | CL31B105KBHNNNE 1u | C_1206_3216Metric | C14 |
| 1 | 865080543009 47u | C_Elec_6.3x5.4 | C18 |
| 2 | GRM21BR6YA106KE43L 10u | C_0805_2012Metric | C19, C20 |
| 1 | GCM1555C1H750FA16J 75p | C_0402_1005Metric | C21 |
| 2 | CL31B226KPHNNNE 22u | C_1206_3216Metric | C24, C25 |
| 2 | GCM0335C1H360FA16D 36p | C_0402_1005Metric | C28, C38 |
| 7 | ERJ-2RKF1332X 13.3k | R_0402_1005Metric | R1, R2, R9, R16, R18, R19, R20 |
| 2 | ERJ-2RKF1003X 100k | R_0402_1005Metric | R3, R17 |
| 7 | ERJ-2RKF3300X 330 | R_0402_1005Metric | R4, R7, R8, R21, R22, R23, R27 |
| 2 | RC0402FR-071ML 1M | R_0402_1005Metric | R5, R6 |
| 1 | RC0402FR-07634KL 634k | R_0402_1005Metric | R10 |
| 2 | RC0402FR-1354K9L 54.9k | R_0402_1005Metric | R11, R14 |
| 2 | RC0402FR-0730K1L 30.1k | R_0402_1005Metric | R12, R13 |
| 1 | RMCF0402FT5K36 5.36k | R_0402_1005Metric | R15 |
| 2 | CR0603-FX-60R4ELF 60R4 | R_0603_1608Metric | R24, R25 |
| 1 | RC1005J000CS 0R | R_0402_1005Metric | R26 |
VehiCell design files
The KiCad project lives in the ephrenm/VehiCell repository on GitHub; these links point at the commit this page was built from.
VehiCell: common questions
What microcontroller does the VehiCell use?
The VehiCell is built around the NRF9151-LACA-R, from the Nordic nRF family.
How big is the VehiCell PCB?
The VehiCell measures 55 × 85 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the VehiCell?
100 components, from 52 distinct parts. The full bill of materials is listed on this page.
Where can I download the VehiCell design files?
From the ephrenm/VehiCell repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the VehiCell design in my own project?
The repository has no license, so all rights stay with ephrenm. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the VehiCell without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
