Goya1746

escaroda·goya1746

Goya1746 PCB layout, top view — open source board by escaroda
Simulate this board

About the Goya1746 PCB

Goya1746 is an open source PCB design by escaroda, published on GitHub under the MIT license. It is a 2-layer board measuring 115 × 70 mm, with 83 components from 45 distinct parts.

Other key parts include the LM2940CT-12_NOPB, TC1044SCPA, OPA2134 and TL072. By type, the board carries 32 resistors, 28 capacitors, 7 diodes, 5 ICs and 4 connectors.

It belongs with the audio designs in this gallery.

From the project

PCB design of a guitar pedal based on the 3rd channel of Diezel VH4 amplifier

goya1746 is an overdrive & preamp pedal based on the legendary Diezel VH4 channel 3. Fully open circuit board designed in KiCad 8. The main idea was to avoid oscillations on all gain levels. This project is shared for hobbyists who want to study, modify, or build their own. The full PCB outline is 115 × 70 mm (4.53 × 2.76 in), but the usable area is about 96 × 70 mm (3.78 × 2.76 in) if you remove the side "wings" in KiCad and define your own edge cut before generating Gerbers. In theory, it should fit a 1590BB enclosure, but keep in mind that each potentiometer is wired separately and the…

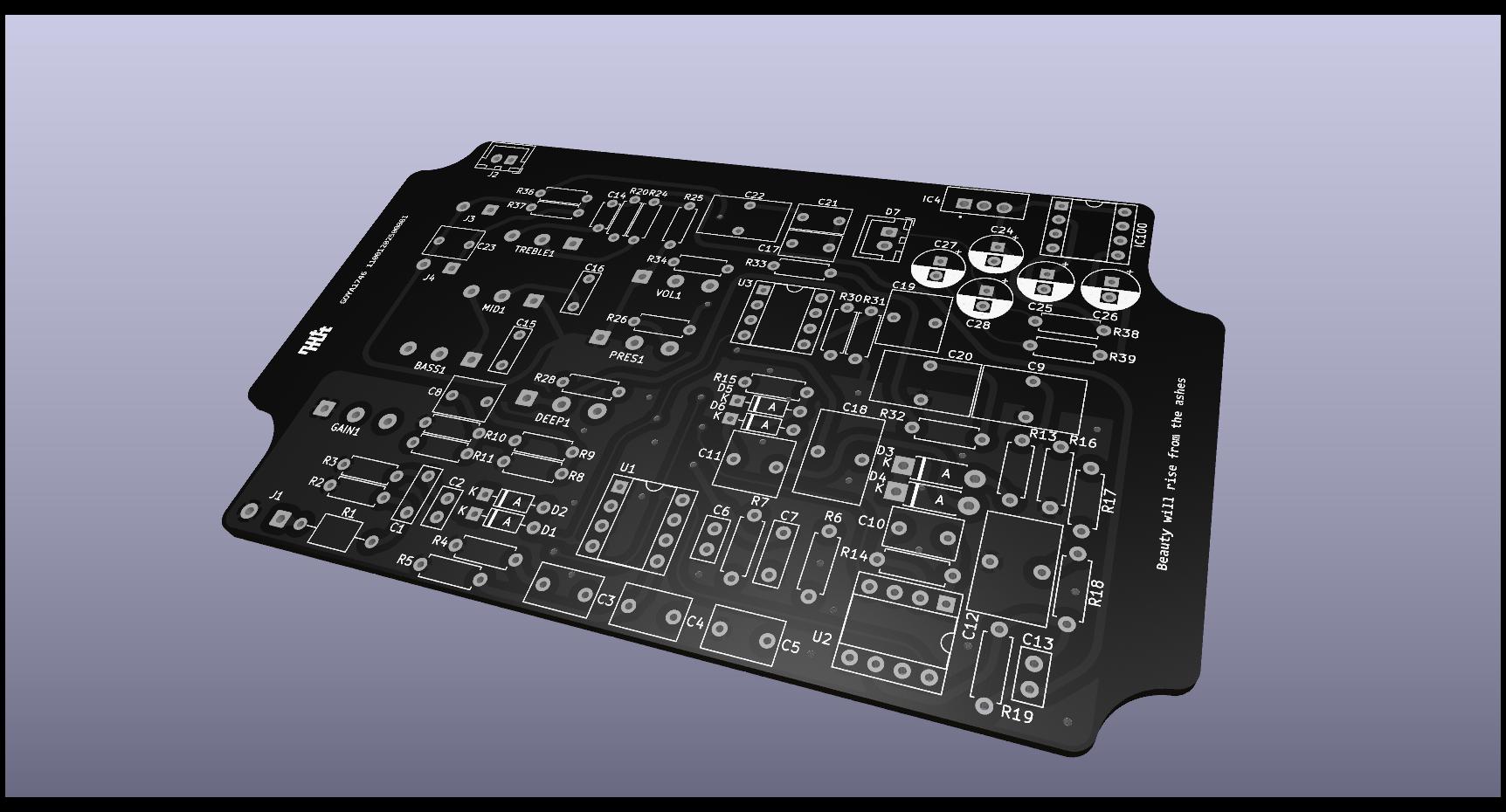

Goya1746, from the project README
From the project README

Main components on the Goya1746

LM2940CT-12_NOPBTC1044SCPAOPA2134TL072

Goya1746 bill of materials (BOM)

83 components, 45 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM2940CT-12_NOPB
IC4
1
TC1044SCPA
IC100
1
OPA2134
U1
2
TL072
U2, U3
1
GUITAR INPUT
J1
1
DC INPUT
J2
1
POWER OUT
J3
1
GUITAR OUT
J4
1
A1M
BASS1
2
C25K
DEEP1, PRES1
1
A250K
GAIN1
1
B25K
MID1
1
B250K
TREBLE1
1
A10K
VOL1
4
1N4148
D1, D2, D5, D6
2
1N4734A
D3, D4
1
LED 12V
D7
4
22N
22n
C1, C7, C15, C16
3
100P
100p
C2, C6, C13
4
1u
C3, C4, C5, C17
Show 25 more
QtyPartRefs
2
2N2
2n2
C8, C23
3
2U2
2u2
C9, C12, C18
1
47P
47p
C10
1
4N7
4n7
C11
1
560P
560p
C14
1
330N
330n
C19
2
10U
10u
C20, C22
1
1n
C21
5
47U
47u
C24, C25, C26, C27, C28
1
FerriteBead
R1
3
1M
R2, R3, R14
5
100K
R4, R5, R15, R25, R37
4
10K
R6, R13, R18, R33
5
220K
R7, R10, R11, R17, R19
2
470K
R8, R16
1
680K
R9
1
39K
R20
1
1M5
R24
2
1K
R26, R34
1
100R
R28
1
47R
R30
1
56K
R31
1
4K7
R32
1
150K
R36
2
10R
R38, R39

Goya1746 design files

The KiCad project lives in the escaroda/goya1746 repository on GitHub; these links point at the commit this page was built from.

Goya1746: common questions

How big is the Goya1746 PCB?

The Goya1746 measures 115 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Goya1746?

83 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Goya1746 design files?

From the escaroda/goya1746 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Goya1746 design in my own project?

Yes, under the terms of its MIT license, which escaroda chose for the repository.
