SuperCap2024Control V1.1R F3 ISOPWR
About the SuperCap2024Control V1.1R F3 ISOPWR PCB
SuperCap2024Control V1.1R F3 ISOPWR is an open source STM32 PCB design by evil0knight, published on GitHub. It is a 4-layer board measuring 40.5 × 59.5 mm, with 141 components from 46 distinct parts.
Its main chip is the STM32F334R8TX, from the STM32 family. Other key parts include the ISO_DC, INA240A1PW, GS8332-SR, SIT1042/3 and RY8411. By type, the board carries 55 capacitors, 37 resistors, 15 diodes, 11 ICs, 6 connectors and 6 test points.
From the project

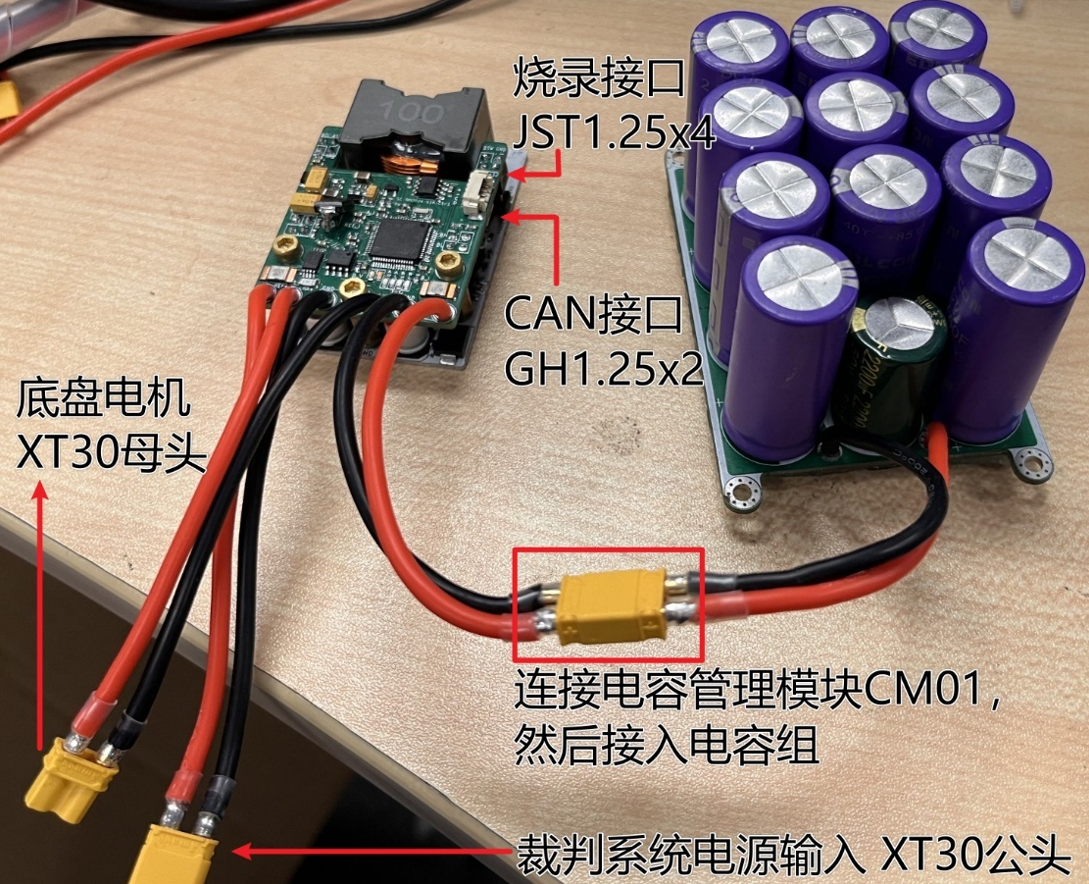

C++,KICAD，H桥升降压，拟合，测电流电阻
# aurror战队 # RM2024超级电容控制器 # 硬件方案&软件方案 完全开源
得到build/目录下RM2024-SuperCap-F3-V1R.elf文件即为编译成功。
用户代码全部位于 Core/ 中，将相应文件转移到另生成的项目中可以轻松移植。例如专用STM32G474作为开发用MCU。
Main components on the SuperCap2024Control V1.1R F3 ISOPWR
SuperCap2024Control V1.1R F3 ISOPWR bill of materials (BOM)
141 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ISO_DC | BxxxxS-1W | U1, U3 |
| 3 | INA240A1PW | TSSOP-8_4.4x3mm_P0.65mm | U2, U4, U5 |
| 1 | GS8332-SR | SOIC-8_3.9x4.9mm_P1.27mm | U6 |
| 1 | STM32F334R8TX STM32F334R8Tx | LQFP-64_10x10mm_P0.5mm | U7 |
| 1 | SIT1042/3 | SOIC-8_3.9x4.9mm_P1.27mm | U8 |
| 2 | RY8411 | SOT-23-6 | U9, U11 |
| 1 | RS3236 | SOT-23-5 | U10 |
| 1 | AO3400A | SOT-23 | Q1 |
| 1 | CSTCE8M | Resonator_SMD_Murata_CSTxExxV-3Pin_3.0x1.1mm | Y1 |
| 2 | CONN_02X02_ODD_EVEN Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical_SMD | J1, J4 |
| 1 | CONN_01X02_MOUNTINGPIN Conn_01x02_MountingPin | JST_GH_SM02B-GHS-TB_1x02-1MP_P1.25mm_Horizontal | J2 |
| 1 | CONN_01X04_MOUNTINGPIN Conn_01x04_MountingPin | Molex_PicoBlade_53261-0471_1x04-1MP_P1.25mm_Horizontal | J3 |
| 2 | CONN_02X02_ODD_EVEN Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical | J5, J6 |
| 1 | BUZZER-9032 Buzzer-9032 | MLT-9032 | BZ1 |
| 2 | 30A | Fuse_1206_3216Metric | F1, F2 |
| 2 | 1A | Fuse_1206_3216Metric | F3, F4 |
| 6 | TestPoint | TestPoint_Plated_Hole_D3.0mm | TP1, TP2, TP3, TP4, TP5, TP6 |
| 3 | DSS34 | D_SMF | D1, D2, D3 |
| 1 | SMF3.3A | D_SMF | D4 |
| 1 | SMAJ28A | D_SMA | D5 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | LED | LED_0603_1608Metric | D6, D7, D8, D9, D13, D14 |
| 3 | SMF10A | D_SMF | D10, D11, D19 |
| 1 | SMF5V0A | D_SMF | D22 |
| 1 | FerriteBead | L_1206_3216Metric | FB1 |
| 1 | FerriteBead | L_0603_1608Metric | FB2 |
| 1 | 4.7U 4.7u | L_Bourns-SRN4018 | L1 |
| 1 | 4.7U 4.7u | L_Sunlord_SWPA252012S | L2 |
| 26 | 100N 100n | C_0603_1608Metric | C1, C8, C10, C11, C12, C13, C14, C17 +18 |
| 7 | 10U 10u | C_0603_1608Metric | C3, C5, C15, C16, C34, C40, C42 |
| 1 | 20P 20p | C_0603_1608Metric | C4 |
| 12 | 10U 10u | C_1206_3216Metric | C9, C18, C36, C37, C44, C45, C49, C50 +4 |
| 2 | 100p | C_0603_1608Metric | C35, C48 |
| 2 | C_Polarized | CP_EIA-6032-28_Kemet-C | C38, C46 |
| 1 | 10N 10n | C_0603_1608Metric | C43 |
| 4 | 100u 6.3V | C_1206_3216Metric | C51, C56, C57, C58 |
| 11 | 33R 33r | R_0603_1608Metric | R1, R2, R3, R4, R5, R22, R23, R24 +3 |
| 4 | 10K 10k | R_0603_1608Metric | R6, R28, R40, R42 |
| 4 | 2.2K 2.2k | R_0603_1608Metric | R7, R8, R10, R11 |
| 3 | 2MR 2mr | R_2512_6332Metric | R9, R12, R15 |
| 4 | 1k | R_0603_1608Metric | R13, R14, R30, R31 |
| 2 | 90k 25ppm | R_0603_1608Metric | R16, R19 |
| 2 | 10k 25ppm | R_0603_1608Metric | R17, R20 |
| 2 | 68R 68r | R_0603_1608Metric | R18, R21 |
| 3 | 120R 120r | R_0603_1608Metric | R25, R36, R38 |
| 1 | 118K 118k | R_0603_1608Metric | R39 |
| 1 | 53.6K 53.6k | R_0603_1608Metric | R41 |
SuperCap2024Control V1.1R F3 ISOPWR design files
The KiCad project lives in the evil0knight/RM_SUPERCAP_JSU repository on GitHub; these links point at the commit this page was built from.
- LayoutJSU_V2/SuperCapacitorController-master(2)/NEWSuperCapacitorController-master/hardware/SuperCap2024_Control_V1.1R_F3_ISOPWR/SuperCap2024Control_V1.1R_F3_ISOPWR.kicad_pcb
- SchematicJSU_V2/SuperCapacitorController-master(2)/NEWSuperCapacitorController-master/hardware/SuperCap2024_Control_V1.1R_F3_ISOPWR/SuperCap2024Control_V1.1R_F3_ISOPWR.kicad_sch
- BOMJSU_V2/SuperCapacitorController-master(2)/NEWSuperCapacitorController-master/hardware/SuperCap2024_Control_V1.1R_F3_ISOPWR/bom.csv
SuperCap2024Control V1.1R F3 ISOPWR: common questions
What microcontroller does the SuperCap2024Control V1.1R F3 ISOPWR use?
The SuperCap2024Control V1.1R F3 ISOPWR is built around the STM32F334R8TX, from the STM32 family.
How big is the SuperCap2024Control V1.1R F3 ISOPWR PCB?
The SuperCap2024Control V1.1R F3 ISOPWR measures 40.5 × 59.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the SuperCap2024Control V1.1R F3 ISOPWR?
141 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SuperCap2024Control V1.1R F3 ISOPWR design files?
From the evil0knight/RM_SUPERCAP_JSU repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SuperCap2024Control V1.1R F3 ISOPWR design in my own project?
The repository has no license, so all rights stay with evil0knight. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the SuperCap2024Control V1.1R F3 ISOPWR without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
