Ps1-memory card usb

fabPlane·ps1-memory-card-usb

About the Ps1-memory card usb PCB

Ps1-memory card usb is an open source RP2040/RP2350 PCB design by fabPlane, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 36.2 × 63.1 mm, with 40 components from 17 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JVSSIQ and C51118. By type, the board carries 14 capacitors, 10 connectors, 8 resistors, 3 ICs, 3 diodes and 1 crystal.

From the project

RP2040 PS1 memory card with USB-C and microSD, designed in Fabdesk

An RP2040 board shaped to fit a PlayStation memory-card shell, with native USB-C and push-push microSD storage. It targets the open-source PicoMemcard firmware pinout and was designed end-to-end in Fabdesk.

- RP2040 in QFN-56, W25Q16 16-Mbit QSPI flash, and BOOTSEL button - USB-C device port with both connector orientations wired, 5.1 kΩ CC pull-downs, and 27 Ω data termination - Push-push CS-204 microSD socket on the bottom side - Console and USB power-source isolation: console 3.3 V and regulated USB 3.3 V are Schottky diode-ORed - ABM8-272-T3 12 MHz oscillator network with 15 pF load…

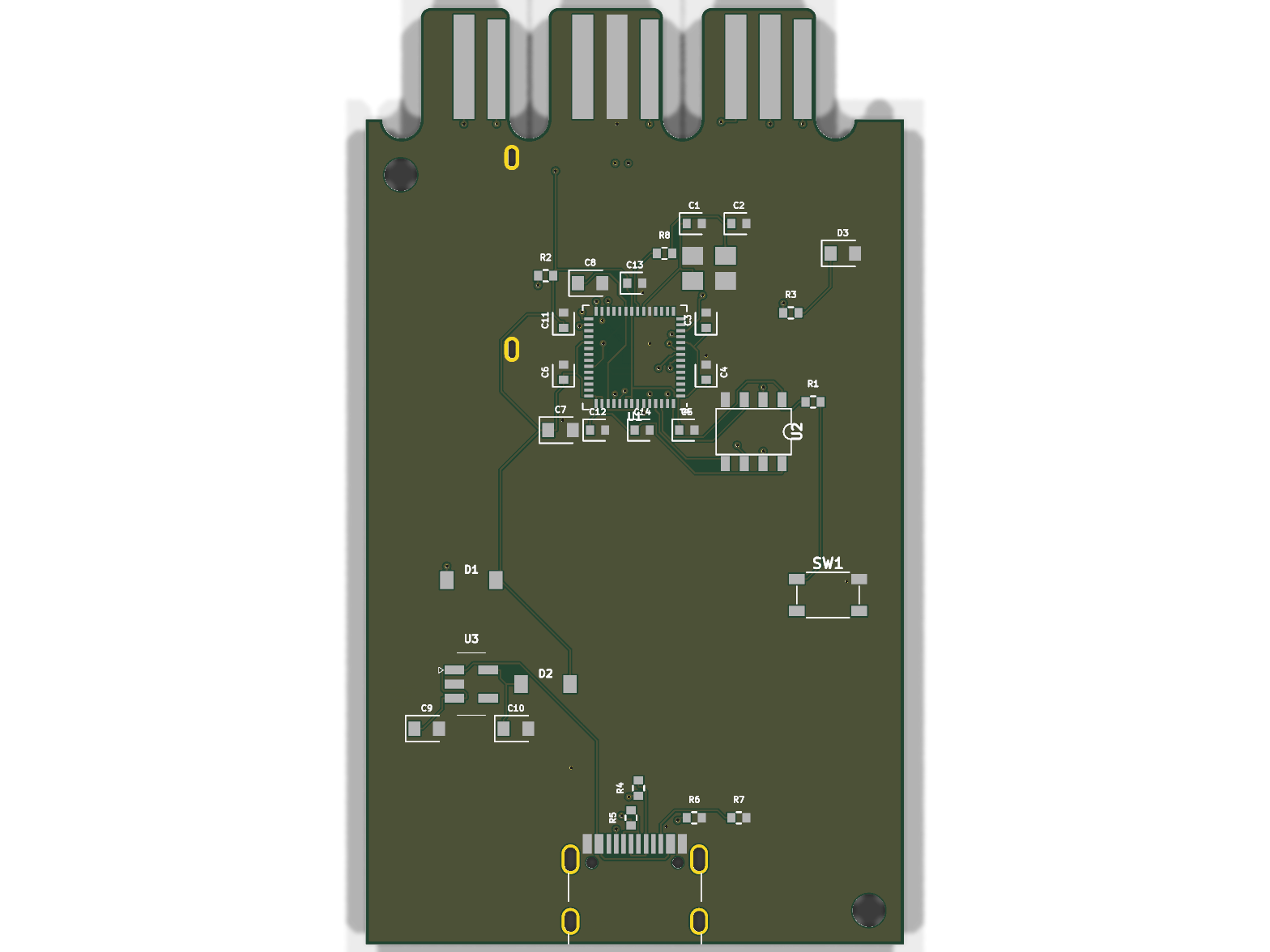

Ps1-memory card usb, from the project README — From the project README

Main components on the Ps1-memory card usb

RP2040 W25Q16JVSSIQ C51118

Ps1-memory card usb bill of materials (BOM)

40 components, 17 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040	RP2040	U1
1	W25Q16JVSSIQ	W25Q16JVSSIQ	U2
1	C51118 AP2112K-3.3TRG1	AP2112K-3_3TRG1	U3
1	ABM8-272-T3	ABM8-272-T3	Y1
8	—	chip	J1_ACK, J1_CLK, J1_CMD, J1_DAT, J1_GND, J1_NC, J1_SEL, J1_VCC
1	C165948 TYPE-C-31-M-12	TYPE-C-31-M-12	J2
1	C2149634 CS-204	CS-204	J3
1	SW1	push_button_smdpushbutton	SW1
2	SS14 D	SS14	D1, D2
1	C965799 LED	led_0603_color_green	D3
2	15PF 15pF	capacitor_cap0402	C1, C2
8	100NF 100nF	capacitor_cap0402	C3, C4, C5, C6, C11, C12, C13, C14
4	1UF 1uF	capacitor_cap0603	C7, C8, C9, C10
3	1kΩ	resistor_res0402	R1, R3, R8
1	10kΩ	resistor_res0402	R2
2	27Ω	resistor_res0402	R4, R5
2	5.1kΩ	resistor_res0402	R6, R7

Ps1-memory card usb design files

The KiCad project lives in the fabPlane/ps1-memory-card-usb repository on GitHub; these links point at the commit this page was built from.

Ps1-memory card usb: common questions

What microcontroller does the Ps1-memory card usb use?

The Ps1-memory card usb is built around the RP2040, from the RP2040/RP2350 family.

How big is the Ps1-memory card usb PCB?

The Ps1-memory card usb measures 36.2 × 63.1 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Ps1-memory card usb?

40 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ps1-memory card usb design files?

From the fabPlane/ps1-memory-card-usb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ps1-memory card usb design in my own project?

Yes, under the terms of its GPL-3.0 license, which fabPlane chose for the repository.

Can I test firmware for the Ps1-memory card usb without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
