ESC atmega8

fademike·fly_drone·kicad/ESC_atmega8/ESC_atmega8.kicad_pcb

ESC atmega8 PCB layout, top view — open source AVR/Arduino board by fademike

About the ESC atmega8 PCB

ESC atmega8 is an open source AVR/Arduino PCB design by fademike, published on GitHub. It is a 2-layer board measuring 23 × 23 mm, with 51 components from 13 distinct parts.

Its main chip is the ATmega8A-A, from the AVR/Arduino family. Other key parts include the XC6206PxxxMR. By type, the board carries 32 resistors, 9 transistors, 6 capacitors, 2 ICs and 2 diodes.

It belongs with the robotics & motion, rf & radio and sensors designs in this gallery.

From the project

scheme, pcb, code for drone

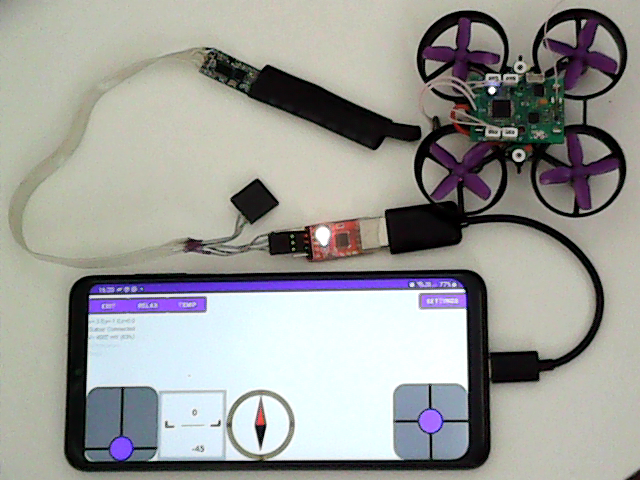

How to connect: Android phone (AppFlyControl) usb-uart(example: cp2102) uart->rf (STM8S003ANDSI4463) flydrone or: Android phone (QGroundControl or AppFlyControl) Linux PC (flyLinuxServer) uart->rf (STM8S003ANDSI4463) flydrone

on board: - DC-DC for 2,3,..S battery operation. To operate on a 1S battery, it is necessary to replace the components to turn off the DC-DC. - RF SI4463 433MHz radio transceiver. when changing the frequency, you can to change components and programmatically set a different frequency. - imu mpu6050 - 4pcs 3-pin connector for servo motor/ESC (IMP 1-2 ms) for 4pcs brushed…

ESC atmega8, from the project README
From the project README

Main components on the ESC atmega8

ATmega8A-AXC6206PxxxMR

ESC atmega8 bill of materials (BOM)

51 components, 13 distinct parts.

QtyPartRefs
1
ATmega8A-A
U1
1
XC6206PxxxMR
U2
3
2N7002
Q1, Q2, Q3
3
FDS9435A
Q4, Q6, Q8
3
FDS6630A
Q5, Q7, Q9
1
BAT48JFILM
D1
1
LED
D2
1
C_Polarized
C1
5
0.1u
C2, C3, C4, C5, C6
9
10k
R1, R15, R16, R18, R19, R20, R30, R31 +1
9
33k
R2, R3, R4, R5, R6, R7, R8, R10 +1
3
12k
R9, R11, R13
11
100
R14, R17, R21, R22, R23, R24, R25, R26 +3

ESC atmega8 design files

The KiCad project lives in the fademike/fly_drone repository on GitHub; these links point at the commit this page was built from.

ESC atmega8: common questions

What microcontroller does the ESC atmega8 use?

The ESC atmega8 is built around the ATmega8A-A, from the AVR/Arduino family.

How big is the ESC atmega8 PCB?

The ESC atmega8 measures 23 × 23 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESC atmega8?

51 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESC atmega8 design files?

From the fademike/fly_drone repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESC atmega8 design in my own project?

The repository has no license, so all rights stay with fademike. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESC atmega8 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
