Wio-SX1262 for XIAO nRF52840

feastorg·KiCad-Master-Lib·vendor/OPL_Kicad_Library/Seeed Studio Wio SX1262 for XIAO nRF52840 v1.3/Wio-SX1262 for XIAO nRF52840.kicad_pcb

Wio-SX1262 for XIAO nRF52840 PCB layout, top view — open source board by feastorg

Simulate this board

About the Wio-SX1262 for XIAO nRF52840 PCB

Wio-SX1262 for XIAO nRF52840 is an open source PCB design by feastorg, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 17.8 × 21.4 mm, with 11 components from 6 distinct parts.

Other key parts include the Wio-SX1262. By type, the board carries 6 resistors, 2 connectors, 1 IC, 1 relay and 1 capacitor.

It belongs with the rf & radio designs in this gallery.

From the project

Our central library for symbols, footprints, 3D models, and design blocks in KiCad.

Dive into a world of innovation with our curated collection of hardware components straight from the electronics hub of Shenzhen, complemented by an array of parts supported by Seeed Studio. Our mission is to empower makers, developers, and hardware enthusiasts with a diverse repository that streamlines innovation and accelerates development.

The Seeed Fusion Open Parts Libraries (OPL) and the associated component libraries are provided and maintained by the Seeed Studio Fusion team and the wider community for the turnkey Seeed Fusion PCB Assembly (PCBA) Service.

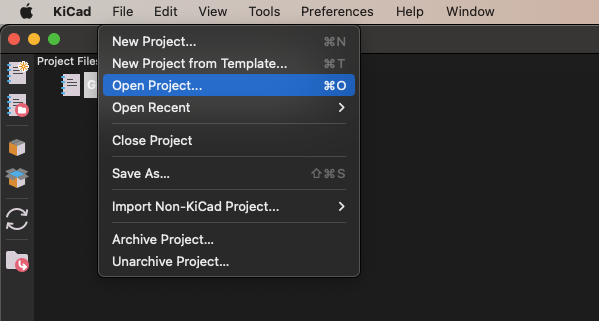

Wio-SX1262 for XIAO nRF52840, from the project README — From the project README

Main components on the Wio-SX1262 for XIAO nRF52840

Wio-SX1262 for XIAO nRF52840 bill of materials (BOM)

11 components, 6 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	Wio-SX1262 SenseCAP	MODULE12P-1.27-11X11.6MM	U1
2	Header 1x7 2.54mm	H7-2.54	J1, J2
1	TS-1188E 6C81 百斯特	SW4-SMD-7.0X3.5X3.5MM-90D	K1
1	CC0402KRX7R7BB104 100nF YAGEO	C0402	C1
2	RC0402JR-0710KL 10K YAGEO	R0402	R1, R2
4	RC0402FR-0722RL 22R YAGEO	R0402	R3, R4, R5, R6

Wio-SX1262 for XIAO nRF52840 design files

The KiCad project lives in the feastorg/KiCad-Master-Lib repository on GitHub; these links point at the commit this page was built from.

Wio-SX1262 for XIAO nRF52840: common questions

How big is the Wio-SX1262 for XIAO nRF52840 PCB?

The Wio-SX1262 for XIAO nRF52840 measures 17.8 × 21.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Wio-SX1262 for XIAO nRF52840?

11 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Wio-SX1262 for XIAO nRF52840 design files?

From the feastorg/KiCad-Master-Lib repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Wio-SX1262 for XIAO nRF52840 design in my own project?

Yes, under the terms of its CC0-1.0 license, which feastorg chose for the repository.
