Grove - Vision AI Module V2

feastorg·KiCad-Master-Lib·vendor/OPL_Kicad_Library/Grove Vision AI V2 Library/Grove - Vision AI Module V2.kicad_pcb

Grove - Vision AI Module V2 layout, top view — open source board by feastorg
Simulate this board

About the Grove - Vision AI Module V2

Grove - Vision AI Module V2 is an open source PCB design by feastorg, published on GitHub under the CC0-1.0 license. It is a 4-layer board measuring 40 × 20 mm, with 112 components from 38 distinct parts.

Other key parts include the HX6538, CH343P, WR0331-18FF4R, SY80004DQD and W25Q128JWSIQ. By type, the board carries 40 resistors, 36 capacitors, 8 diodes, 6 ICs, 5 transistors and 4 connectors.

From the project

Our central library for symbols, footprints, 3D models, and design blocks in KiCad.

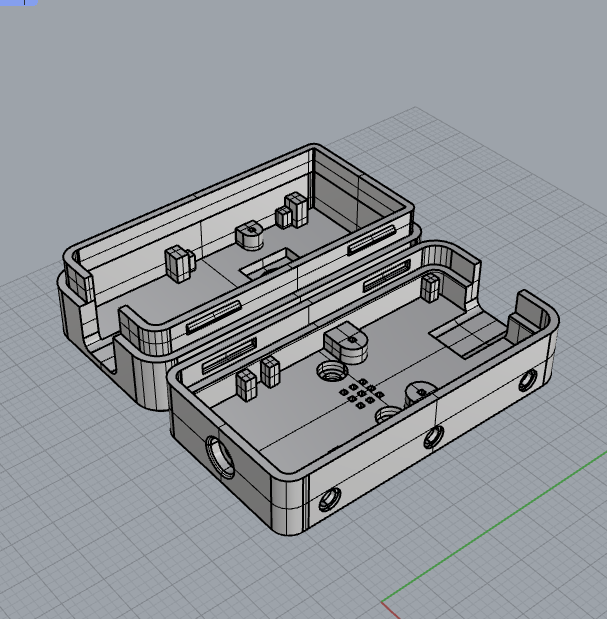

This is the library for Grove Vision AI V2 and its case.

- The case for Grove Vision AI V2 - Himax - Preparatory Work: KiCad Download and Library Download - How to add and use Seeed OPL Footprint Libraries(Grove Vision AI V2) - How to add and use Seeed OPL Symbol Libraries(Grove Vision AI V2) - Scale up Your Creation With Seeed Studio Fusion - Co-Create with Seeed Studio - Resoureces

Grove - Vision AI Module V2, from the project README
From the project README

Main components on the Grove - Vision AI Module V2

HX6538CH343PWR0331-18FF4RSY80004DQDW25Q128JWSIQ

Grove - Vision AI Module V2 bill of materials (BOM)

112 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
HX6538
U1
1
CH343P
U2
1
WR0331-18FF4R
U3
2
SY80004DQD
SILERGY
U4, U6
1
W25Q128JWSIQ
U5
1
XIAO Connector/DNP
M1
5
CJ1012
Q1, Q2, Q3, Q4, Q5
1
24MHz
X1
1
USB_C_Receptacle_USB2.0
J1
1
Conn_01x15_MountingPin
J2
1
Conn_01x04_MountingPin
J3
1
SD-TF-MR267
ST-TF-MR267
商祺电子
J5
2
SW_Push
BOOT1, RST1
1
MSM261D3526H1CPM
MIC1
3
Test Point
TP1, TP2, TP3
1
Yellow
LED1
1
Green
LED2
4
B5819WS
D1, D2, D3, D4
4
DF2S6.8FS
DNP
D5, D6, D7, D8
1
VLS201610HBX-4R7M-1
L1
Show 18 more
QtyPartRefs
2
470nH
L2, L3
5
1uF
C1, C2, C17, C18, C19
1
10nF
C3
7
4.7uF
C4, C6, C7, C9, C10, C28, C34
18
100nF
C5, C8, C13, C20, C21, C22, C23, C24 +10
2
10uF
C11, C37
2
12pF
C14, C15
1
220nF
C16
10
2.2k
R1, R4, R13, R14, R15, R19, R20, R21 +2
3
5.1k
R2, R3, R36
4
10k
R5, R7, R23, R24
4
RC0402JR-074K7L
100K
YAGEO
R6, R16, R32, R33
3
RC0402JR-074K7L
10K
YAGEO
R8, R31, R38
7
DNP
R9, R12, R17, R18, R25, R27, R28
3
100k
R10, R11, R37
2
RC0402JR-074K7L
22K
YAGEO
R26, R34
3
0R
R29, R30, R39
1
510k
R35

Grove - Vision AI Module V2 design files

The KiCad project lives in the feastorg/KiCad-Master-Lib repository on GitHub; these links point at the commit this page was built from.

Grove - Vision AI Module V2: common questions

How big is the Grove - Vision AI Module V2?

The Grove - Vision AI Module V2 measures 40 × 20 mm, has 4 copper layers and is 1.1962 mm thick.

How many components are on the Grove - Vision AI Module V2?

112 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Grove - Vision AI Module V2 design files?

From the feastorg/KiCad-Master-Lib repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Grove - Vision AI Module V2 design in my own project?

Yes, under the terms of its CC0-1.0 license, which feastorg chose for the repository.
