About the SlideScanner PCB
SlideScanner is an open source PCB design by filmolino, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50 × 50 mm, with 37 components from 22 distinct parts.
Other key parts include the AQY212GSZ, AQY212SX (550mA) and SN74LVC1G14DBV. By type, the board carries 14 resistors, 5 ICs, 5 connectors, 4 transistors, 4 diodes and 3 capacitors.
It belongs with the iot & wireless and power & battery designs in this gallery.
From the project

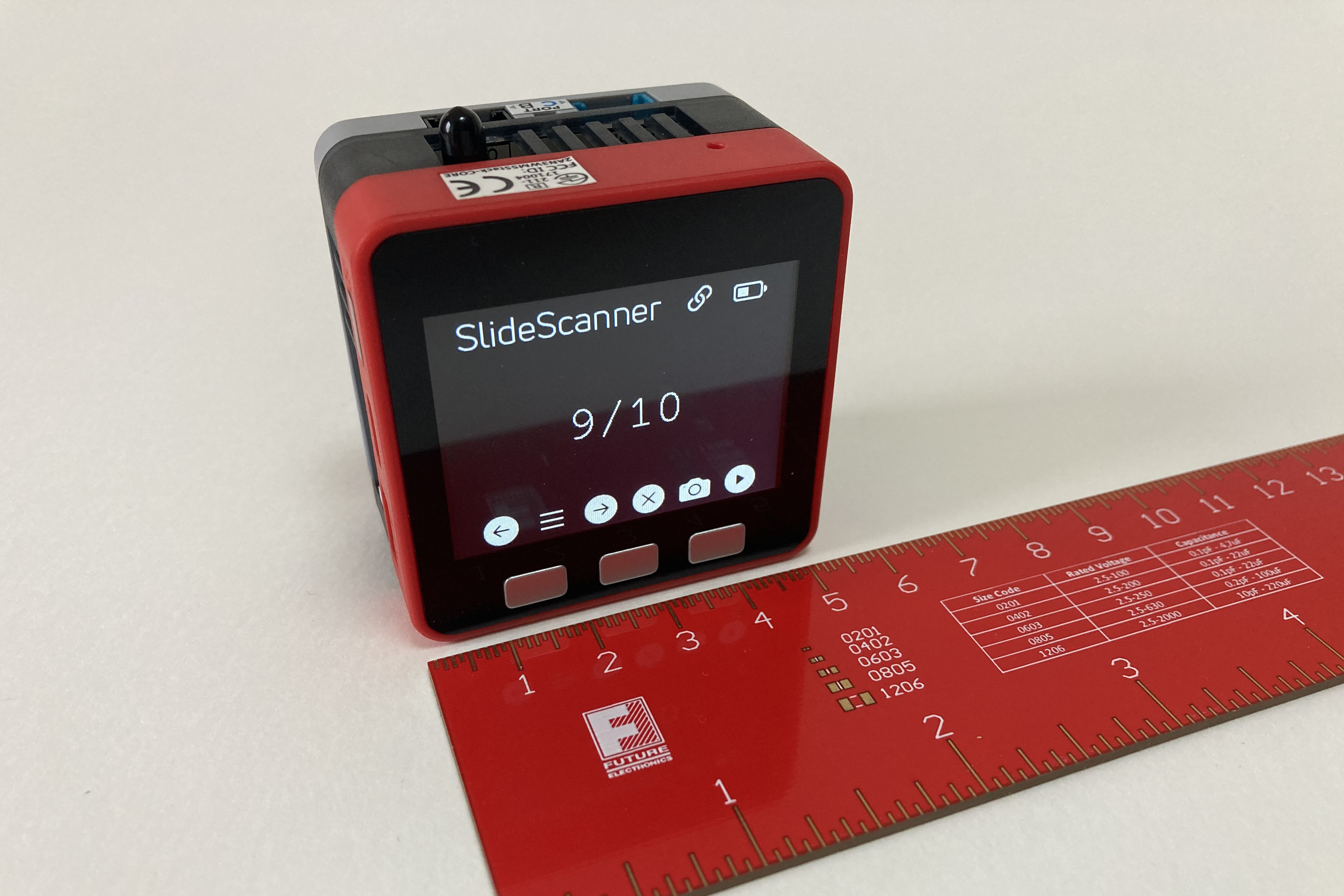

The Filmolino SlideScanner is a device that makes it easy to scan slides in magazines fully automated using a modified slide projector and a digital camera.
Thanks to the M5StampC3 from M5Stack using a ESP-32 core together with 16M Flash, 8M PSRAM and a built in 3.7V/500mAh Lithium battery it is also possible to use the device without a power supply and remote control the SlideScanner through a web interface over WiFi. The scanner has it's own access point to which you can connect.
The Filmolino SlideScanner is completely open source, so you can easy build your own!

Main components on the SlideScanner
SlideScanner bill of materials (BOM)
37 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AQY212GSZ | SOP-4_4.4x4.3mm_P2.54mm | U1, U2 |
| 2 | AQY212SX (550mA) | SOP-4_4.4x4.3mm_P2.54mm | U3, U4 |
| 1 | SN74LVC1G14DBV | SOT-23-5 | U5 |
| 3 | BSS138 | SOT-23 | Q1, Q2, Q3 |
| 1 | BP103B | LED_D5.0mm_Horizontal_O1.27mm_Z3.0mm | Q4 |
| 3 | Grove 90° | Grove_Con_1x04_2mm_horizontal | J1, J2, J5 |
| 1 | CONN_02X15_ODD_EVEN Conn_02x15_Odd_Even | PinHeader_2x15_P2.54mm_Holes0.75mm_Vertical | J3 |
| 1 | AUDIOJACK3 AudioJack3 | Jack_2.5mm_Lumberg_1501_04 | J4 |
| 1 | 0ZCG0020AF2C | BelFuse_0ZCG_Metric_Pad1.78x3.50mm | F1 |
| 1 | 0ZCF0075AF2C | BelFuse_0ZCF_Metric_Pad2.30x5.60mm | F2 |
| 2 | BAS21 | SOT-23 | D1, D2 |
| 1 | SFH4544 | LED_D5.0mm_Horizontal_O1.27mm_Z3.0mm | D3 |
| 1 | BZX84C3V6 | SOT-23 | D4 |
| 2 | 10U/10V 10u/10V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2 |
| 1 | 100N/50V 100n/50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 4 | 180R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R3, R6, R7 |
| 1 | 0R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 3 | 10K 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4, R8, R11 |
| 3 | 1M | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R9, R13 |
| 1 | 39R | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R10 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R12 |
| 1 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R14 |
SlideScanner design files
The KiCad project lives in the filmolino/SlideScanner repository on GitHub; these links point at the commit this page was built from.
SlideScanner: common questions
How big is the SlideScanner PCB?
The SlideScanner measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SlideScanner?
37 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SlideScanner design files?
From the filmolino/SlideScanner repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SlideScanner design in my own project?
Yes, under the terms of its GPL-3.0 license, which filmolino chose for the repository.
