Z parts PCB layout, top view — open source board by fl4p
Simulate this board

About the Z parts PCB

Z parts is an open source PCB design by fl4p, published on GitHub. It is a 2-layer board measuring 20.7 × 30.2 mm, with 14 components from 8 distinct parts.

Other key parts include the INA226AIDGSR and ADS333. By type, the board carries 8 resistors, 4 capacitors and 2 ICs.

It belongs with the power & battery designs in this gallery.

From the project

Links: git | kicanvas | cadlab | docs | pdf schematics | IBOM (TODO) | firmware | additional docs & resources

Links: git | kicanvas | cadlab | docs | pdf schematics | IBOM (TODO) | firmware | additional docs & resources

Solar input voltage: 12 ~ 80V (higher voltage configurations possible, please create an issue if you need help with component selection) Battery output voltage: 12 ~ 60V (LiFePo4 4s ~ 16s) Max output current: 32 A Boost operation with input and output terminals swapped Efficiency Measurements Vin=72 Vout=27 Iout=32A: 98.17% (measured with INA228 & Riedon SSA-100, smart-shunt) * Vin=71.5 Vout=27.1 Iout=29.1A: 98.12% (measured with INA228, Riedon RSN20-50, DCCT DS200ID, details)

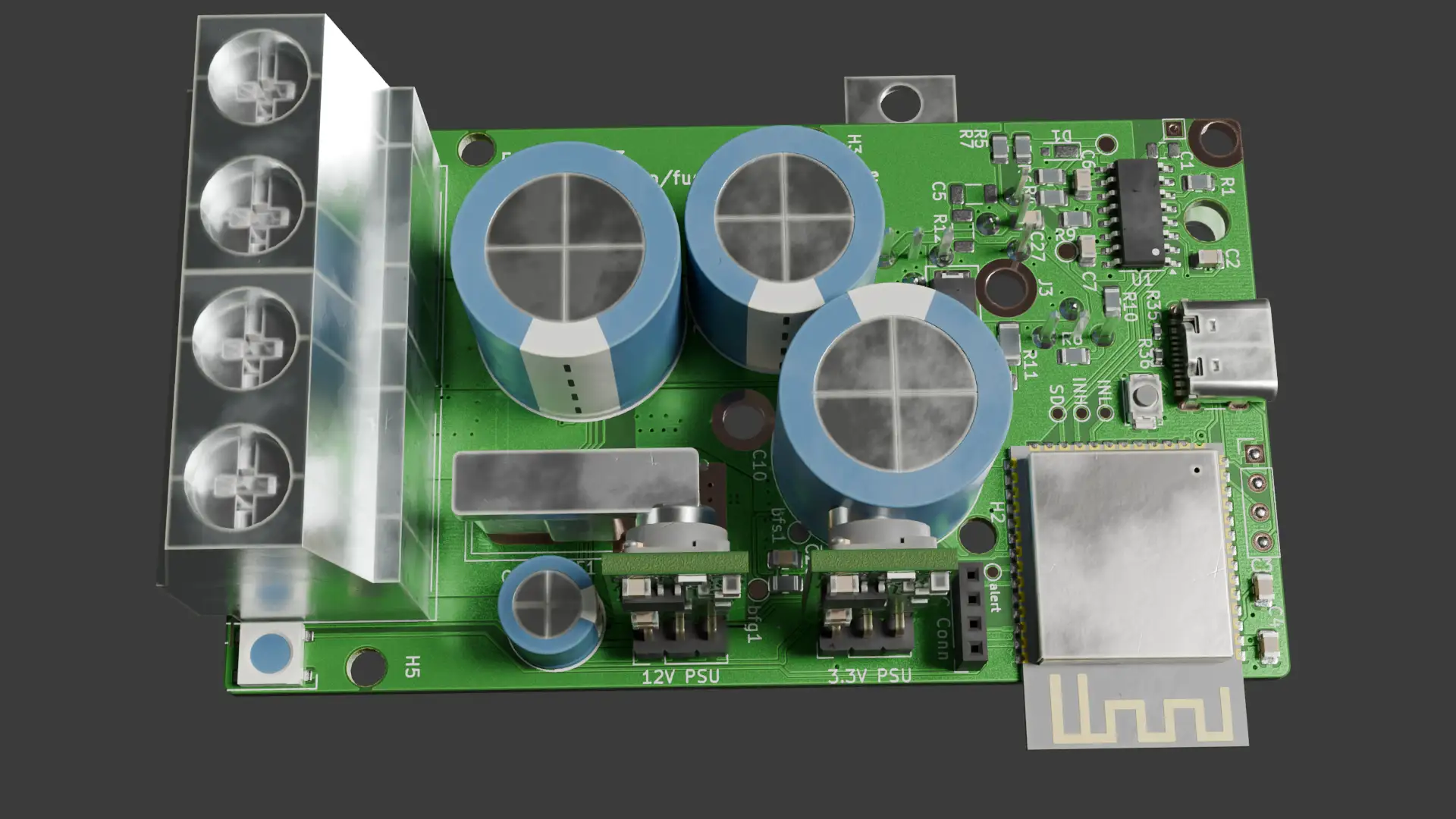

Z parts, from the project README
From the project README

Main components on the Z parts

INA226AIDGSRADS333

Z parts bill of materials (BOM)

14 components, 8 distinct parts — part numbers from the project's BOM.
