Pmod bme280
About the Pmod bme280 PCB
Pmod bme280 is an open source PCB design by fm4dd, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 41 × 20.3 mm, with 12 components from 9 distinct parts.
Other key parts include the BME280. By type, the board carries 3 capacitors, 2 connectors, 2 switches, 2 test points, 2 resistors and 1 IC.
It belongs with the sensors designs in this gallery.
From the project
PMOD module for the Bosch BME280 Temperature Humidity Pressure Sensor, connection over I2C.

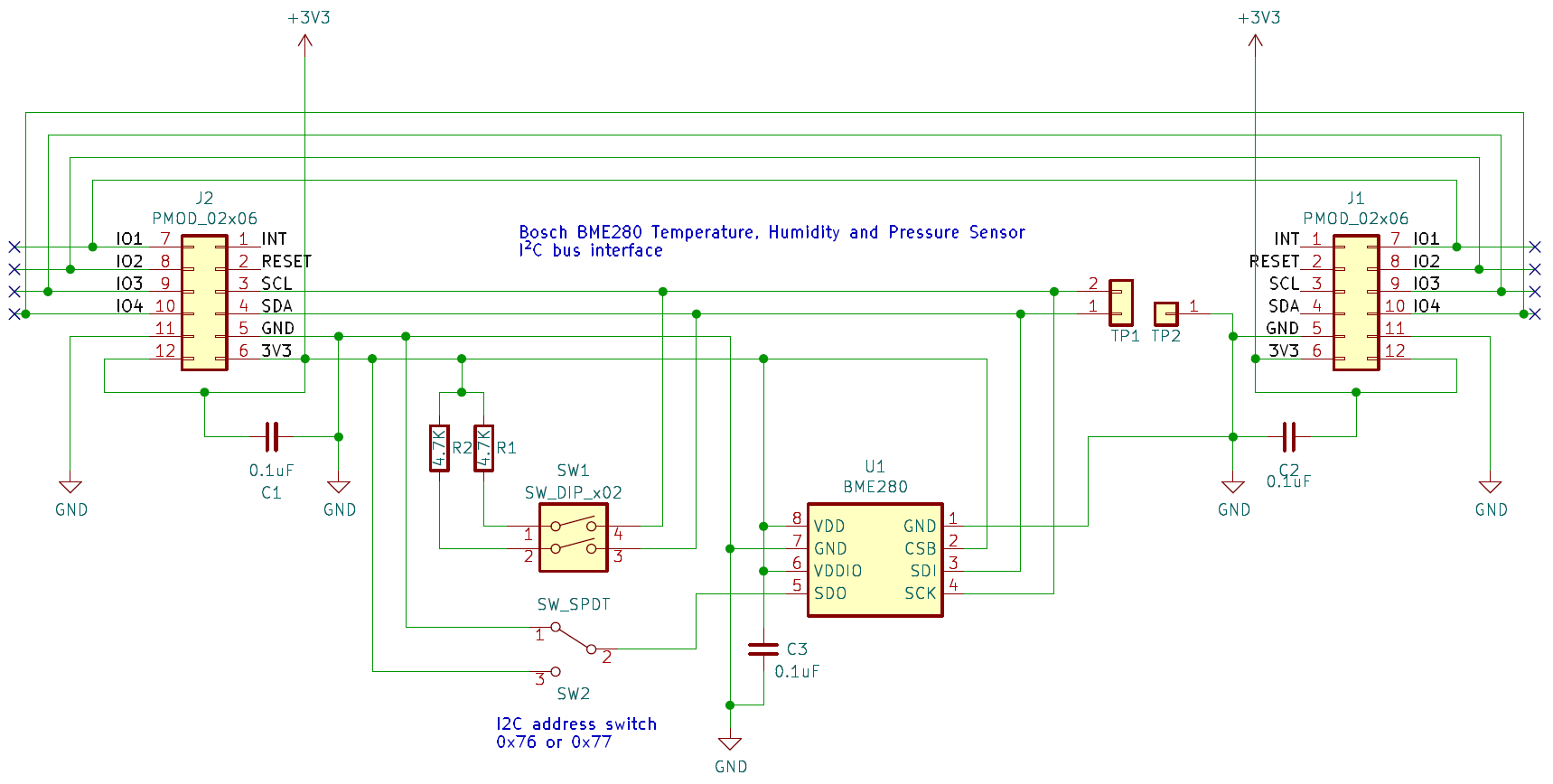

This PMOD connects the Bosch BME280 humidity, pressure and temperature sensor over I2C, using Digilent's PMOD interface type 6A per PMOD specification v1.3.1. The PMOD module can be chained to add additional I2C devices to the bus. The I2C pull-up resistors can be enabled/disabled using DIP switches, and switch 2 toggles the sensors I2C address between 0x76 and 0x77.
Main components on the Pmod bme280
Pmod bme280 bill of materials (BOM)
12 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BME280 | Bosch_LGA-8_2.5x2.5mm_P0.65mm_ClockwisePinNumbering | U1 |
| 1 | PMOD_02x06 | PMODPinSocket_2x06_P2.54mm_Horizontal | J1 |
| 1 | PMOD_02x06 | PMODHeader_2x06_P2.54mm_Horizontal | J2 |
| 1 | SW_DIP_x02 | SW_DIP_SPSTx02_Slide_6.7x6.64mm_W7.62mm_P2.54mm_LowProfile | SW1 |
| 1 | SW_SPDT | SW_SPDT_XKB-SS-3292S | SW2 |
| 1 | Conn_01x02 | Testpoint_PinHeader_1x02_P2.54mm_Vertical | TP1 |
| 1 | TestPoint_Conn_01x01 | TestPoint_PinHeader_1x01_P2.54mm_Vertical | TP2 |
| 3 | 100NF 0.1uF | C_0402_1005Metric | C1, C2, C3 |
| 2 | 4.7K | R_0603_1608Metric | R1, R2 |
Pmod bme280 design files
The KiCad project lives in the fm4dd/pmod-bme280 repository on GitHub; these links point at the commit this page was built from.
Pmod bme280: common questions
How big is the Pmod bme280 PCB?
The Pmod bme280 measures 41 × 20.3 mm, has 2 copper layers and is 0.8 mm thick.
How many components are on the Pmod bme280?
12 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pmod bme280 design files?
From the fm4dd/pmod-bme280 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pmod bme280 design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which fm4dd chose for the repository.
